Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

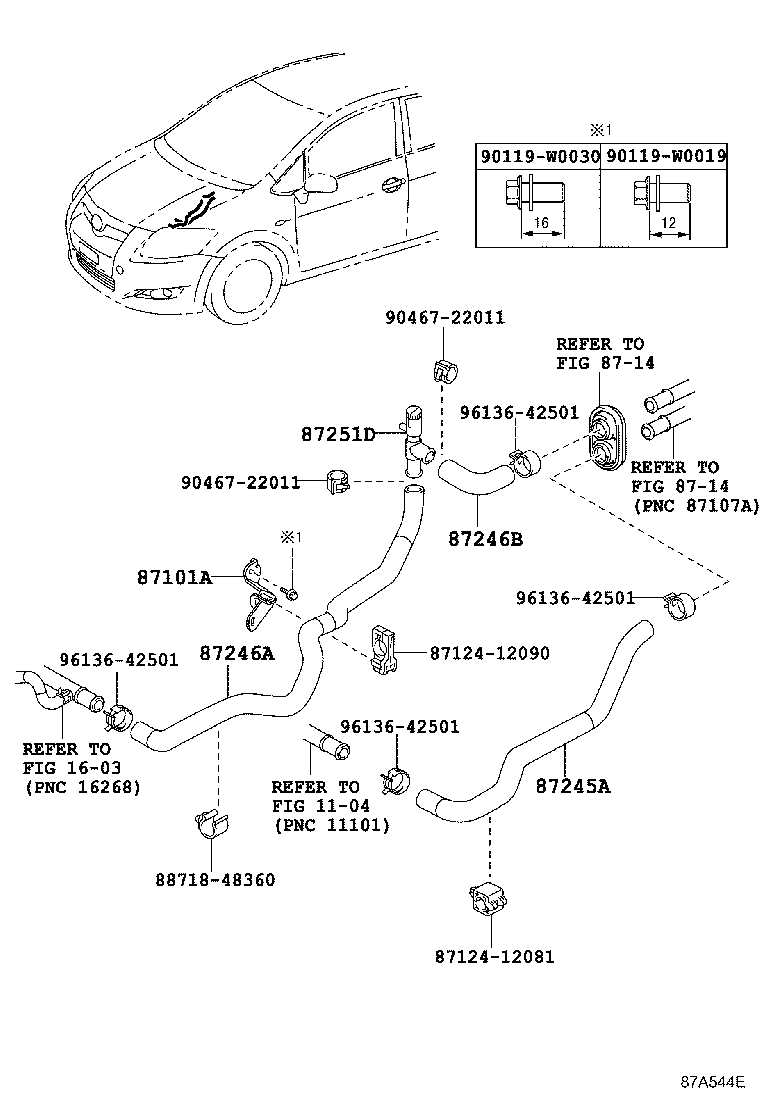

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87101A — Bracket Sub-assy, Heater NO.1 | ||||
| 87101-02110 |
Bracket Sub-assy, Heater NO.1
2008-11 → 2010-01
ended
|
NRE150 | — | |
| 87101-02110 |
Bracket Sub-assy, Heater NO.1
2009-12 → —
|
NRE150 TERRA | — | |
| 87245A — Hose, Heater Water, Inlet A | ||||
| 87245-02A10 |
Hose, Heater Water, Inlet A
2007-06 → 2009-02
ended
|
ZRE15# | — | |
| 87245-02A30 |
Hose, Heater Water, Inlet A
2007-06 → 2008-11
ended
|
ZZE150 | — | |
| 87245-02A80 |
Hose, Heater Water, Inlet A
2007-06 → 2009-03
ended
|
ADE150 | — | |
| 87245-02640 |
Hose, Heater Water, Inlet A
2008-11 → 2010-01
ended
|
NRE150 | — | |
| 87245-02A10 |
Hose, Heater Water, Inlet A
2009-02 → 2010-01
ended
|
ZRE15# RS,RT,RX | — | |
| 87245-05711 |
Hose, Heater Water, Inlet A
2009-03 → 2010-01
ended
|
ADE150 | — | |
| 87245-02640 |
Hose, Heater Water, Inlet A
2009-12 → —
|
NRE150 TERRA | — | |
| 87245-02A10 |
Hose, Heater Water, Inlet A
2009-12 → 2012-07
ended
|
ZRE151 SOL,TERRA | — | |
| 87245-02P00 |
Hose, Heater Water, Inlet A
2012-08 → —
|
ZRE151 | — | |
| 87245-05711 |
Hose, Heater Water, Inlet A
2009-12 → —
|
ADE150 RX | — | |
| 87246A — Hose, Heater Water, Outlet A | ||||
| 87245-02A20 |
Hose, Heater Water, Outlet A
2007-06 → 2009-02
ended
|
ZRE15# | — | |
| 87245-02A40 |
Hose, Heater Water, Outlet A
2007-06 → 2008-11
ended
|
ZZE150 | — | |
| 87245-02A90 |
Hose, Heater Water, Outlet A
2007-06 → 2009-03
ended
|
ADE150 | — | |
| 87245-02870 |
Hose, Heater Water, Outlet A
2008-11 → 2010-01
ended
|
NRE150 | — | |
| 87245-02A20 |
Hose, Heater Water, Outlet A
2009-02 → 2010-01
ended
|
ZRE15# RS,RT,RX | — | |
| 87245-02A91 |
Hose, Heater Water, Outlet A
2009-03 → 2010-01
ended
|
ADE150 | — | |
| 87245-02870 |
Hose, Heater Water, Outlet A
2009-12 → —
|
NRE150 TERRA | — | |
| 87245-02A20 |
Hose, Heater Water, Outlet A
2009-12 → —
|
ZRE151 SOL,TERRA | — | |
| 87245-02A91 |
Hose, Heater Water, Outlet A
2009-12 → 2011-10
ended
|
ADE150 RX | — | |
| 87245-02A92 |
Hose, Heater Water, Outlet A
2011-10 → —
|
ADE150 | — | |
| 87246B — Hose, Heater Water, Outlet B | ||||
| 87245-02G00 |
Hose, Heater Water, Outlet B
2008-11 → 2010-01
ended
|
NRE150 | — | |
| 87245-02G00 |
Hose, Heater Water, Outlet B
2009-12 → —
|
NRE150 TERRA | — | |
| 87251D — Joint, Water, NO.1 | ||||
| 87251-12040 |
Joint, Water, NO.1
2008-11 → 2010-01
ended
|
NRE150 | — | |
| 87251-12040 |
Joint, Water, NO.1
2009-12 → —
|
NRE150 TERRA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
