Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

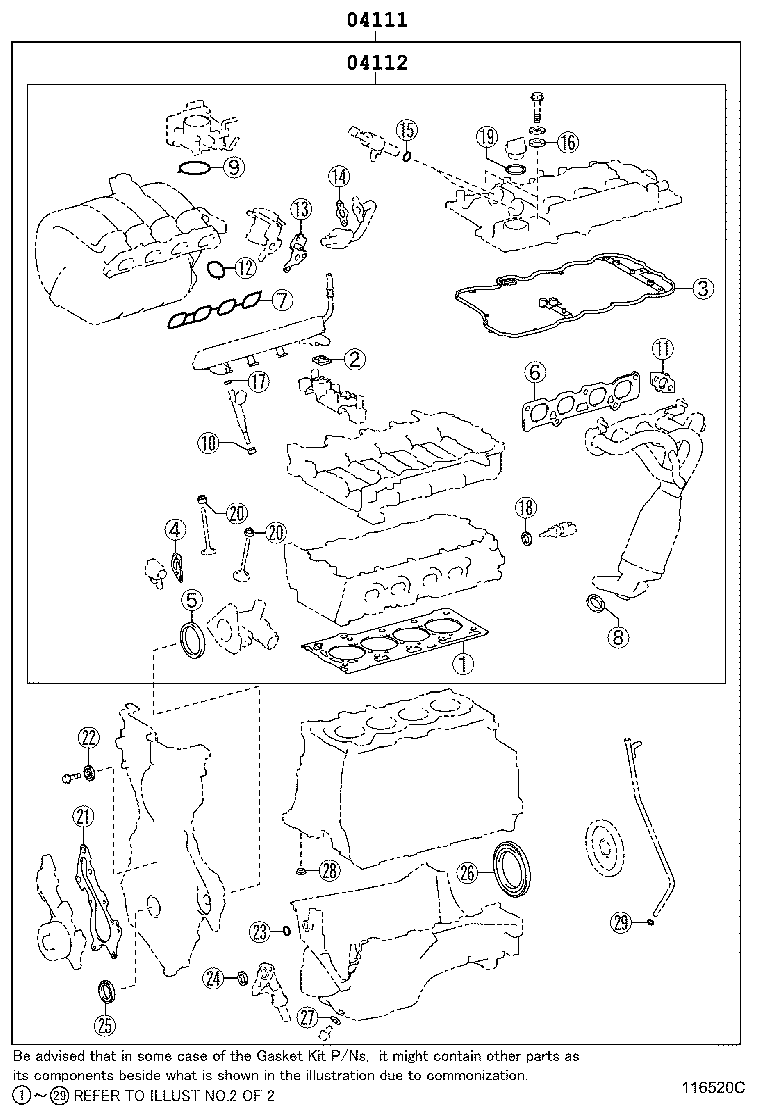

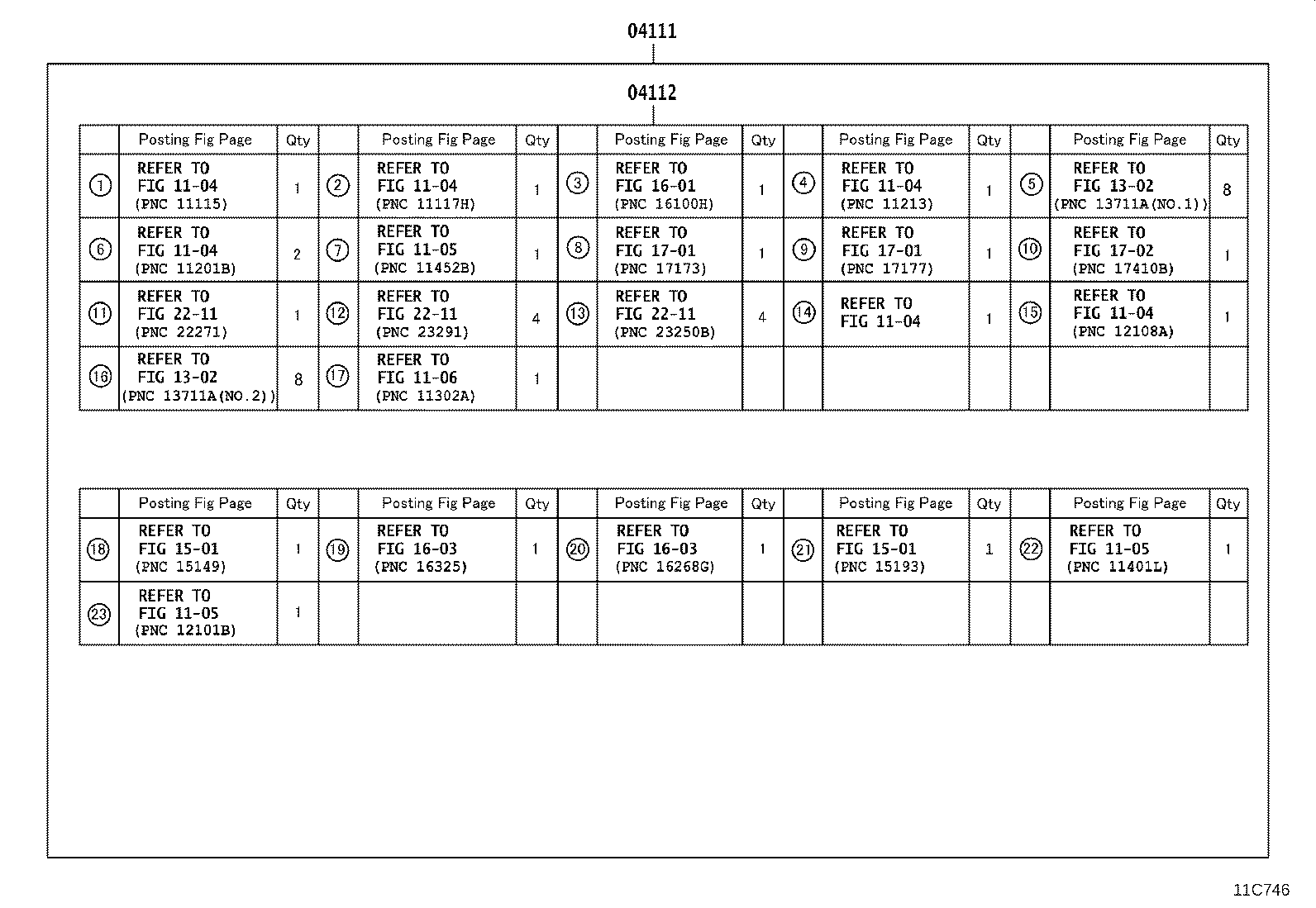

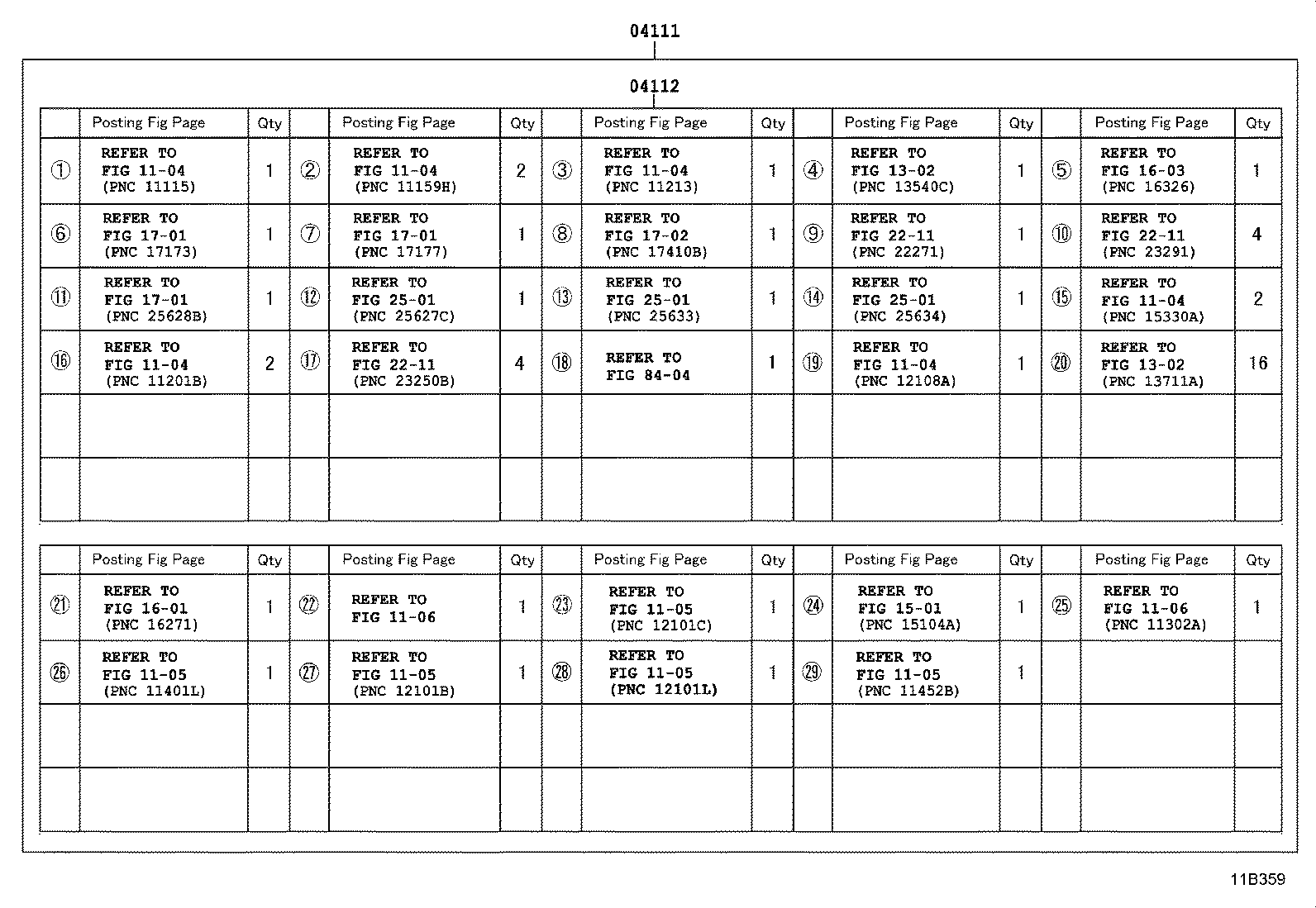

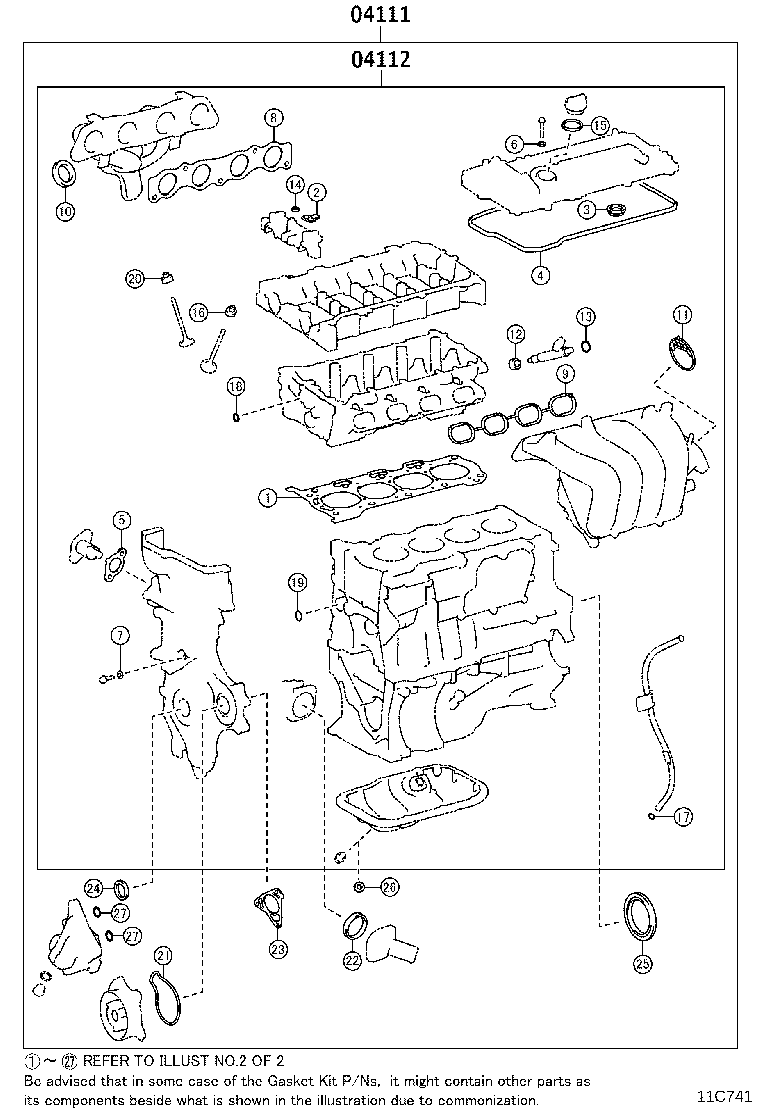

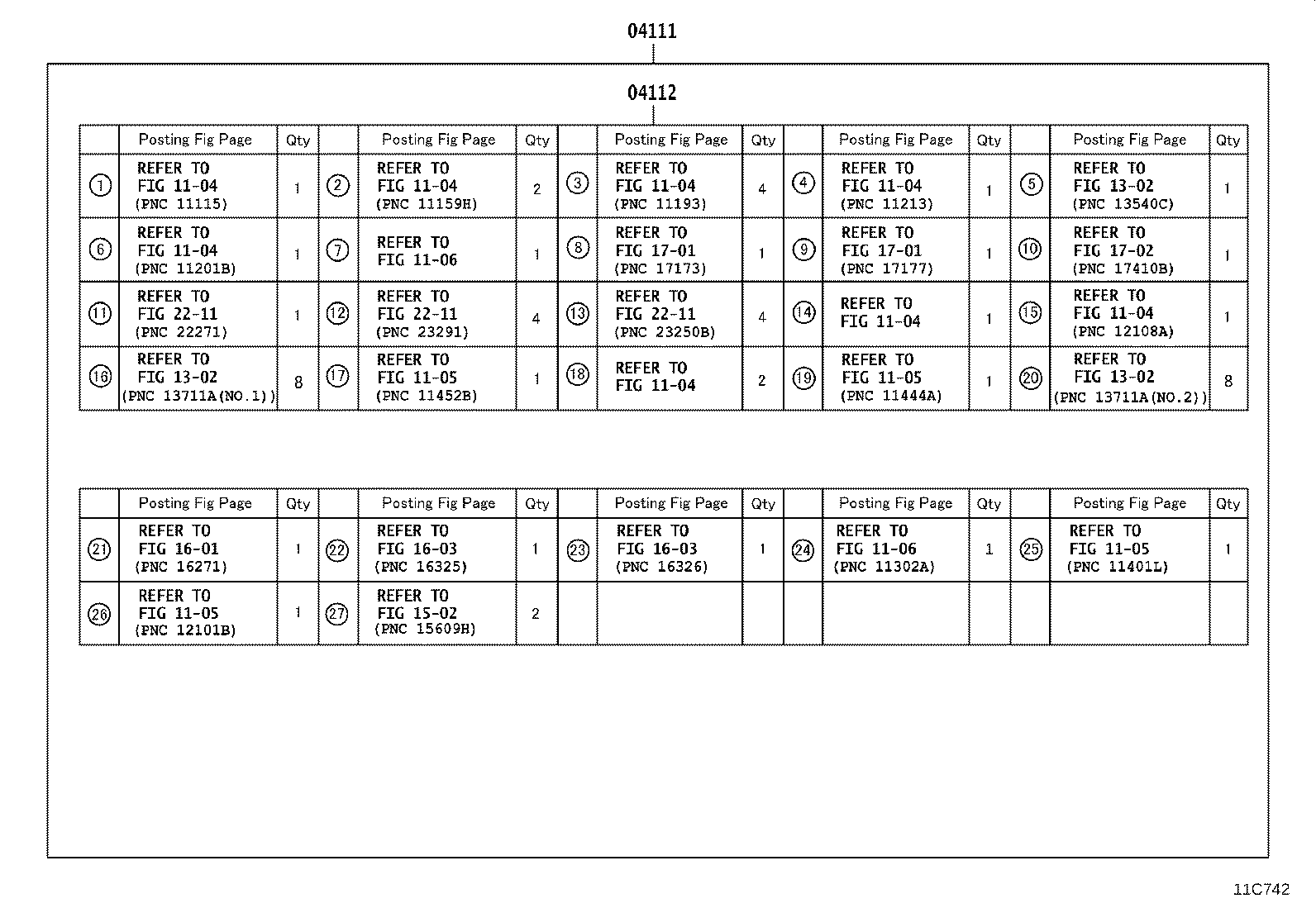

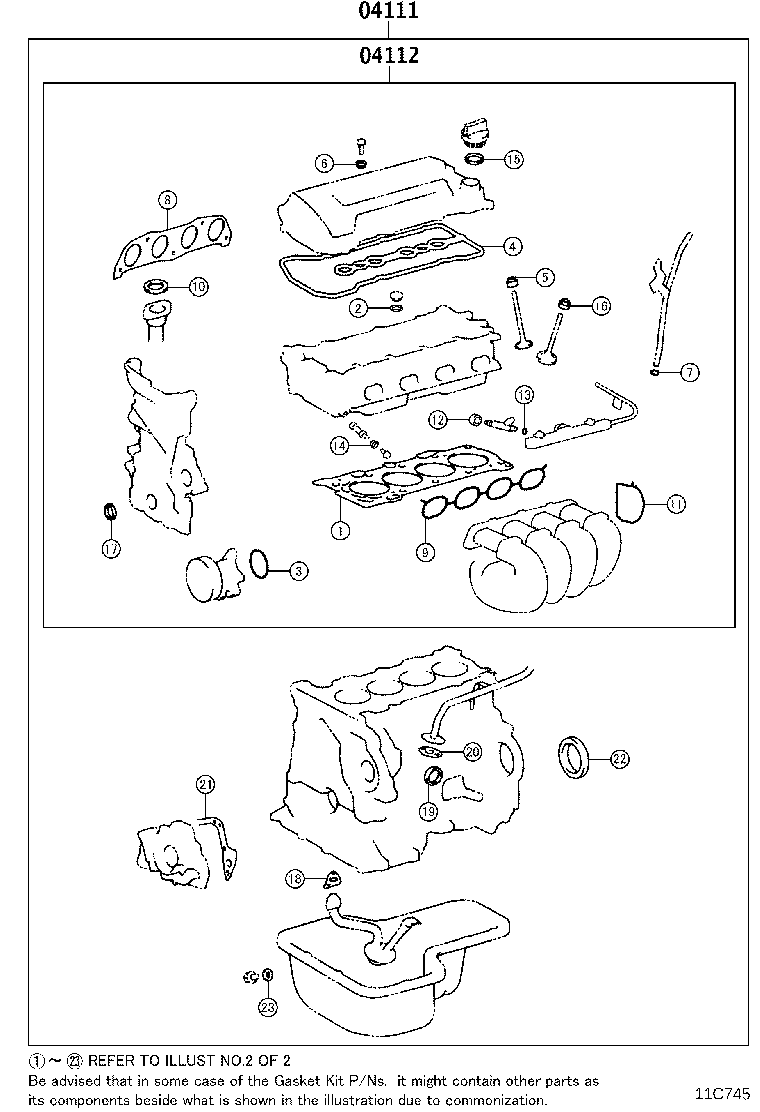

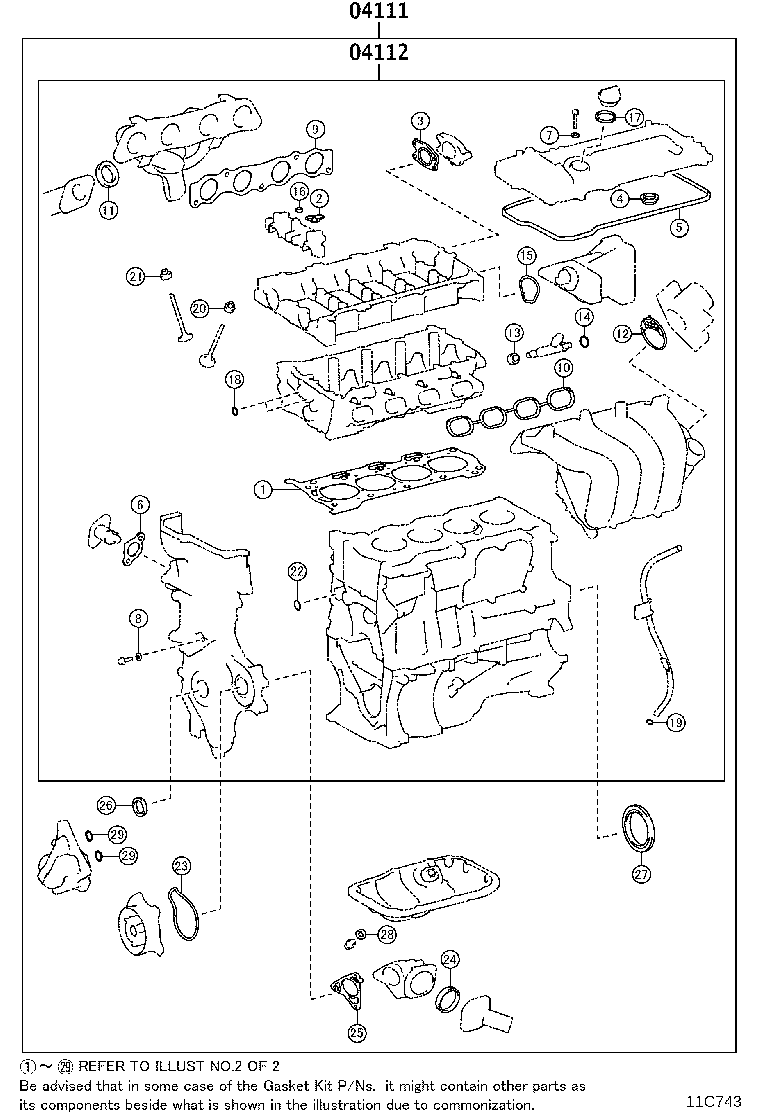

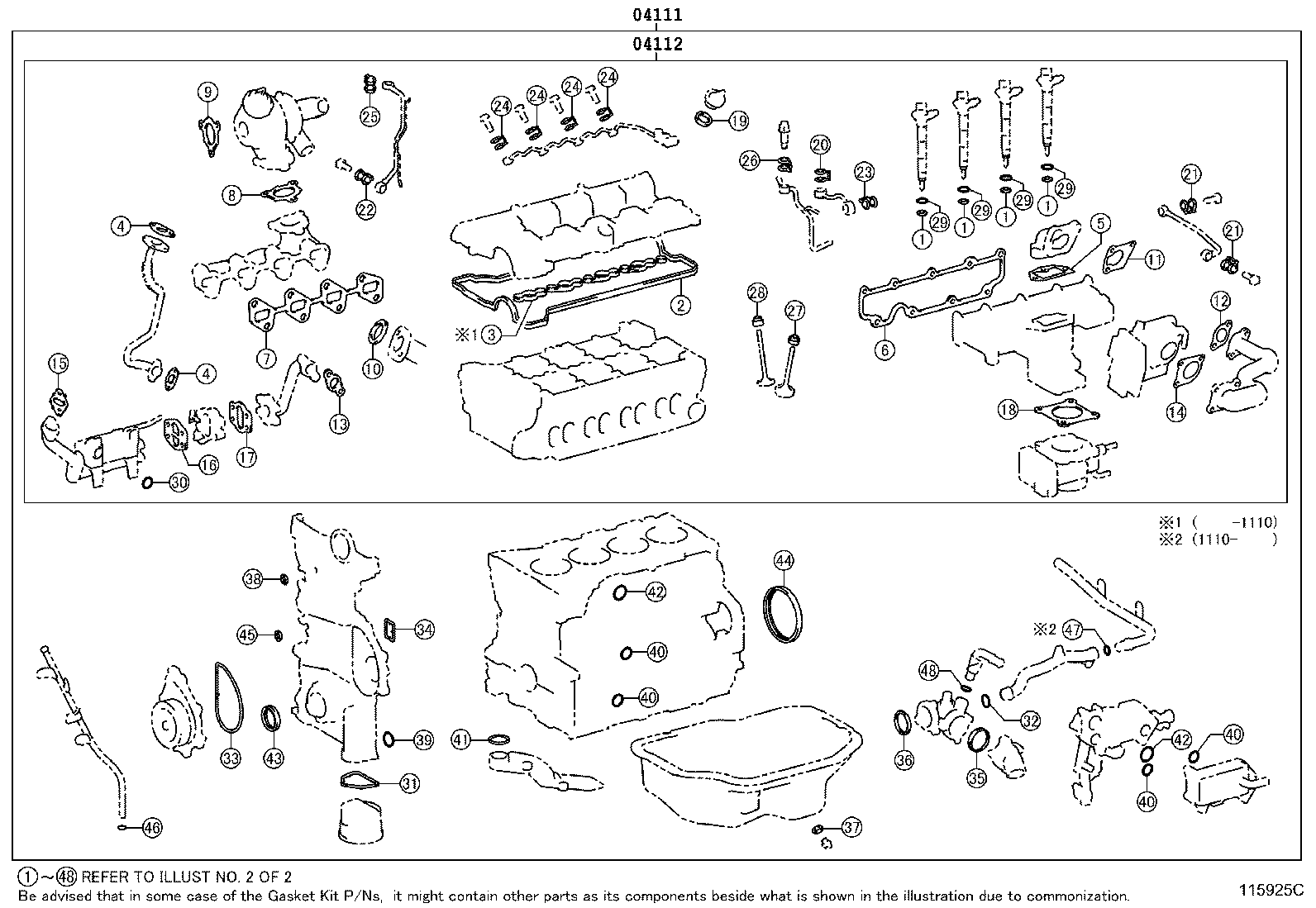

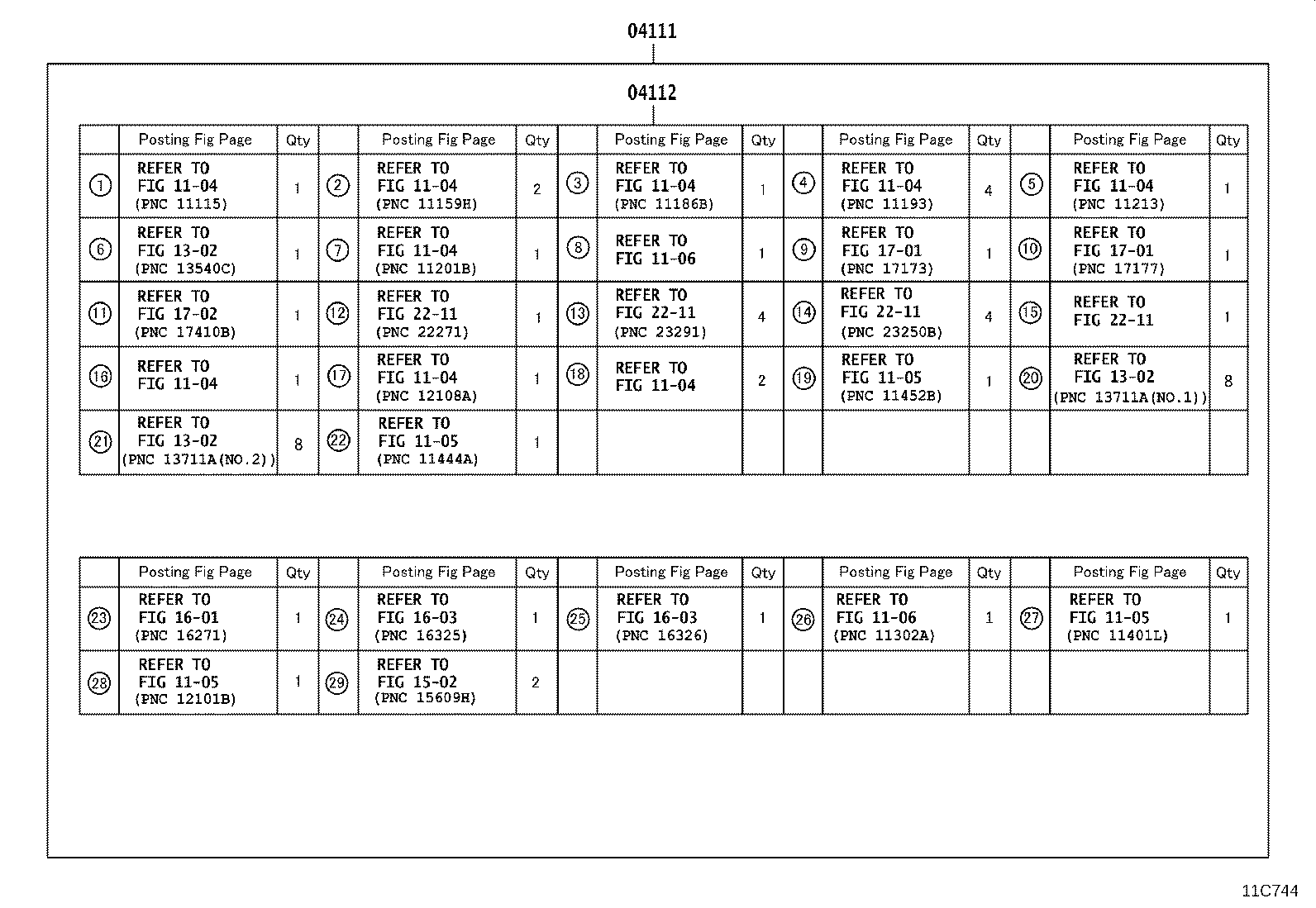

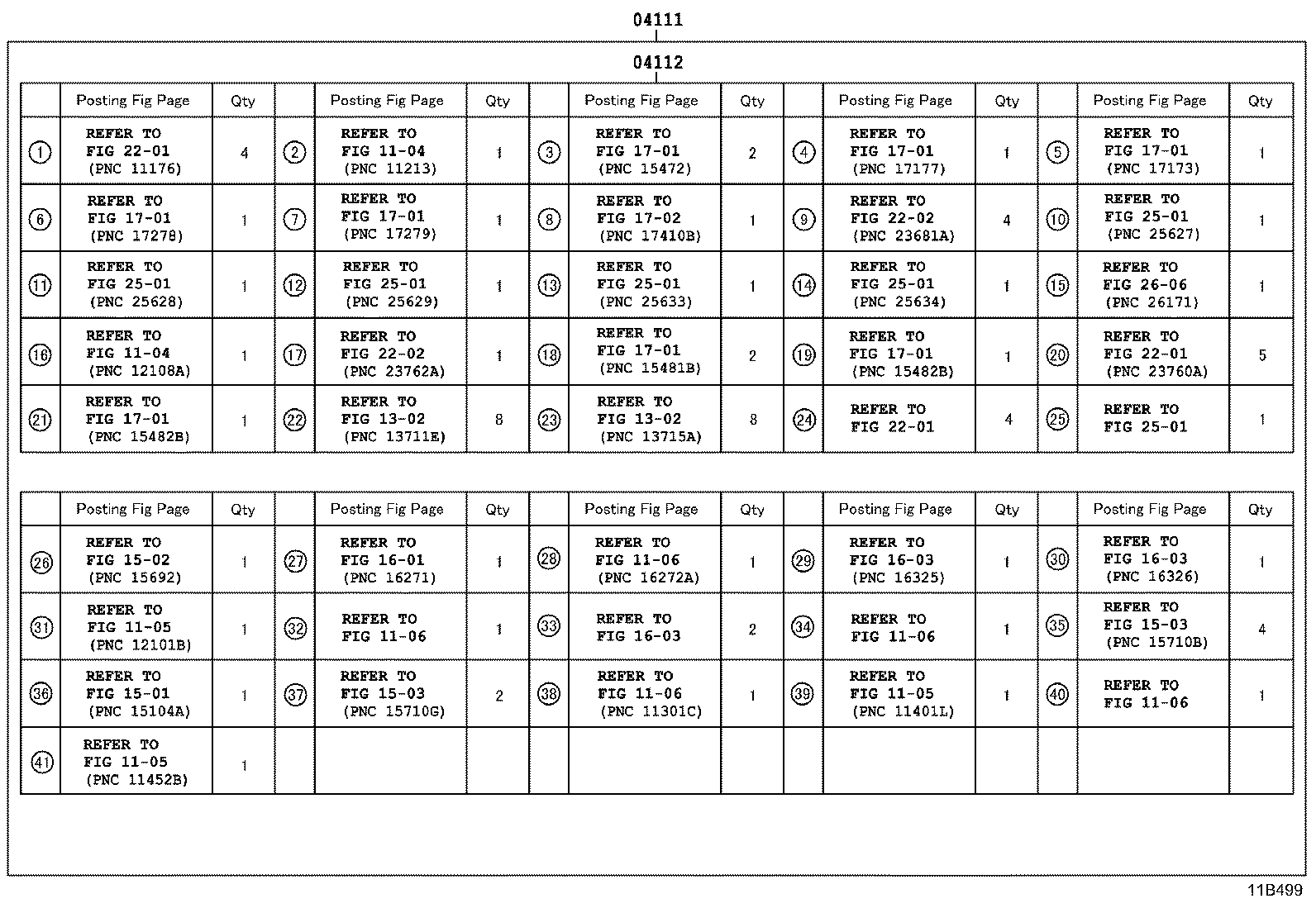

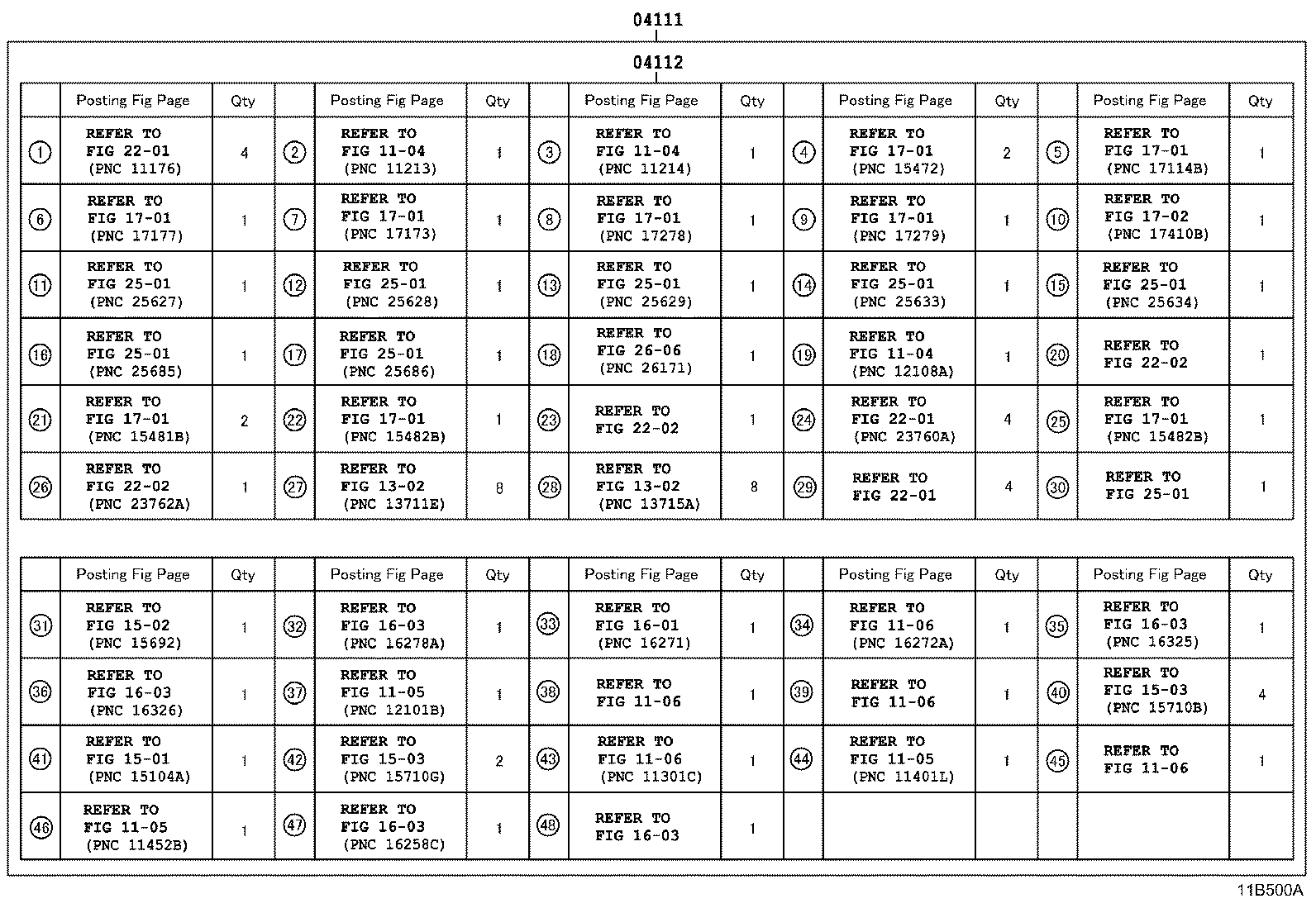

Figure 114820A 114820A 2007-06 → 2009-03 Figure 115925C 115925C 2009-03 → — Figure 11B499 11B499 2007-06 → 2009-03 Figure 11B500A 11B500A 2009-03 → — Figure 116520C 116520C 2008-11 → — Figure 11B359 11B359 2008-11 → — Figure 11C741 11C741 2007-06 → 2010-01 Figure 11C742 11C742 2007-06 → 2010-01 Figure 11C743 11C743 2009-02 → — Figure 11C744 11C744 2009-02 → — Figure 11C745 11C745 2007-06 → 2008-11 Figure 11C746 11C746 2007-06 → 2008-11

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
