Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

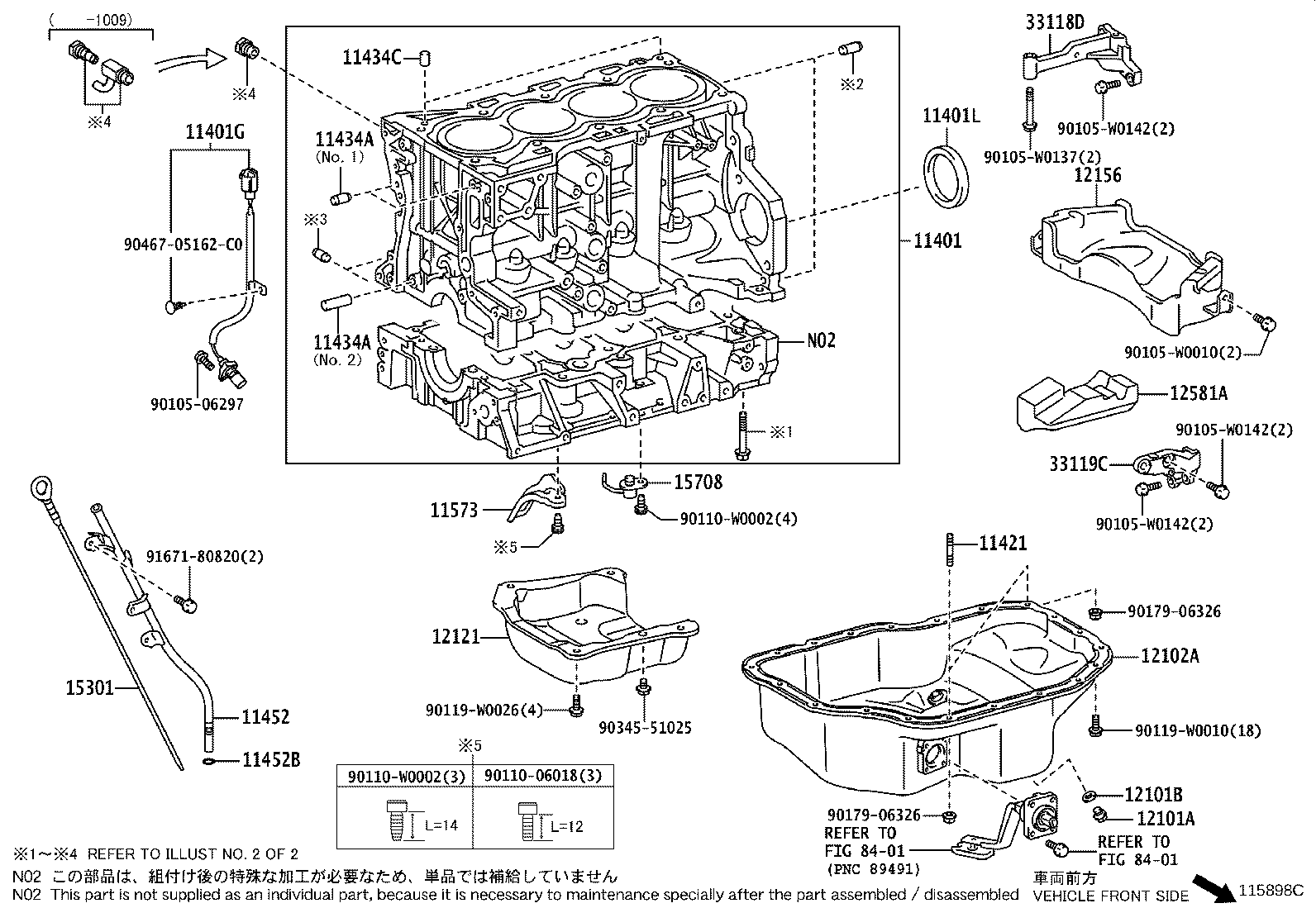

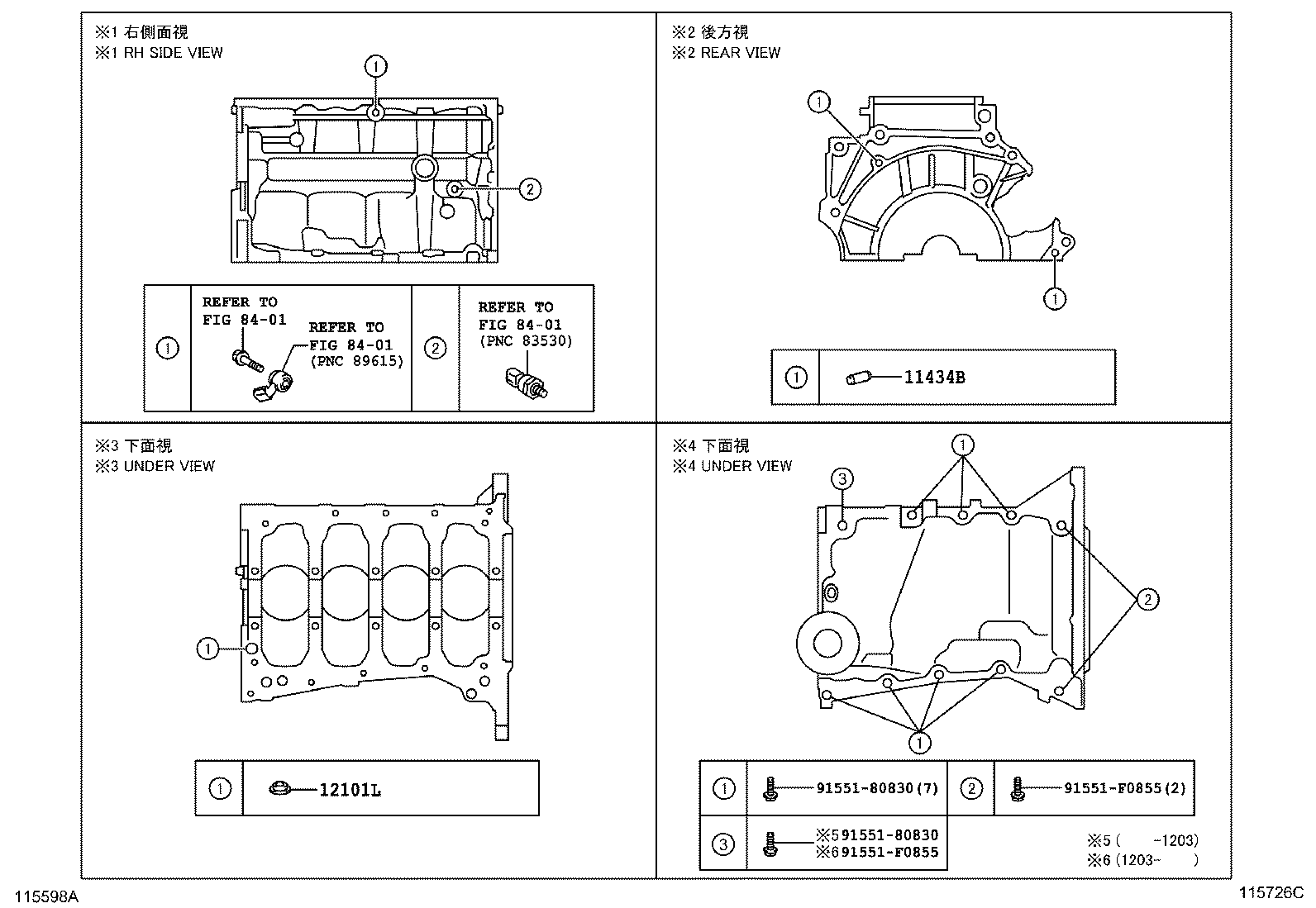

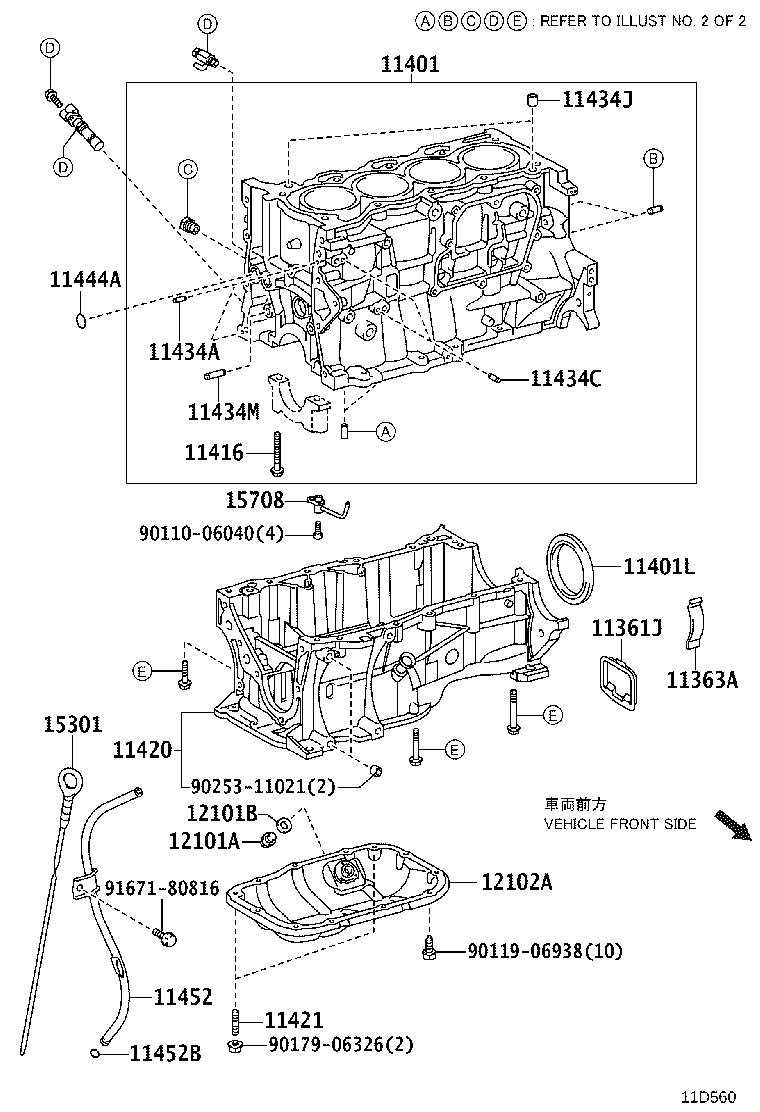

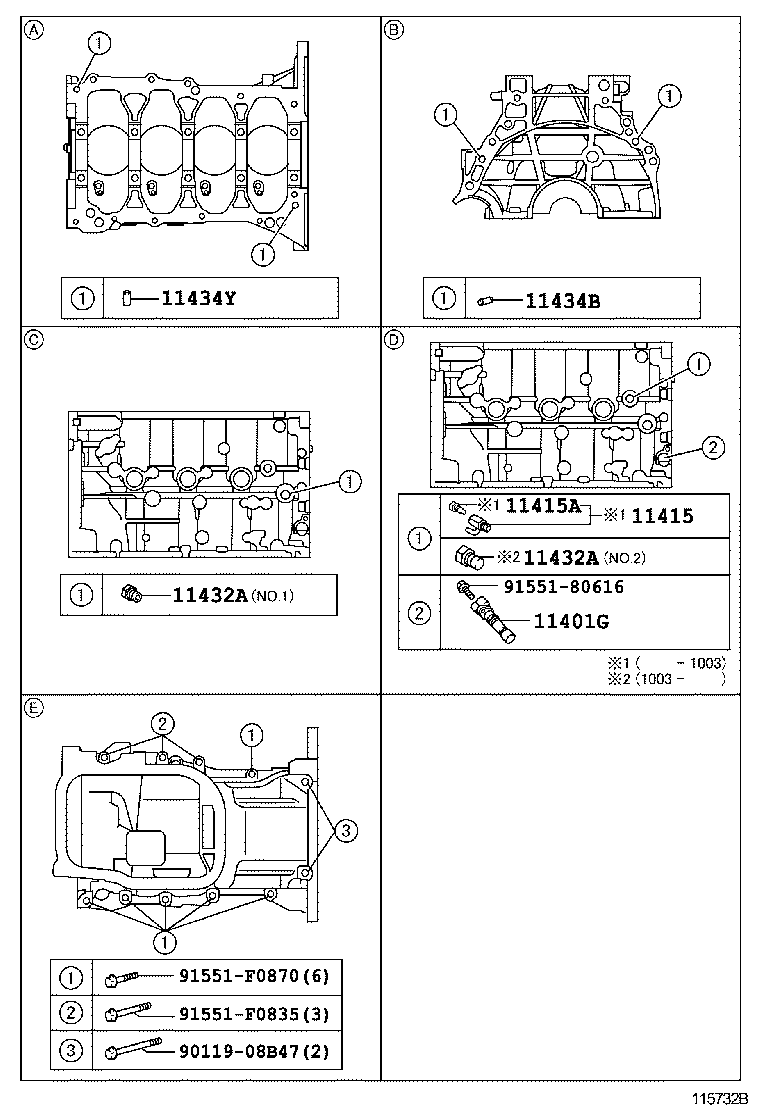

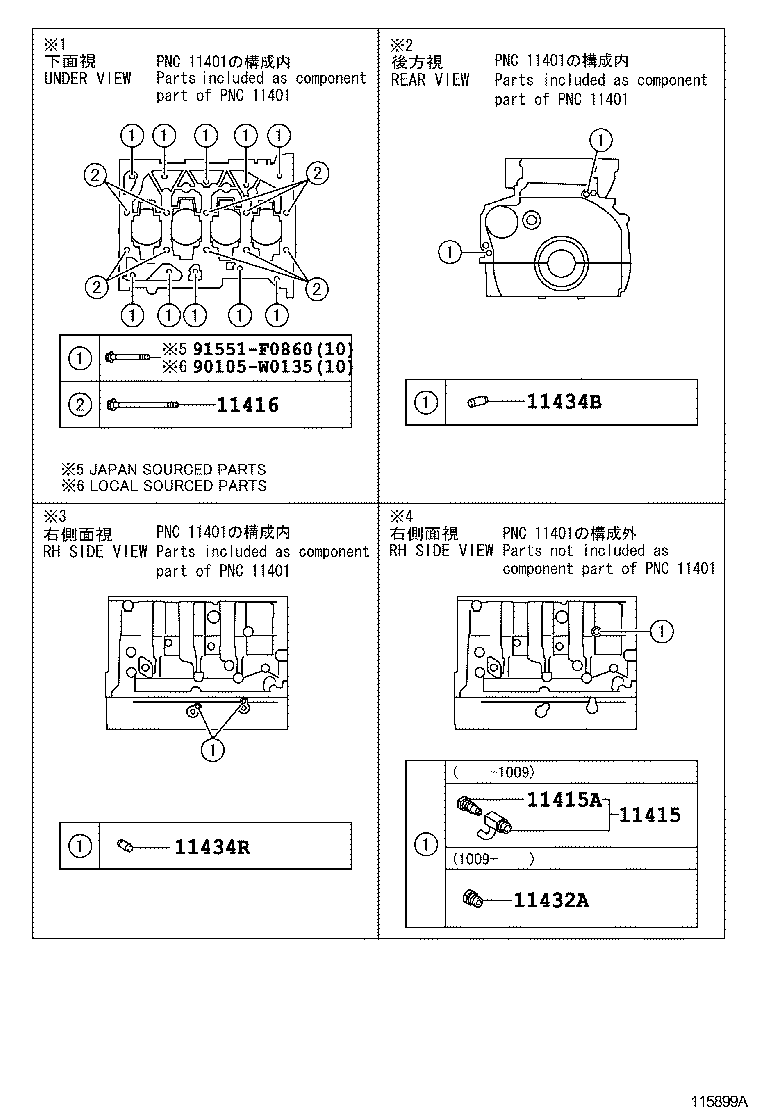

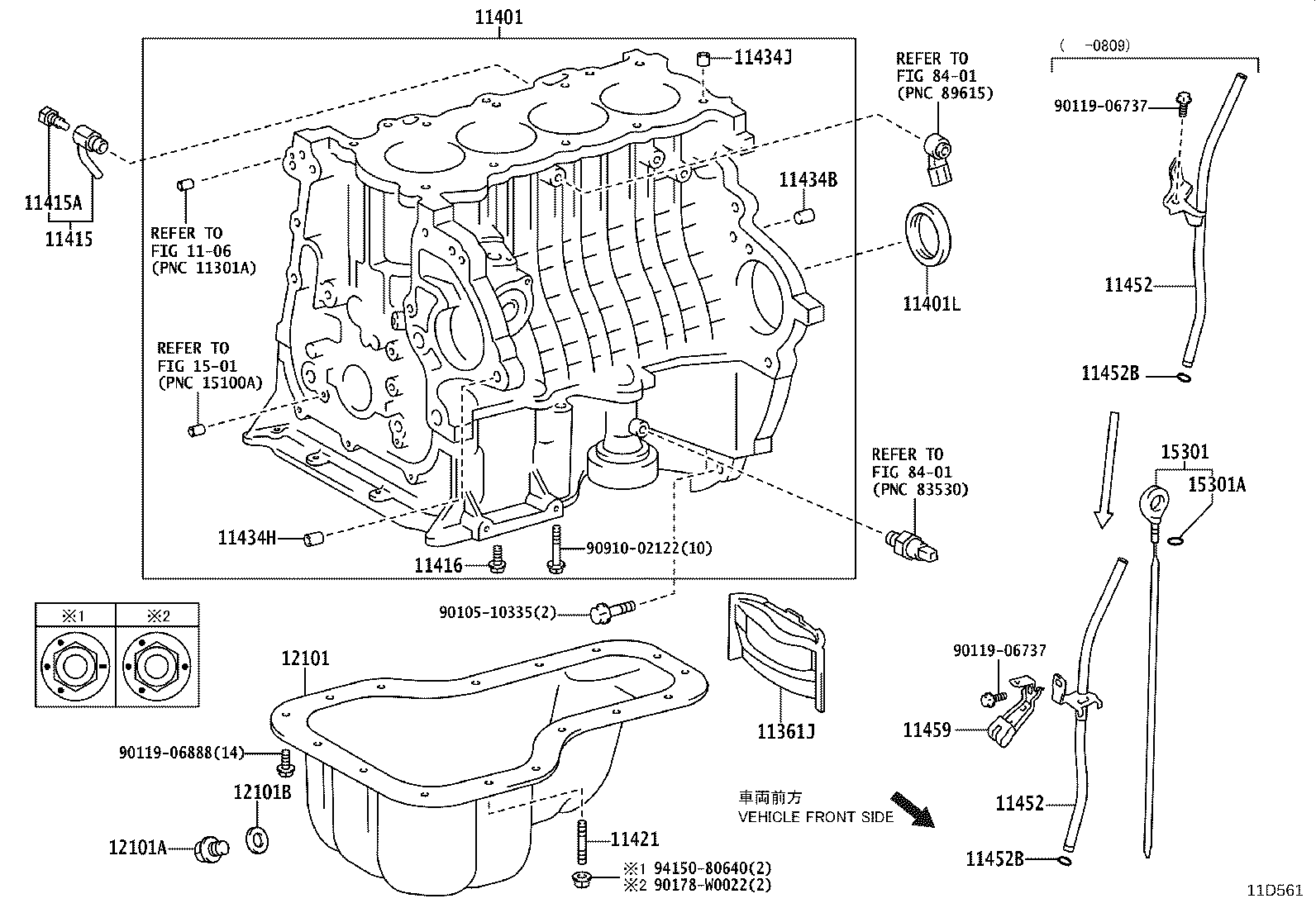

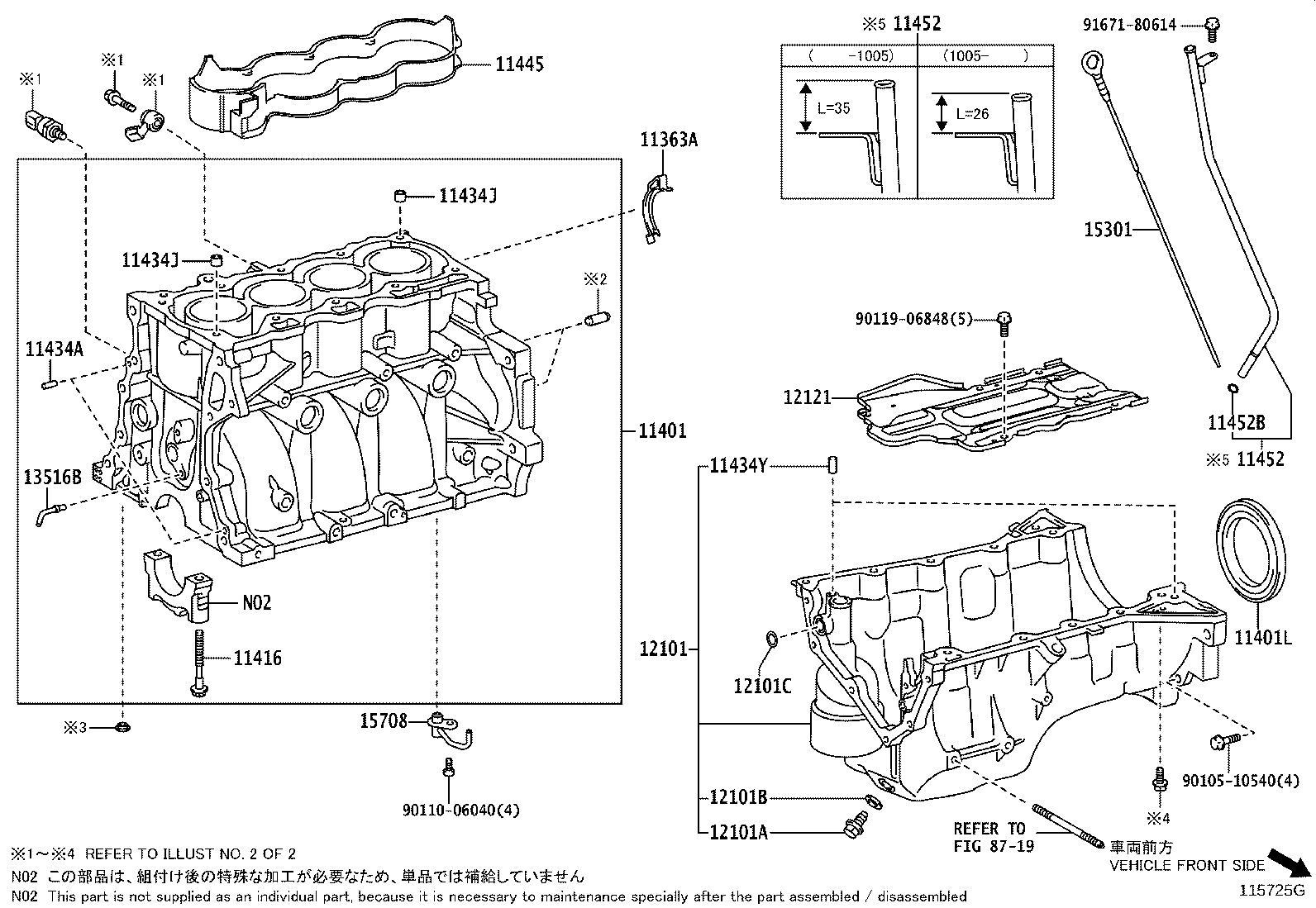

Cylinder Block
40 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 11361J | Cover, Flywheel Housing Under |
| 11363A | Cover, Flywheel Housing Side |
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11420 | Crankcase Assy, Stiffening |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434H | Pin, Ring (FOR TIMING BELT COVER SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434M | Pin, Straight(FOR CHAIN TENSIONER) |
| 11434R | Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11444A | Ring, O |
| 11445 | Spacer, Cylinder Block Water Jacket |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 11459 | Support, Oil Level Gage Guide |
| 11573 | Plate, Oil Reflector |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12101C | Ring, O(FOR OIL PAN) |
| 12101L | Gasket NO.1(FOR OIL PAN) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 12156 | Insulator, Oil Pan |
| 12581A | Insulator, Cylinder Block, NO.1 |
| 13516B | Jet, Oil |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 33118D | Plate, Stiffener, RH |
| 33119C | Plate, Stiffener, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
