Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 5 illustrations

Illustrations

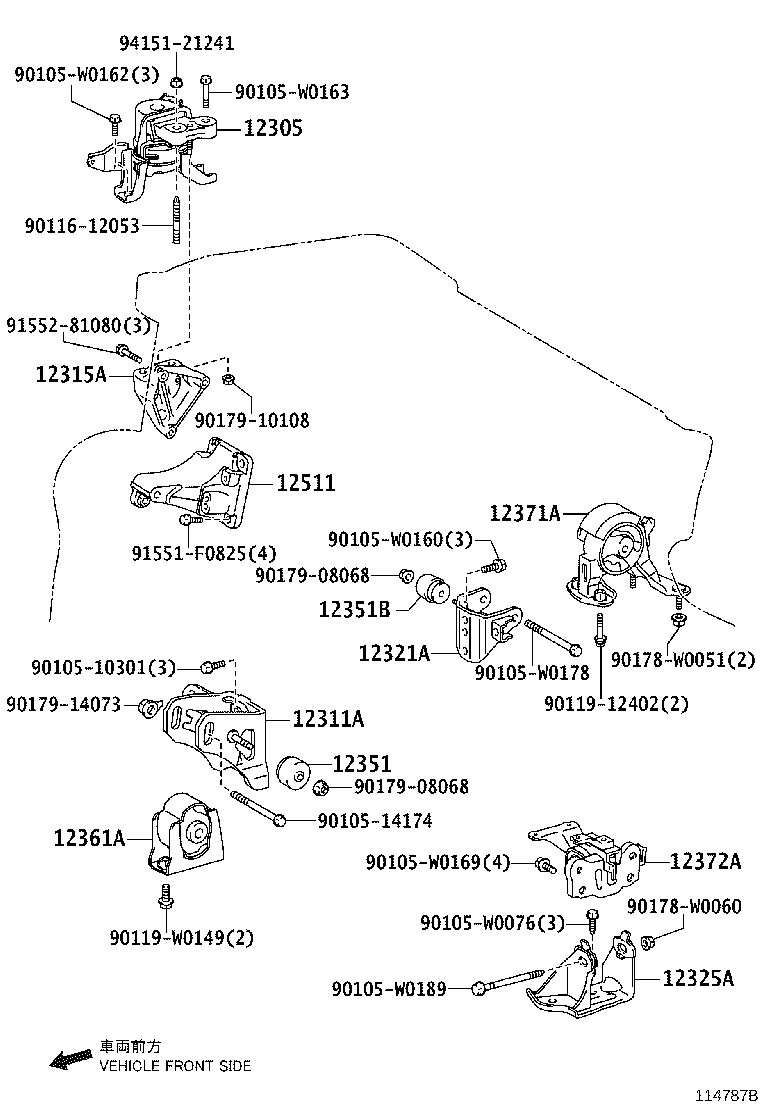

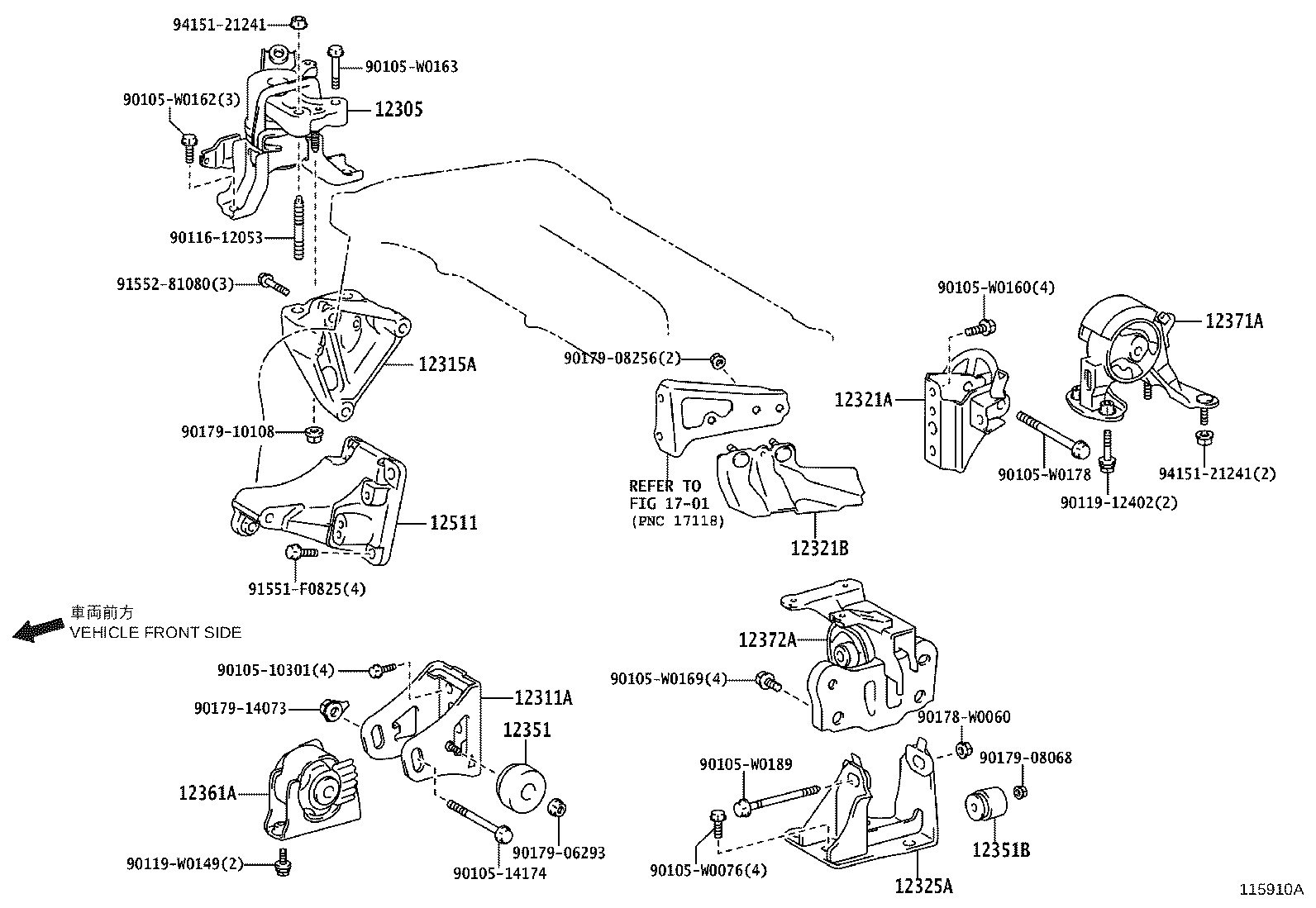

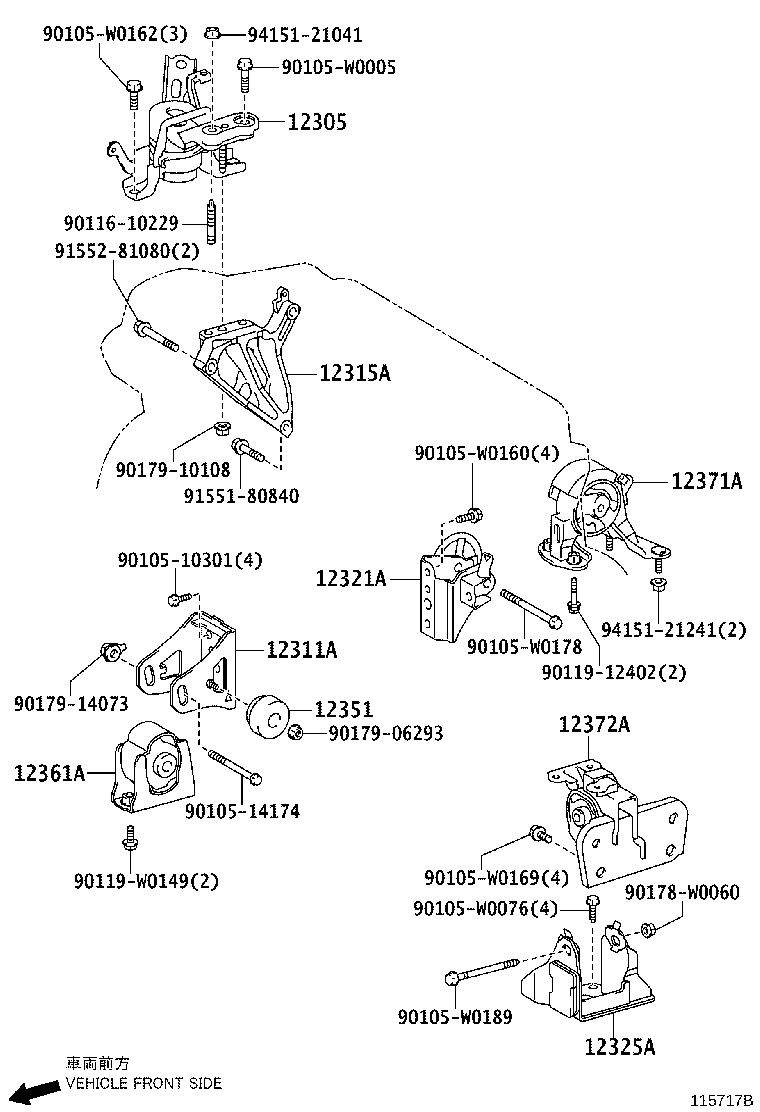

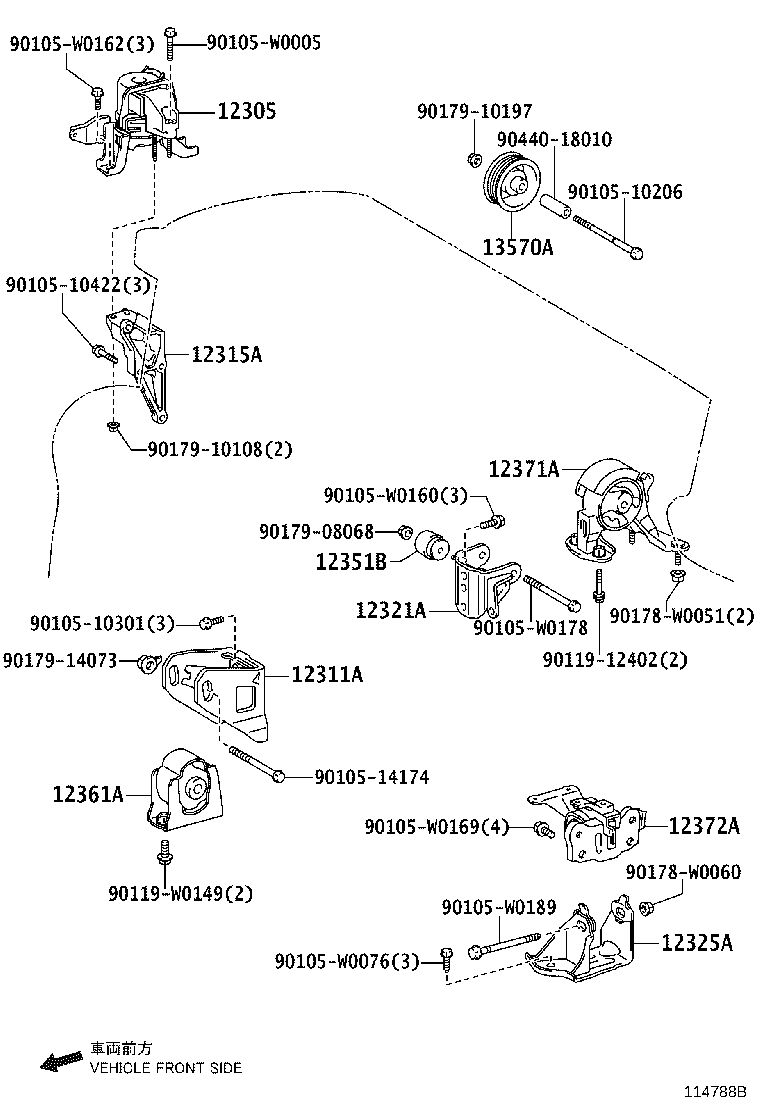

Figure 114799D 114799D 2007-06 → — Figure 115717B 115717B 2008-11 → — Figure 114787B 114787B 2007-06 → — Figure 114788B 114788B 2007-06 → — Figure 115910A 115910A 2009-02 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12341 Spacer, Engine Mounting
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12351B Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
13570A Idler Assy, V-ribbed, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
