Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

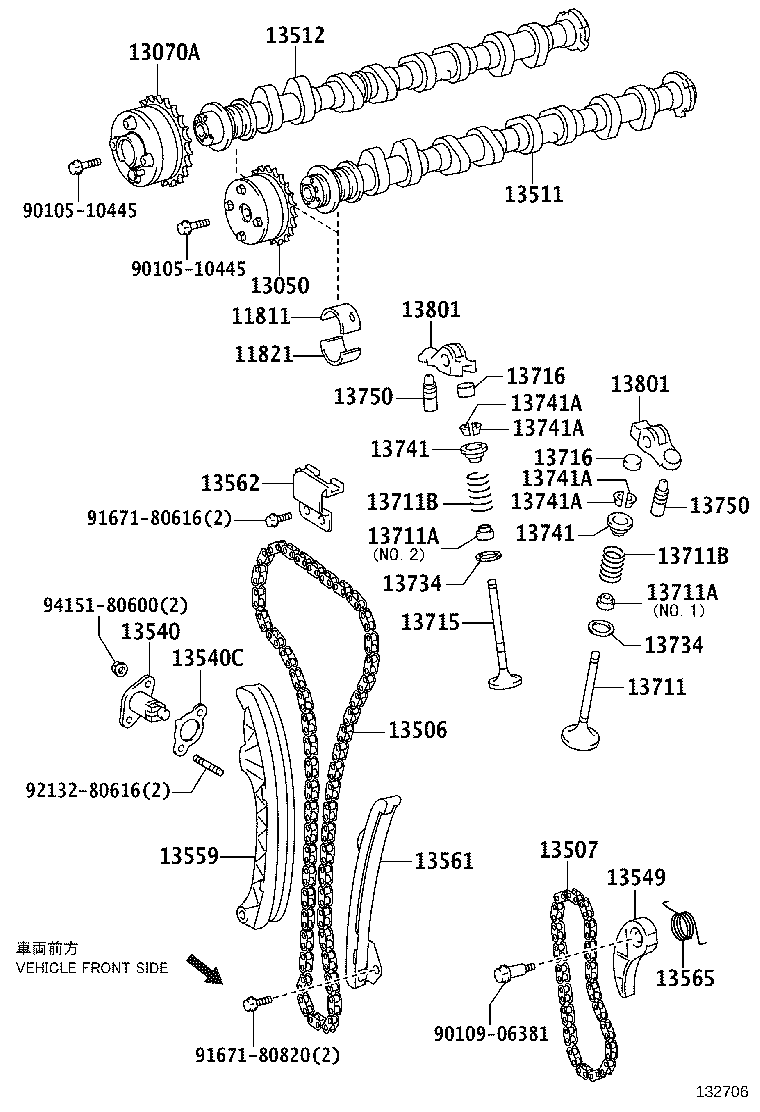

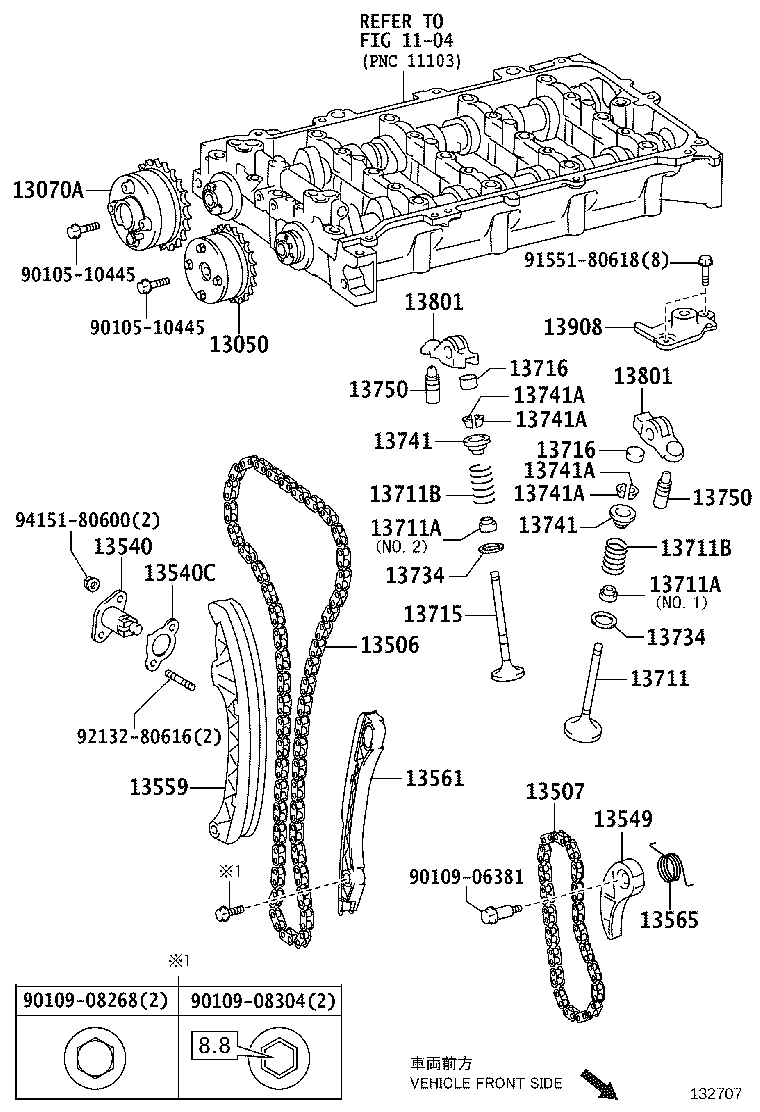

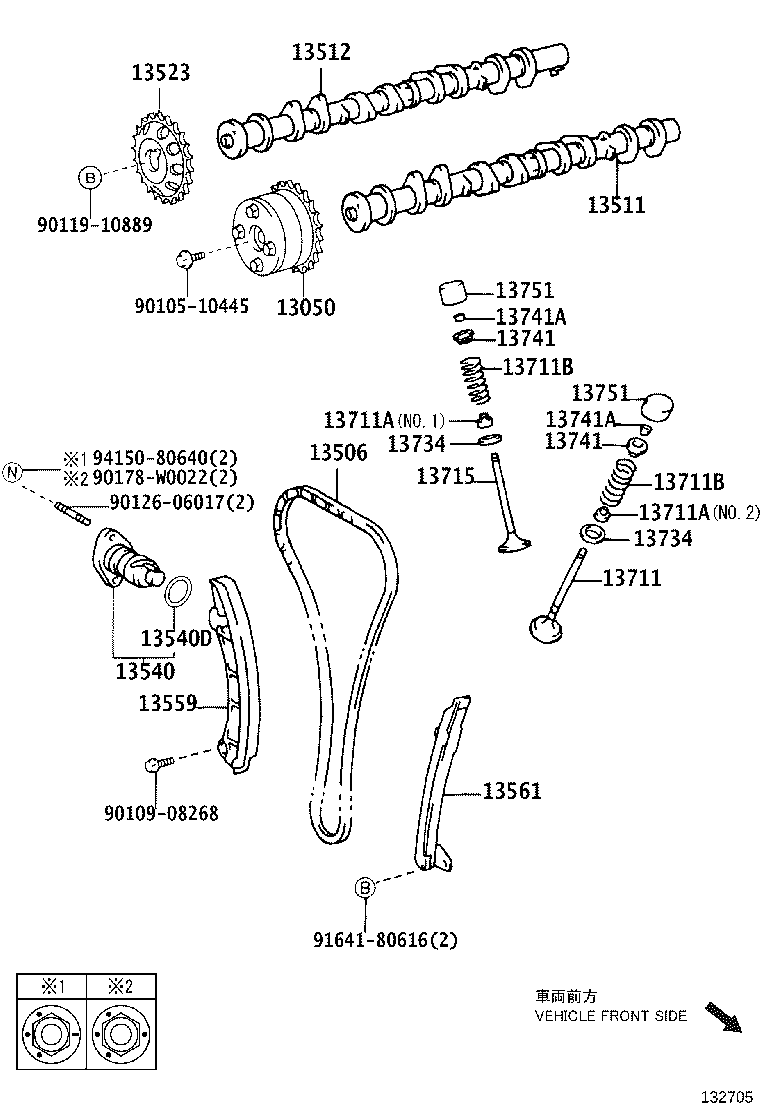

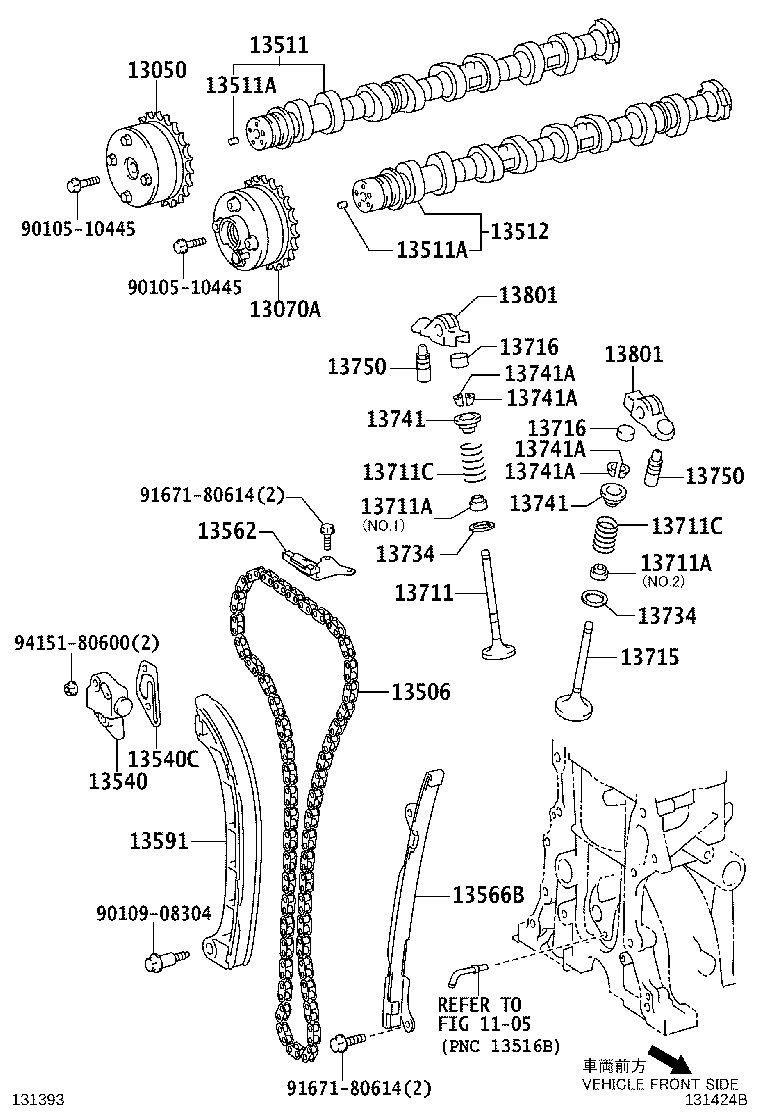

Camshaft & Valve
35 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11811 | Bearing, Camshaft, NO.1 |
| 11821 | Bearing, Camshaft, NO.2 |
| 13050 | Gear Assy, Camshaft Timing |
| 13070A | Gear Assy, Camshaft Timing Exhaust |
| 13506 | Chain Sub-assy |
| 13507 | Chain Sub-assy, NO.2 |
| 13511 | Camshaft |
| 13511A | Pin, Straight(FOR CAMSHAFT KNOCK) |
| 13512 | Camshaft, NO.2 |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13540D | Ring, O(FOR CHAIN TENSIONER) |
| 13549 | Plate, Chain Tensioner |
| 13559 | Slipper, Chain Tensioner |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13562 | Damper, Chain Vibration, NO.2 |
| 13565 | Spring, Chain Damper |
| 13566B | Guide, Timing Chain |
| 13591 | Arm, Timing Chain Tension |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711C | Spring, Compression(FOR OUTER) |
| 13711E | Seal, Intake Valve Stem Oil |
| 13715 | Valve, Exhaust |
| 13715A | Seal, Exhaust Valve Stem Oil |
| 13716 | Cap, Valve Stem |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13750 | Adjuster Assy, Valve Lash |
| 13751 | Lifter, Valve |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 13908 | Damper Sub-assy, Valve Rocker Arm Lost Motion |
PNC is the six-character part-group number the factory catalogue files
