Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

11 part groups · 5 illustrations

Illustrations

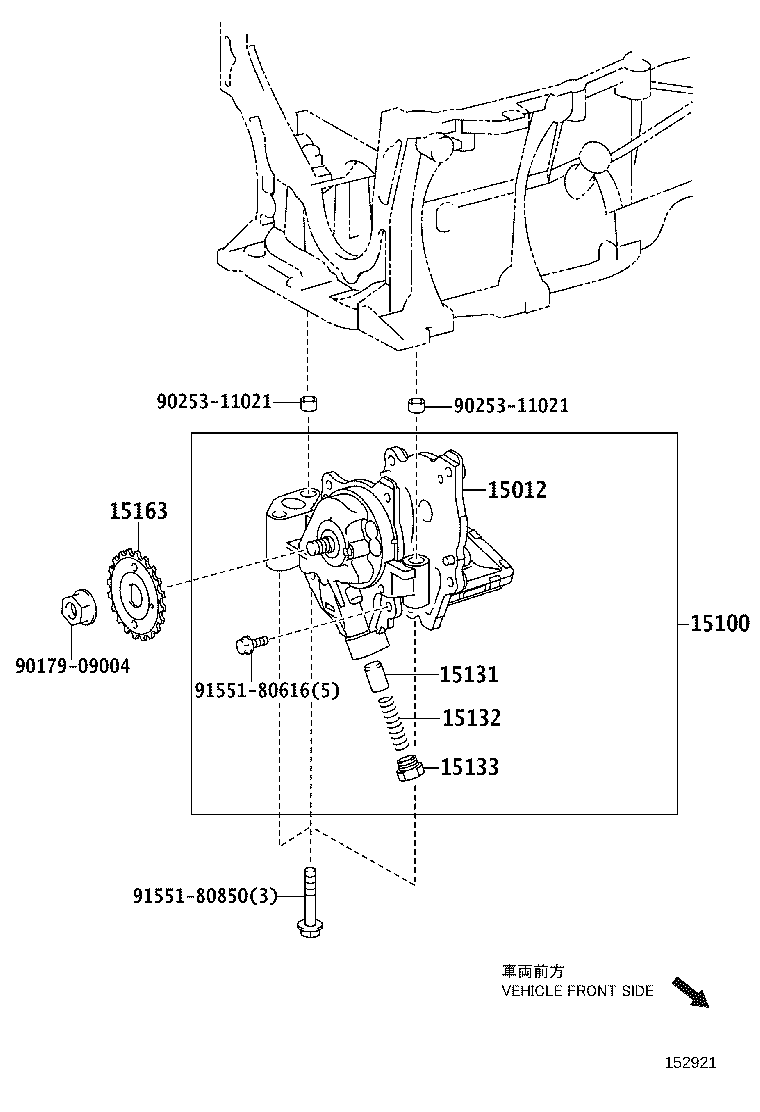

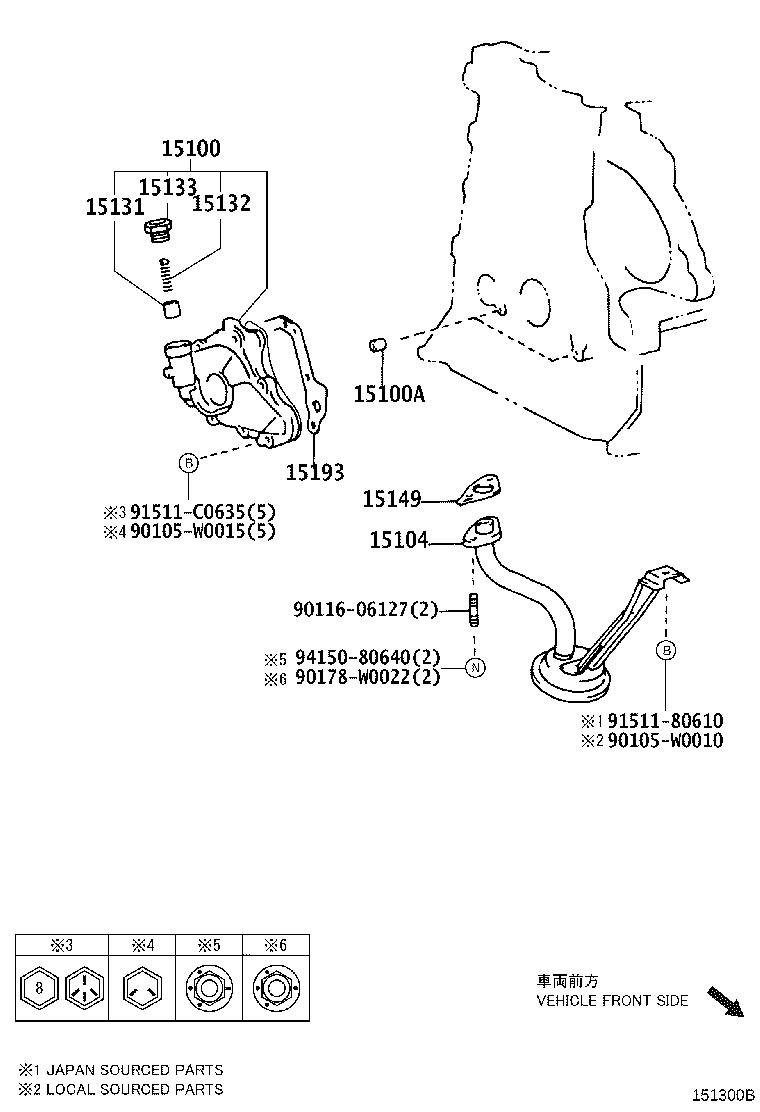

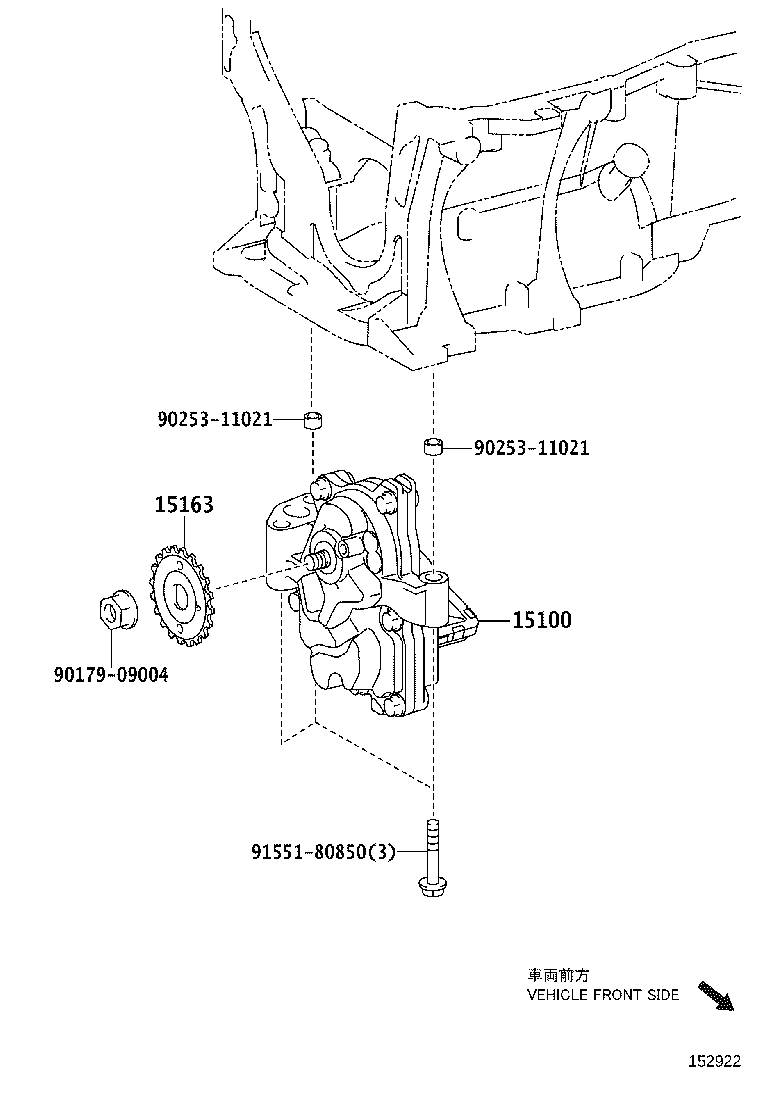

Figure 151319C 151319C 2007-06 → — Figure 151548B 151548B 2008-11 → — Figure 152921 152921 2007-06 → — Figure 151300B 151300B 2007-06 → — Figure 152922 152922 2009-02 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15163 Gear, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
