Water Pump

8 part groups · 4 illustrations

Illustrations

Figure 163061B

163061B 2007-06 → —

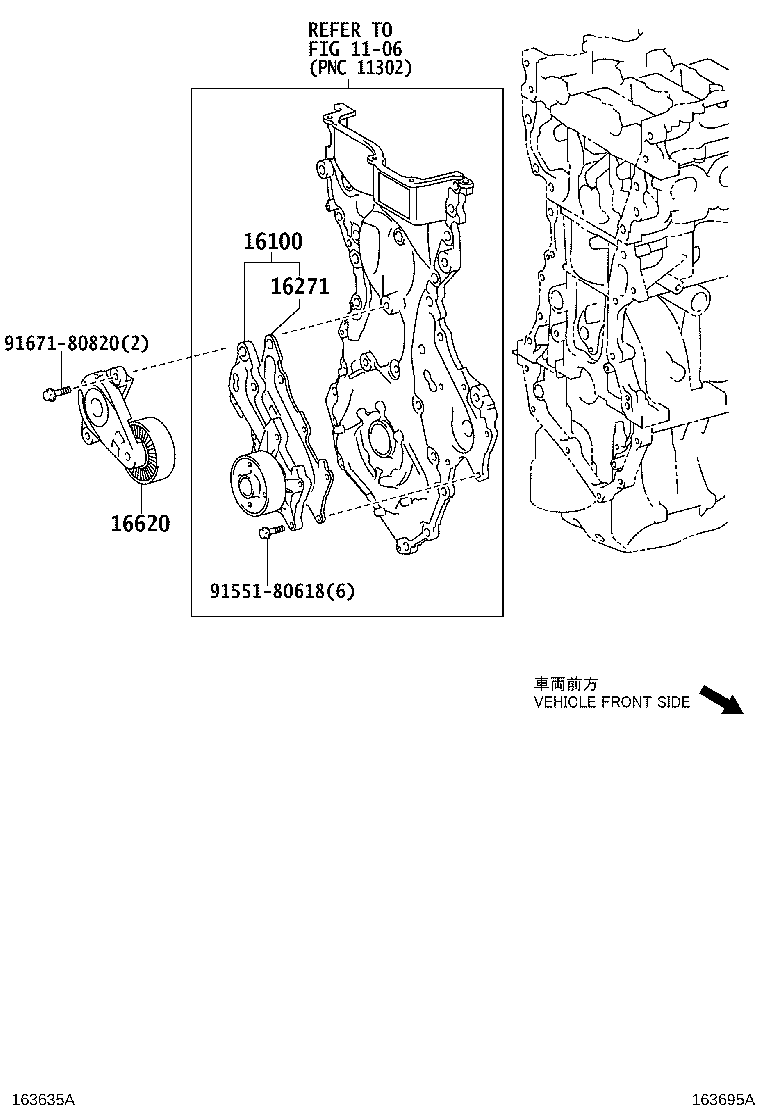

Figure 163695A

163695A 2008-11 → —

Figure 164040A

164040A 2007-06 → —

Figure 163056A

163056A 2007-06 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16100H	Ring, O(FOR WATER PUMP)
16271	Gasket, Water Pump
16603	Pulley Sub-assy, Idler, NO.1
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16649B	Plate, Idler Pulley Cover
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
