Factory parts data · Europe

Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

10 part groups · 4 illustrations

Illustrations

Figure 175634F

175634F 2007-06 → —

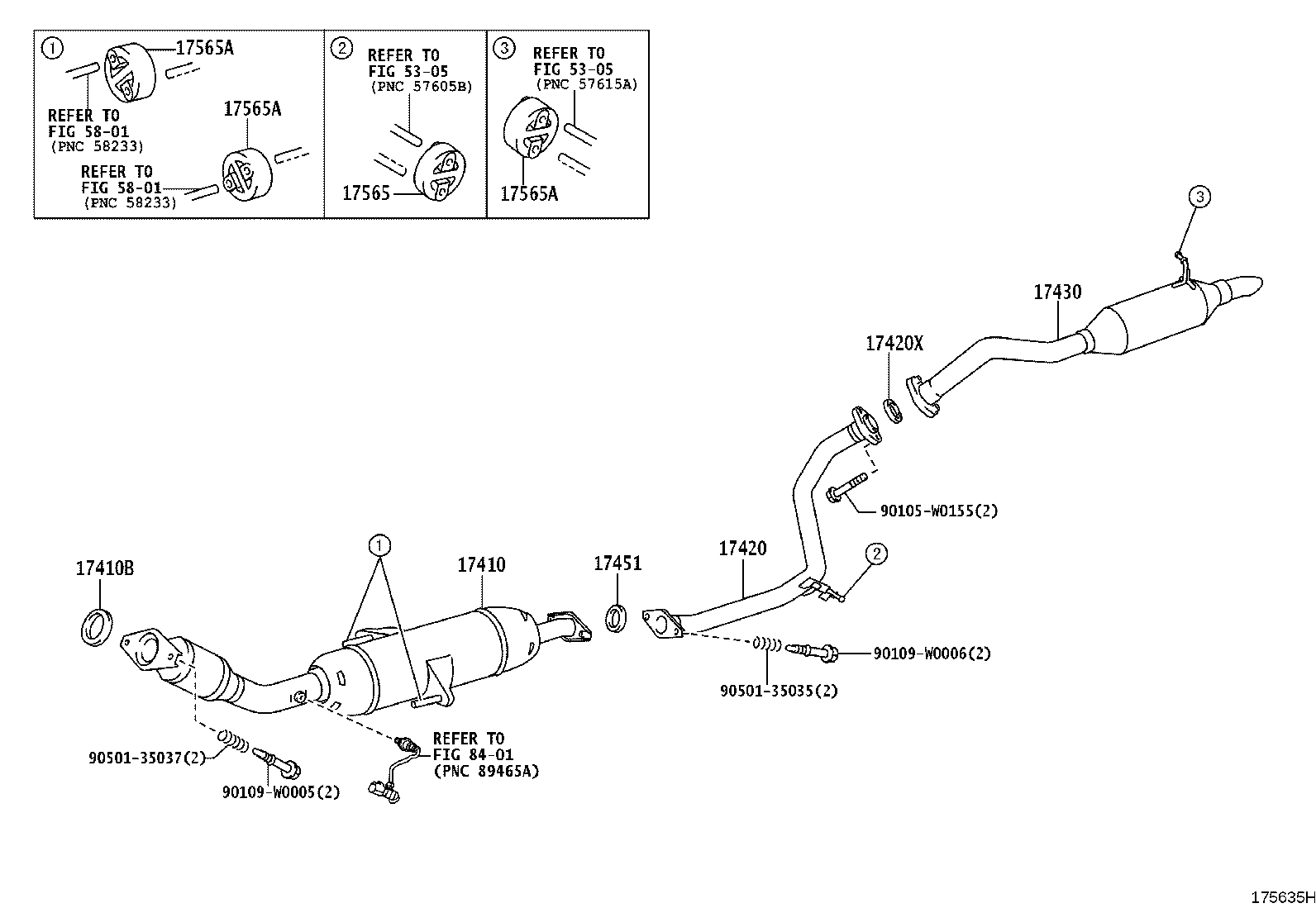

Figure 175635H

175635H 2007-06 → —

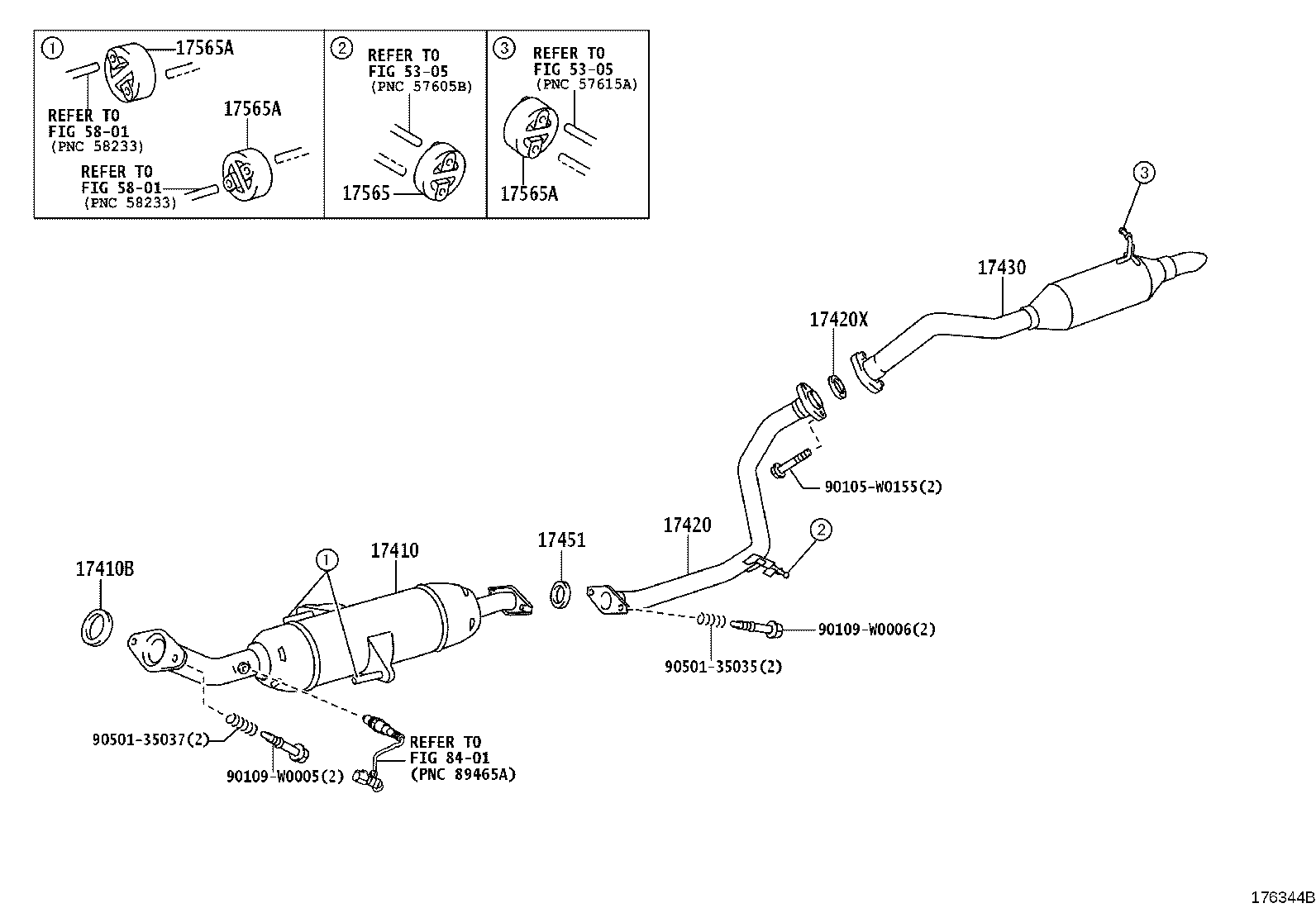

Figure 176344B

176344B 2007-06 → —

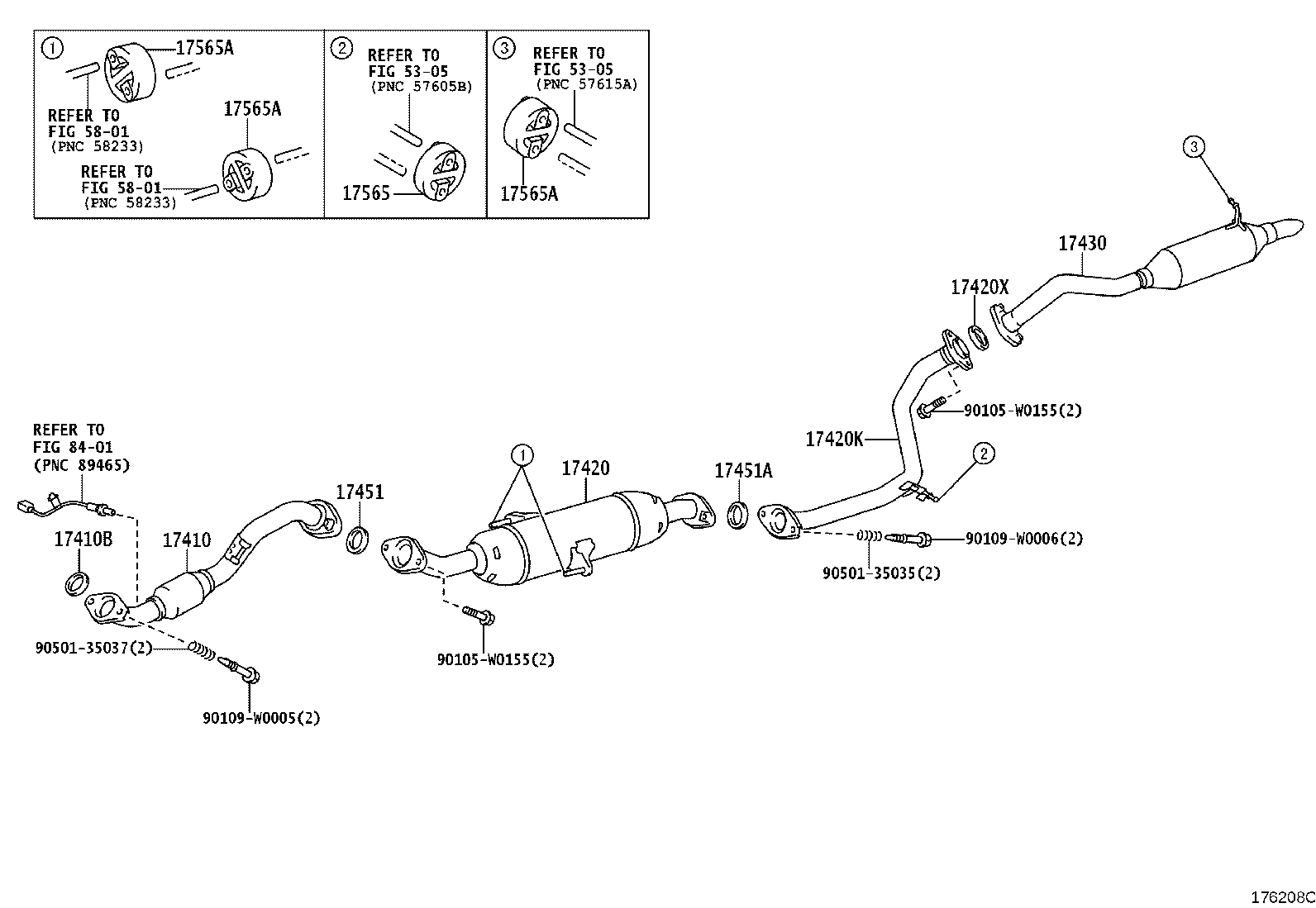

Figure 176208C

176208C 2008-11 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17420	Pipe Assy, Exhaust, Center
17420K	Pipe Assy, Exhaust, Center NO.2
17420X	Gasket, Exhaust Pipe, Center
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17451A	Gasket, Exhaust Pipe, NO.2
17565	Support, Exhaust Pipe, NO.5
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
