Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

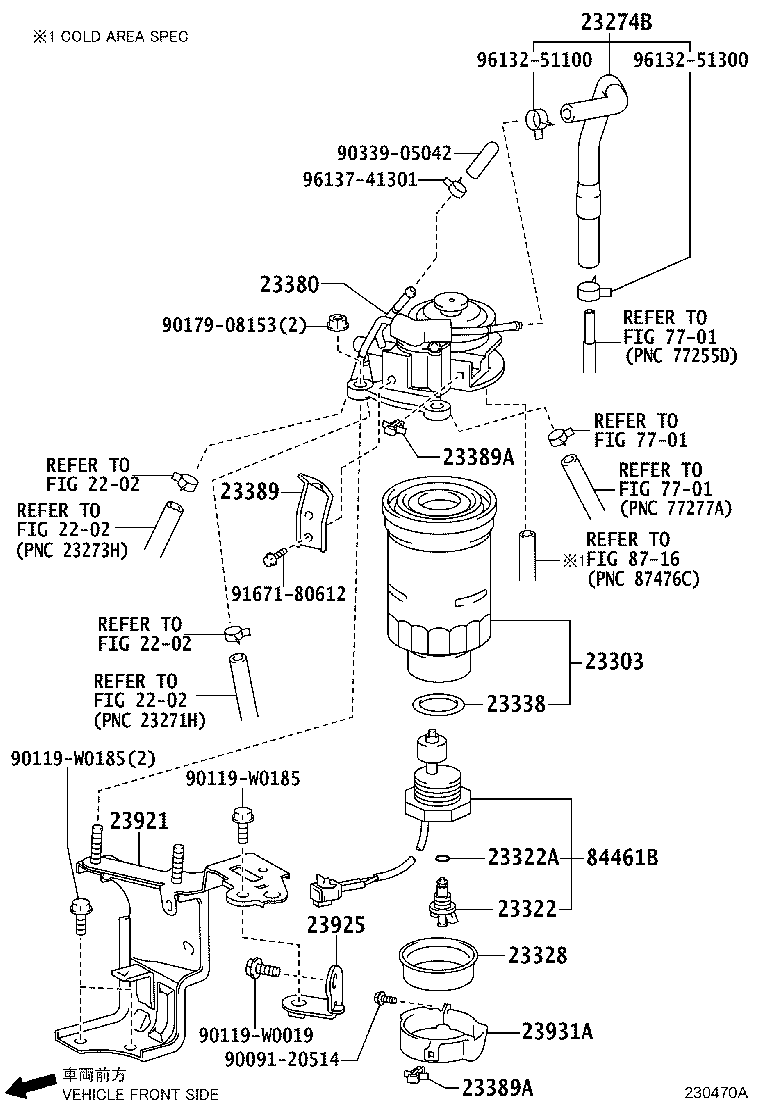

Fuel Filter
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23274B | Hose, Fuel, NO.3 |
| 23303 | Element Sub-assy, Fuel Filter |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23328 | Gasket(FOR FUEL FILTER) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23380 | Cap Assy, Fuel Filter |
| 23389 | Clamp, Fuel Filter |
| 23389A | Clamp, Fuel Filter |
| 23921 | Support, Fuel Filter |
| 23925 | Stay, Fuel Filter Support |
| 23931A | Cover, Fuel Filter |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
