Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

27 part groups · 10 illustrations

Illustrations

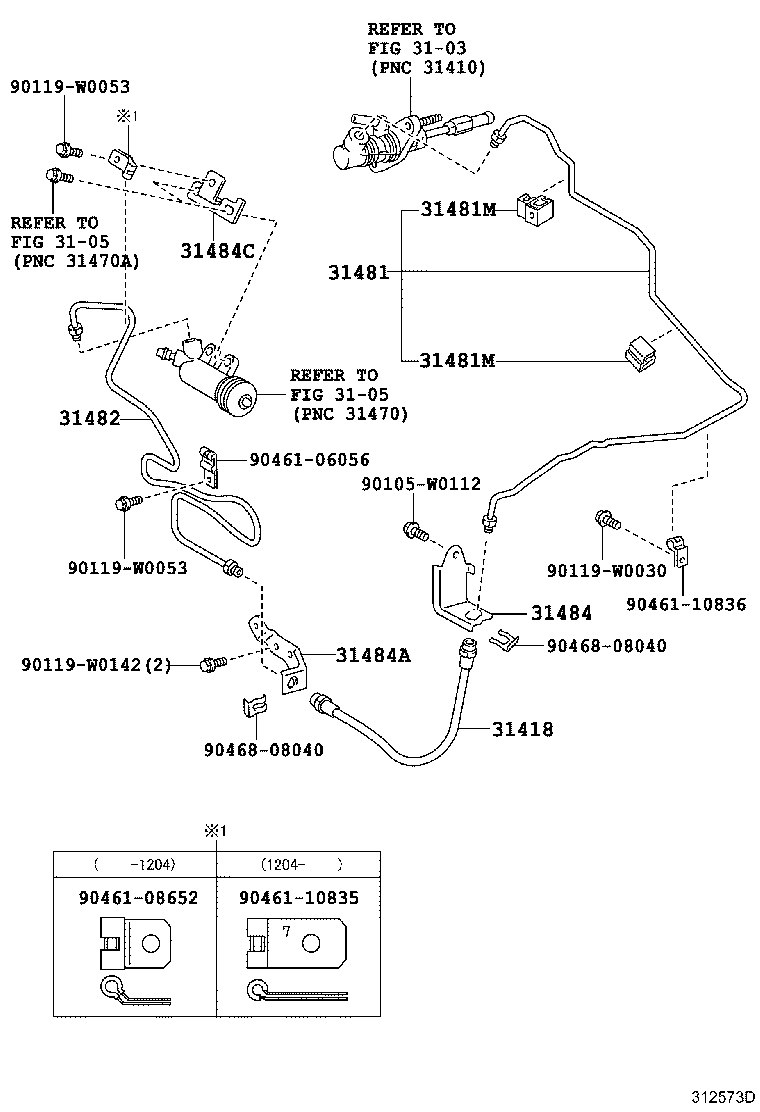

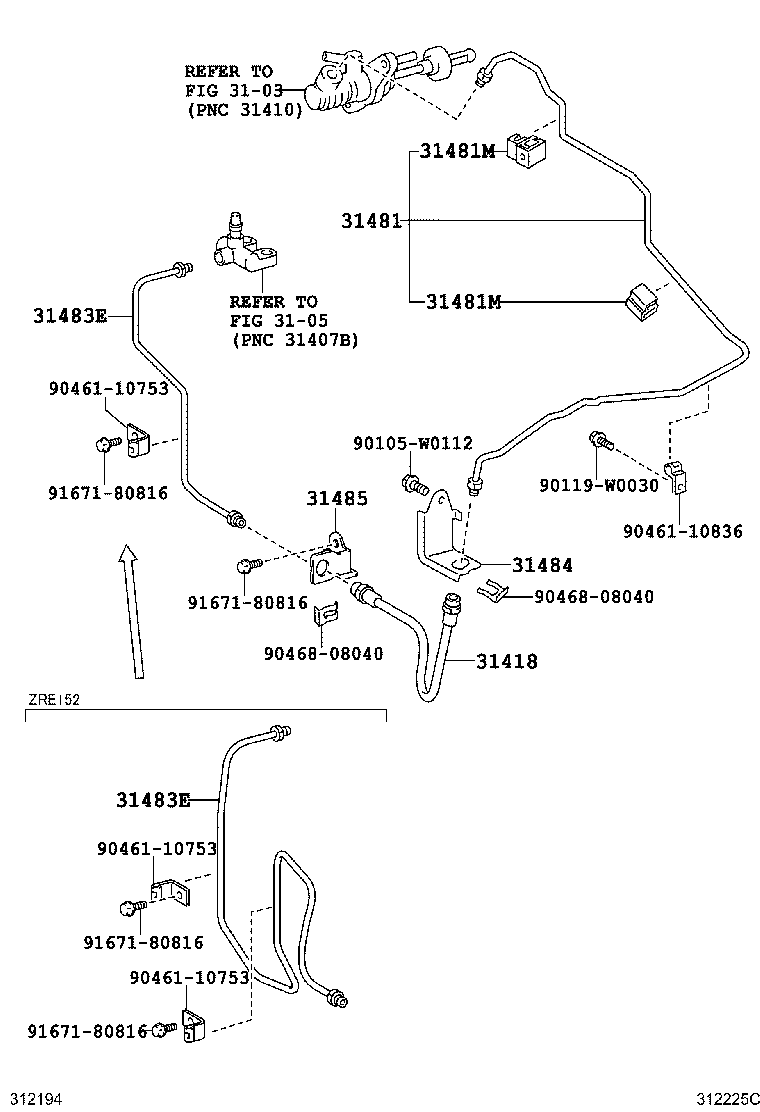

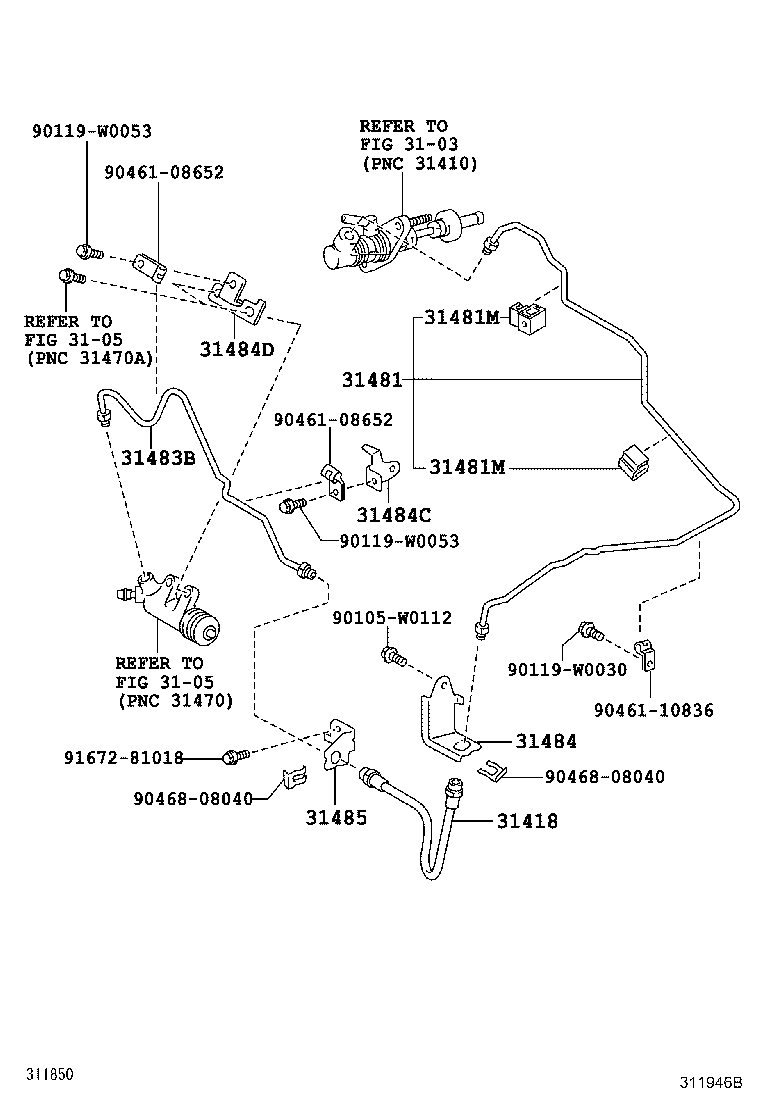

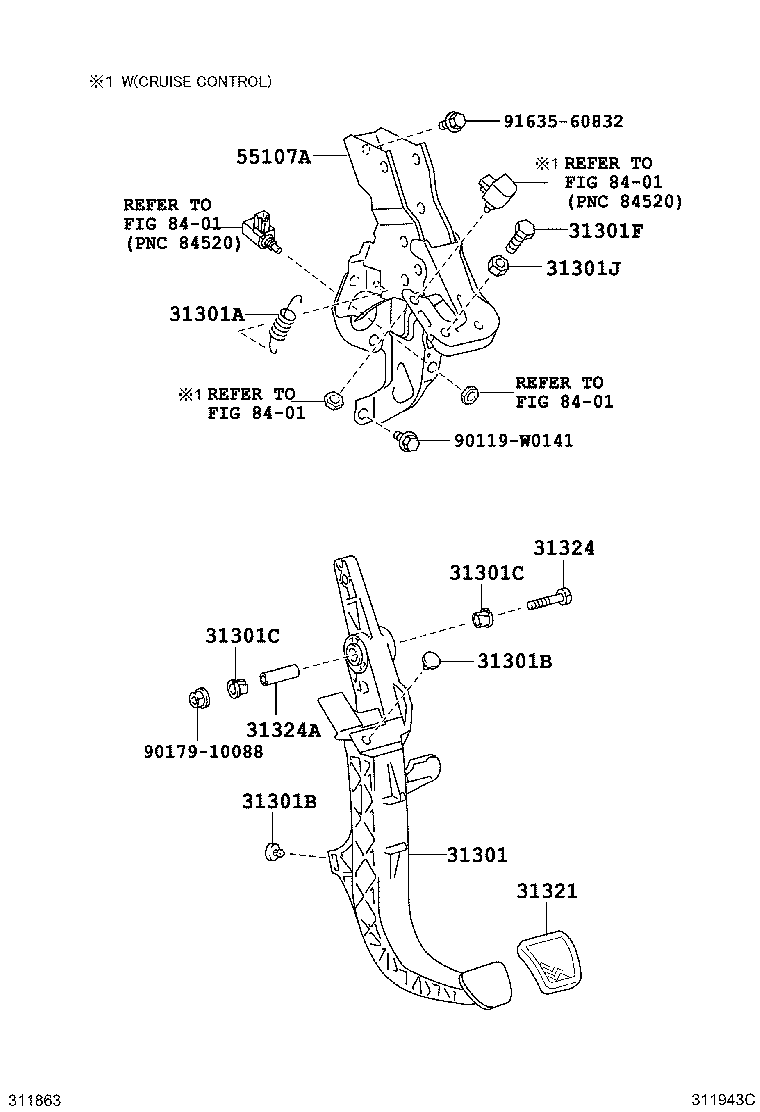

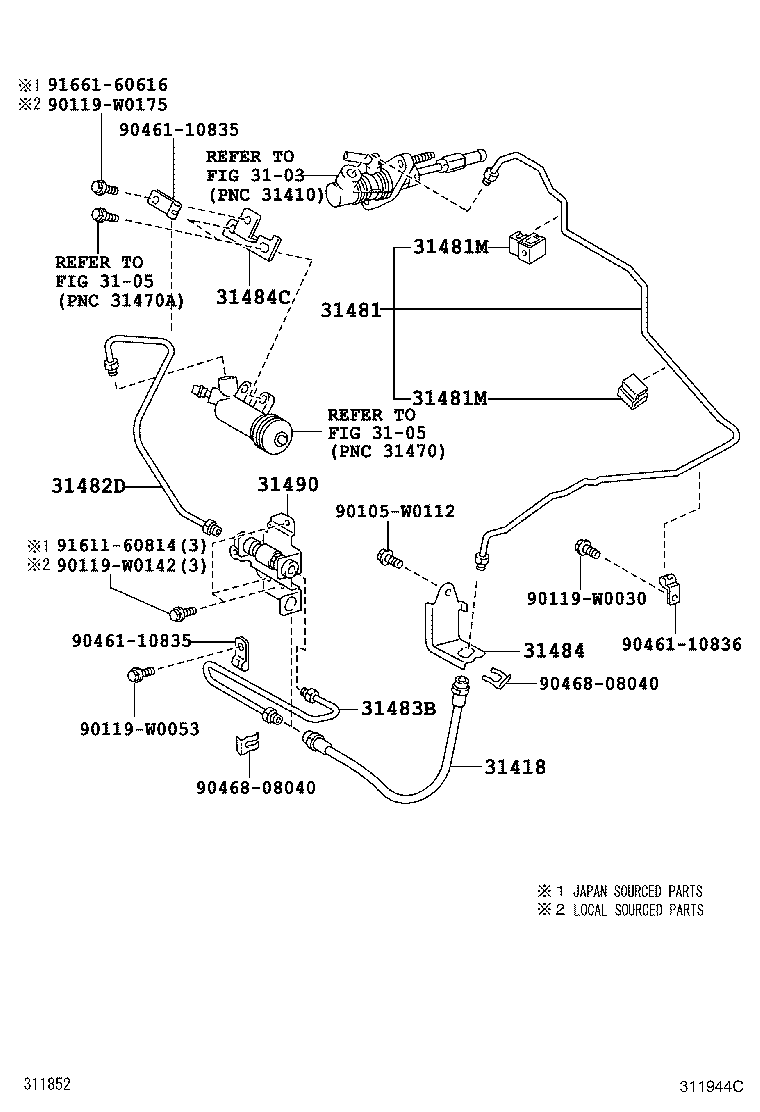

Figure 311941C 311941C 2007-06 → — Figure 311943C 311943C 2007-06 → 2012-10 Figure 311943C 311943C 2007-06 → — Figure 311944C 311944C 2007-06 → 2011-05 Figure 311945B 311945B 2007-06 → 2009-02 Figure 311945B 311945B 2007-06 → — Figure 311946B 311946B 2007-06 → — Figure 312162C 312162C 2008-11 → — Figure 312225C 312225C 2009-02 → — Figure 312573D 312573D 2011-05 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31358 Cap, Over Center Spring
31394A Spring, Pedal W/Hook
31395A Hook, Pedal Spring, NO.1
31418 Hose, Clutch
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481M Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482D Tube, Clutch Release Cylinder TO Accumulator
31483B Tube, Accumulator TO Flexible Hose
31483E Tube, Bleeder Clutch Release
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31484D Bracket, Clutch Tube, NO.2
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
31490 Accumulator Assy, Clutch
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
