Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

11 part groups · 6 illustrations

Illustrations

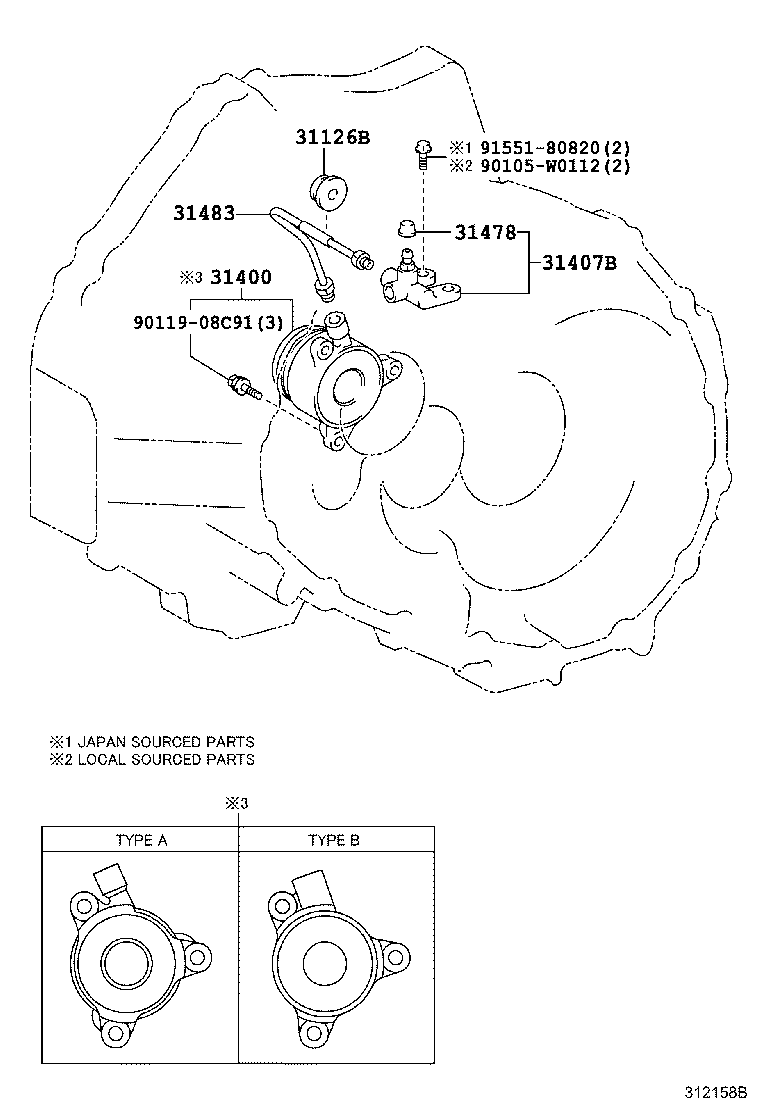

Figure 311848 311848 2007-06 → — Figure 311847 311847 2007-06 → 2009-02 Figure 311847 311847 2007-06 → — Figure 311846 311846 2007-06 → — Figure 312158B 312158B 2008-11 → — Figure 312158B 312158B 2009-02 → —

Part groups

PNCDescription
04313 Cylinder Kit, Clutch Release
31126B Boot, Clutch Tube
31400 Cylinder Assy, Clutch Release W/Bearing
31407B Bleeder Sub-assy, Clutch Release
31470 Cylinder Assy, Clutch Release
31470A Bolt(FOR CLUTCH RELEASE CYLINDER SETTING)
31473 Rod, Clutch Release Cylinder Push, NO.1
31476 Boot, Clutch Release Cylinder
31477 Plug, Bleeder(FOR RELEASE CYLINDER)
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
31483 Tube, Bleeder Clutch Release
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
