Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04
Free Tronic
8 part groups · 2 illustrations
Part groups

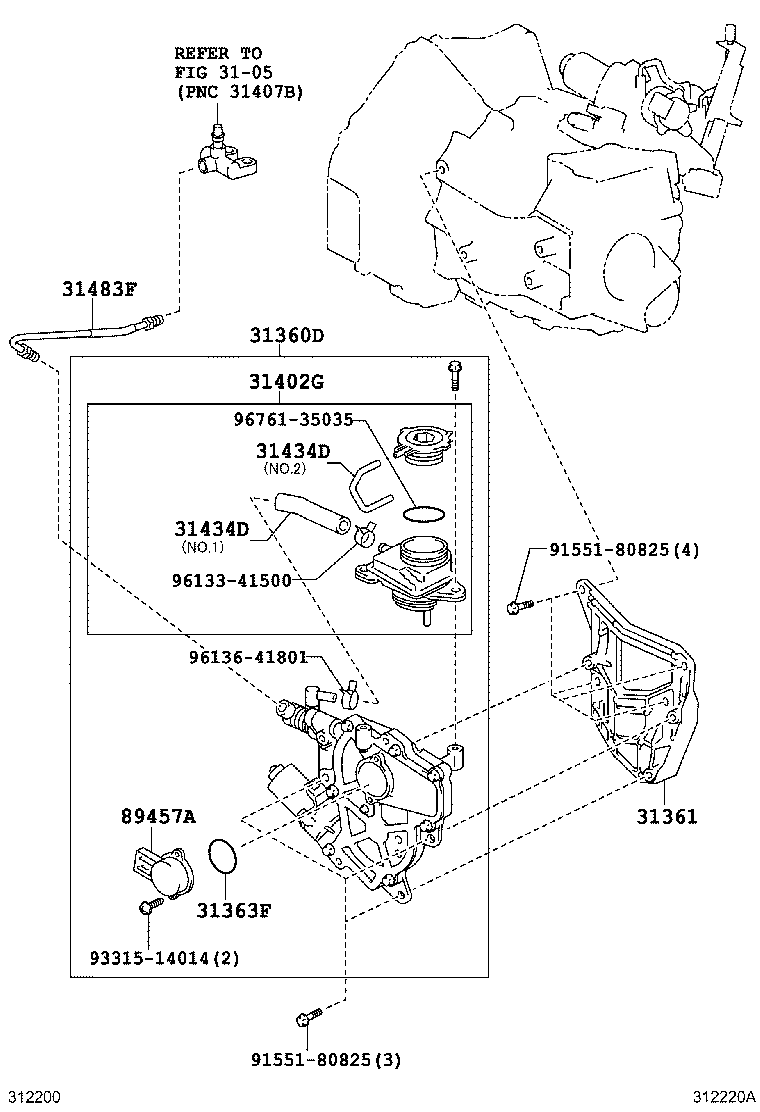

| PNC | Description |
|---|---|
| 31360D | Actuator Assy, Clutch |
| 31361 | Bracket, Clutch Actuator, NO.1 |
| 31363F | Ring, O(FOR CLUTCH ACTUATOR ACCUMULATOR) |
| 31363G | Motor, Clutch Actuator |
| 31402G | Reservoir Set, Master Cylinder |
| 31434D | Tube, Clutch Reservoir |
| 31483F | Tube, Bleeder Clutch Release |
| 89457A | Stroke Sensor, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
