Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

33 part groups · 5 illustrations

Illustrations

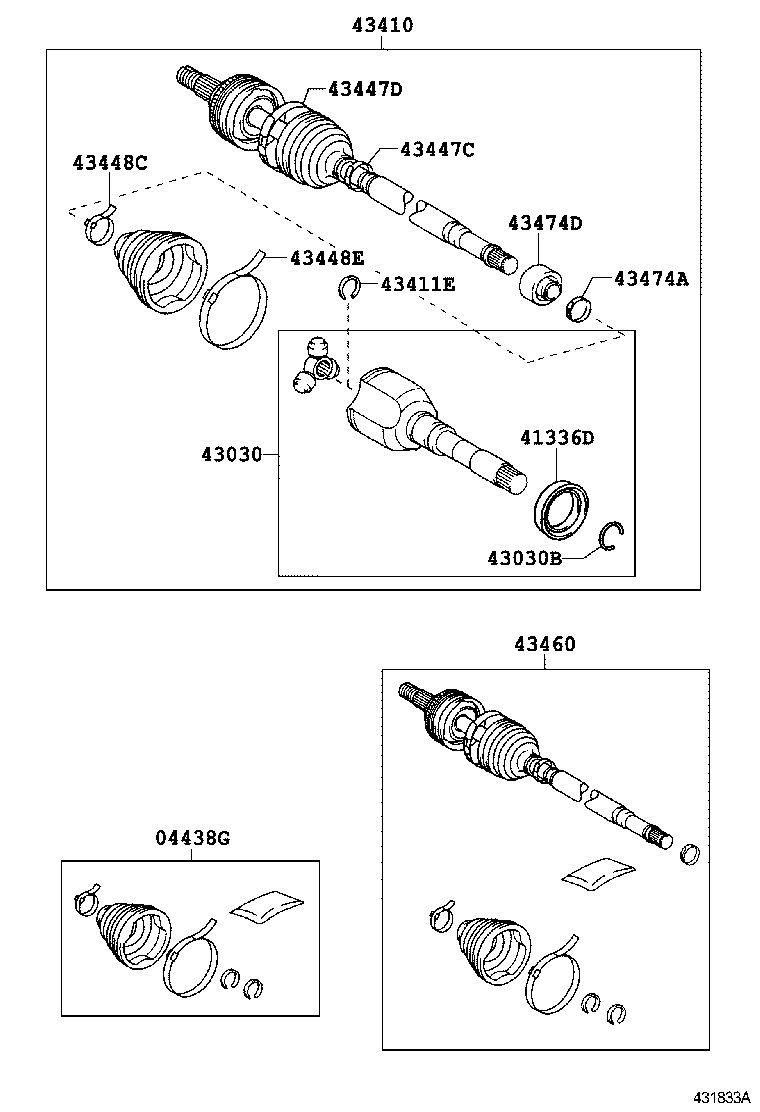

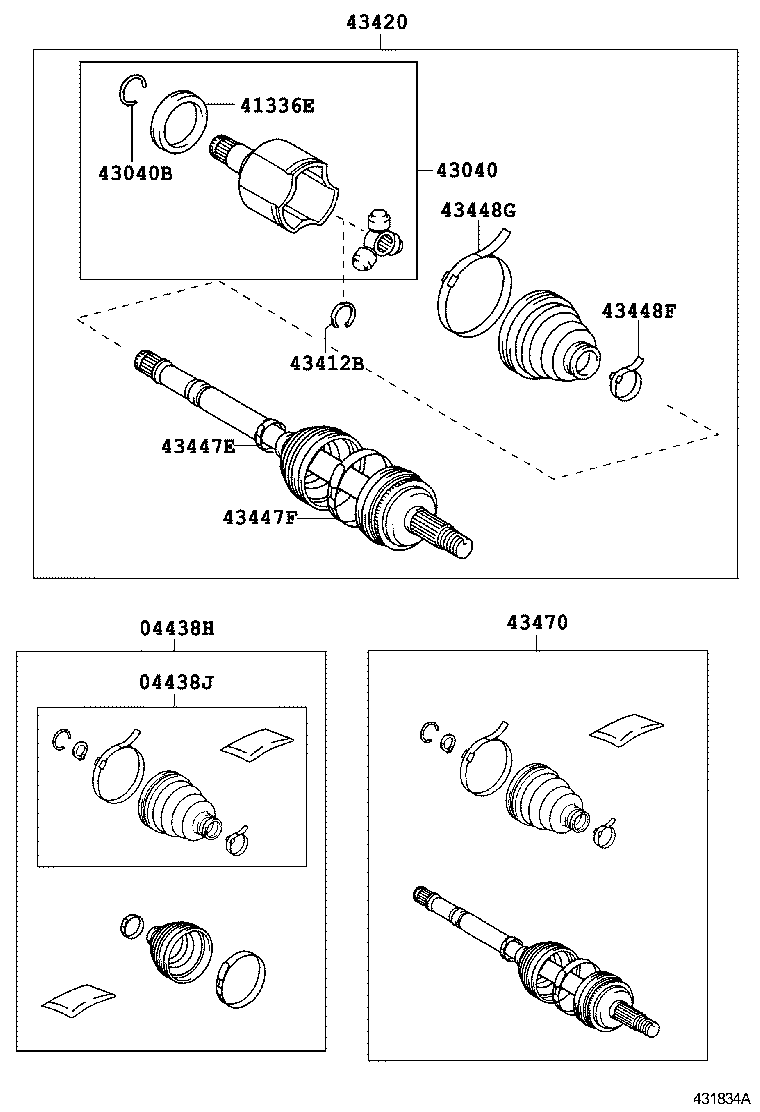

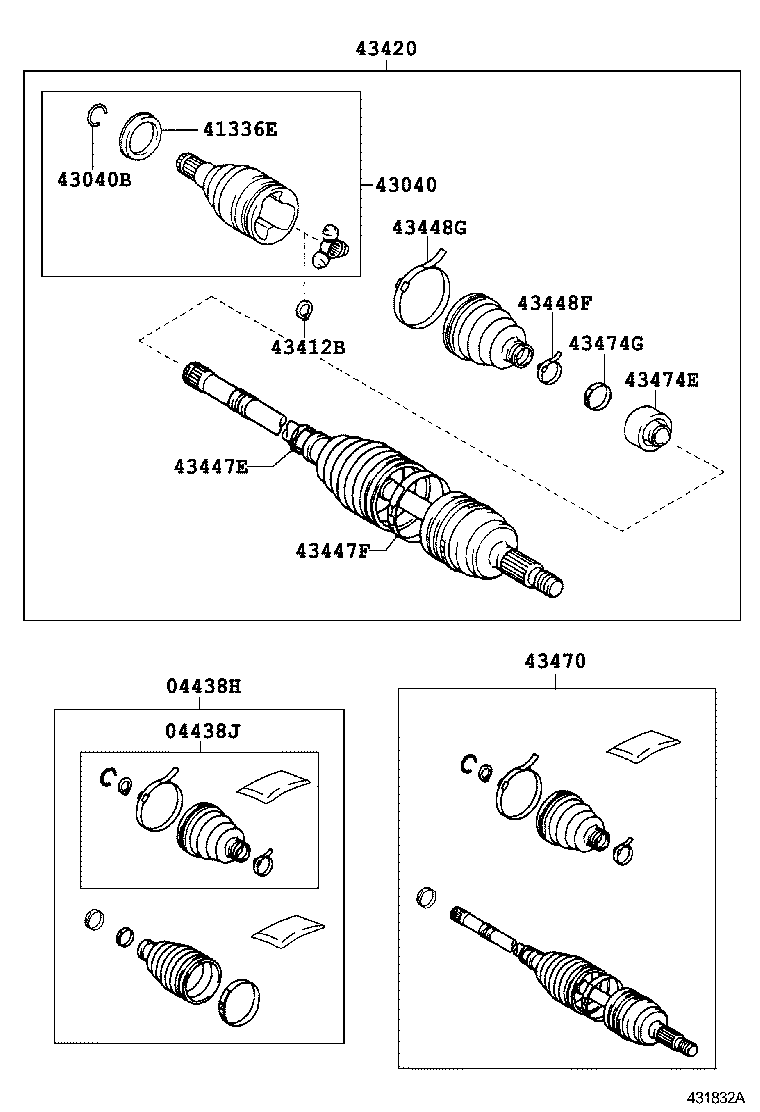

Figure 431831A 431831A 2007-06 → — Figure 431832A 431832A 2007-06 → — Figure 431833A 431833A 2007-06 → — Figure 431834A 431834A 2007-06 → — Figure 431999A 431999A 2007-06 → —

Part groups

PNCDescription
04438F Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
41336D Cover, Front Drive Shaft Dust, RH
41336E Cover, Front Drive Shaft Dust, LH
43030 Joint Assy, Front Drive Inboard, RH
43030B Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
43040 Joint Assy, Front Drive Inboard, LH
43040B Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
43045 Case Sub Assy, Drive Shaft Bearing
43045A Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
43410 Shaft Assy, Front Drive, RH
43411E Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420 Shaft Assy, Front Drive, LH
43447C Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43457 Bracket, Drive Shaft Bearing
43457A Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457D Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
43474A Clamp (FOR DRIVE SHAFT DAMPER SETTING)
43474D Damper, Front Drive Shaft, RH
43474E Damper, Front Drive Shaft, LH
43474G Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
