Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

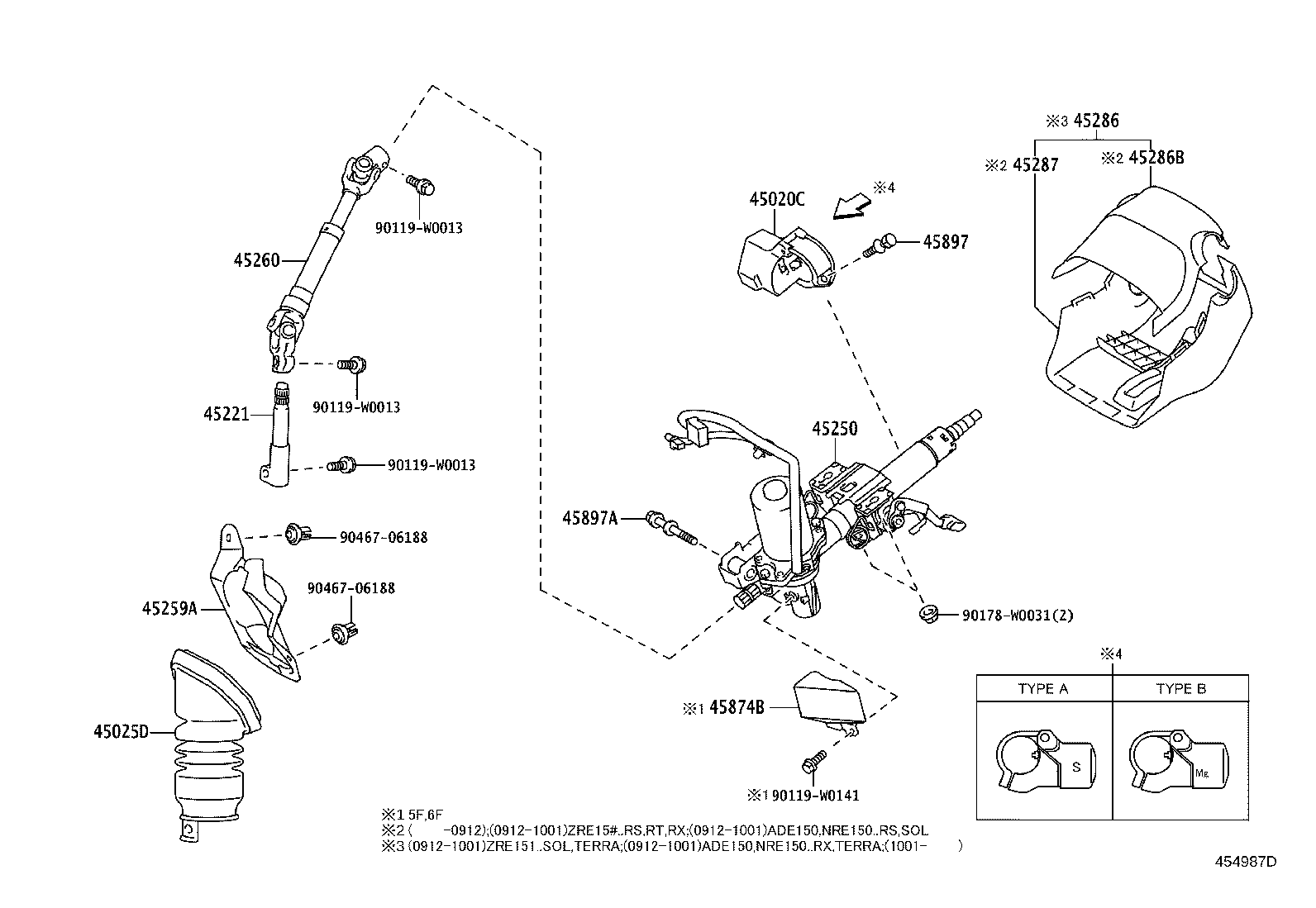

Steering Column & Shaft
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020 | Bracket Assy, Steering Column Upper W/Switch |
| 45020C | Actuator Assy, Steering Lock(W/ECU) |
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45221 | Shaft, Steering Intermediate |
| 45250 | Column Assy, Steering |
| 45259A | Sheet, Column Hole Cover Silencer |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45286 | Cover, Steering Column |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45874B | Protector, Steering Column, NO.1 |
| 45897 | Bolt, Steering Lock Set |
| 45897A | Bolt, Tilt Steering Pawl Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
