Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

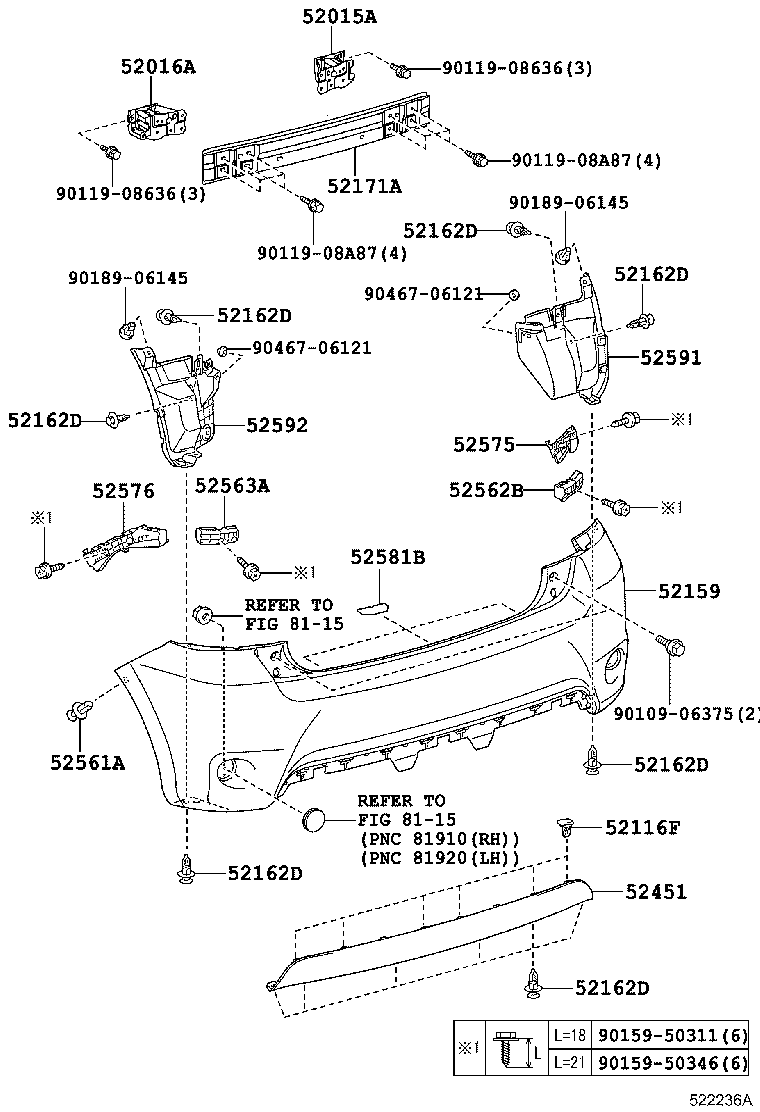

Rear Bumper & Bumper Stay
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52016A | Arm Sub-assy, Rear Bumper, LH |
| 52116F | Retainer, Rear Bumper |
| 52159 | Cover, Rear Bumper |
| 52162D | Piece, Rear Bumper |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52451 | Guard, Rear Bumper |
| 52561A | Clip(FOR REAR BUMPER RETAINER) |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52581B | Protector, Rear Bumper |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
