Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

2 part groups · 3 illustrations

Illustrations

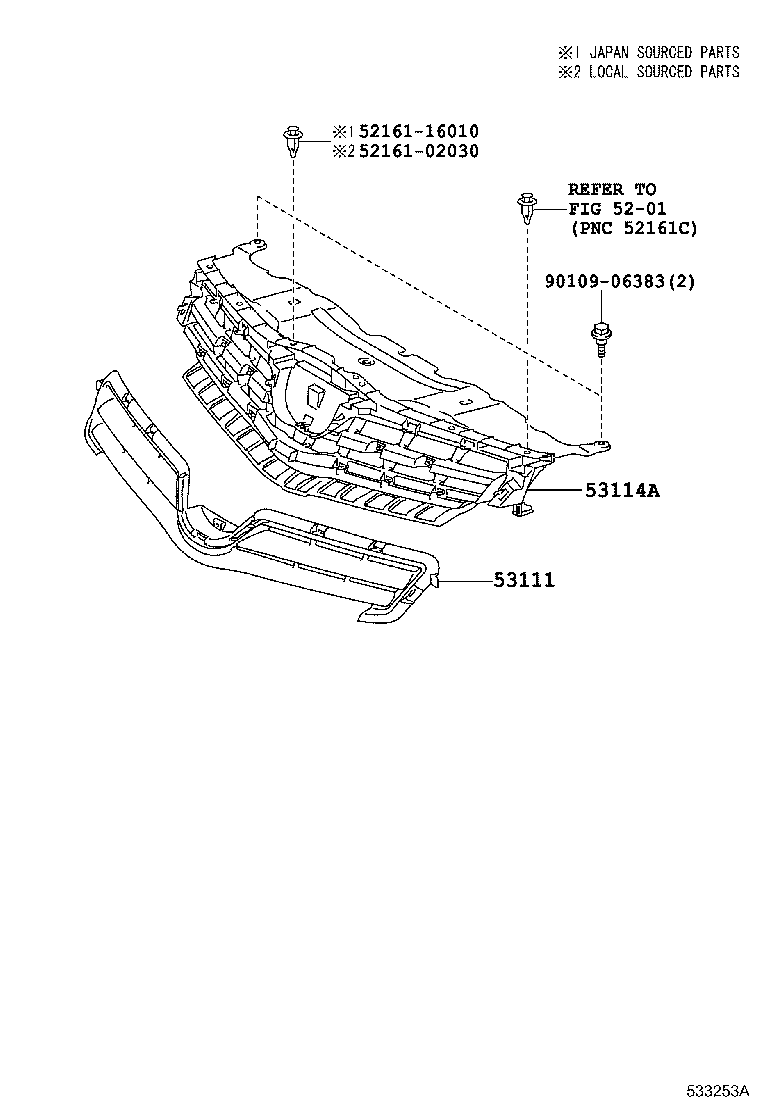

Figure 532483D 532483D 2007-02 → 2009-12 Figure 532483D 532483D 2009-12 → 2010-01 Figure 533253A 533253A 2009-12 → —

Part groups

PNCDescription
53111 Grille, Radiator
53114A Grille, Radiator, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
