Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

22 part groups · 5 illustrations

Illustrations

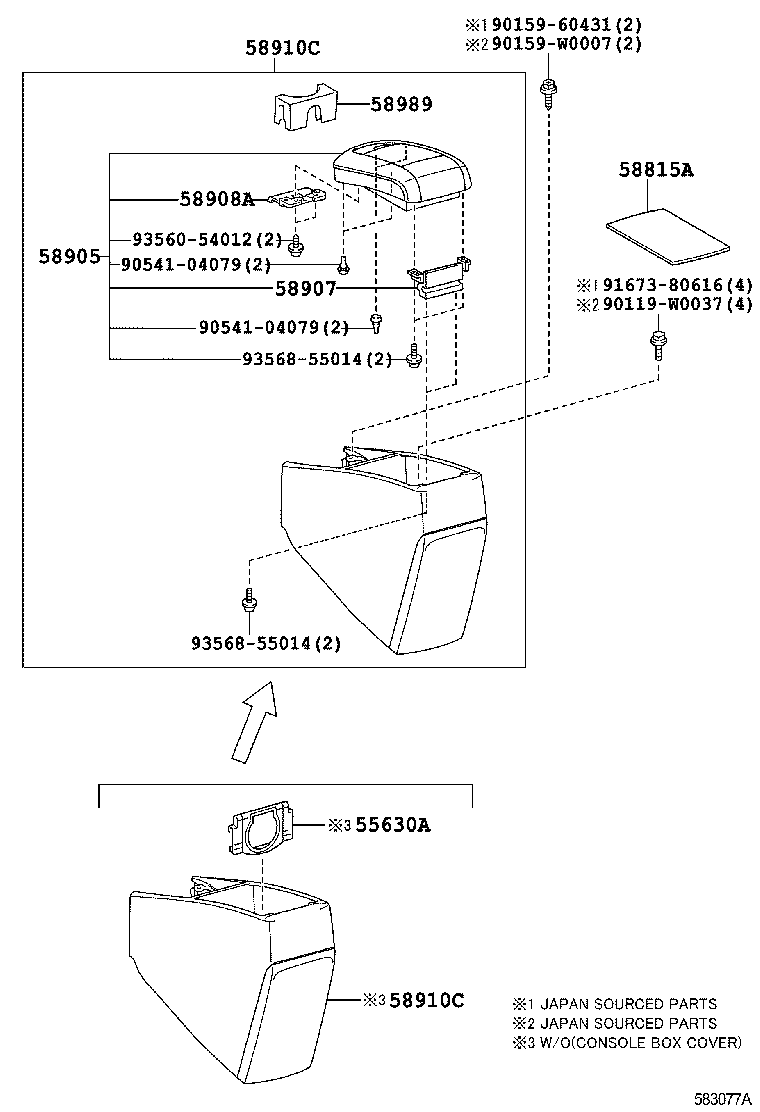

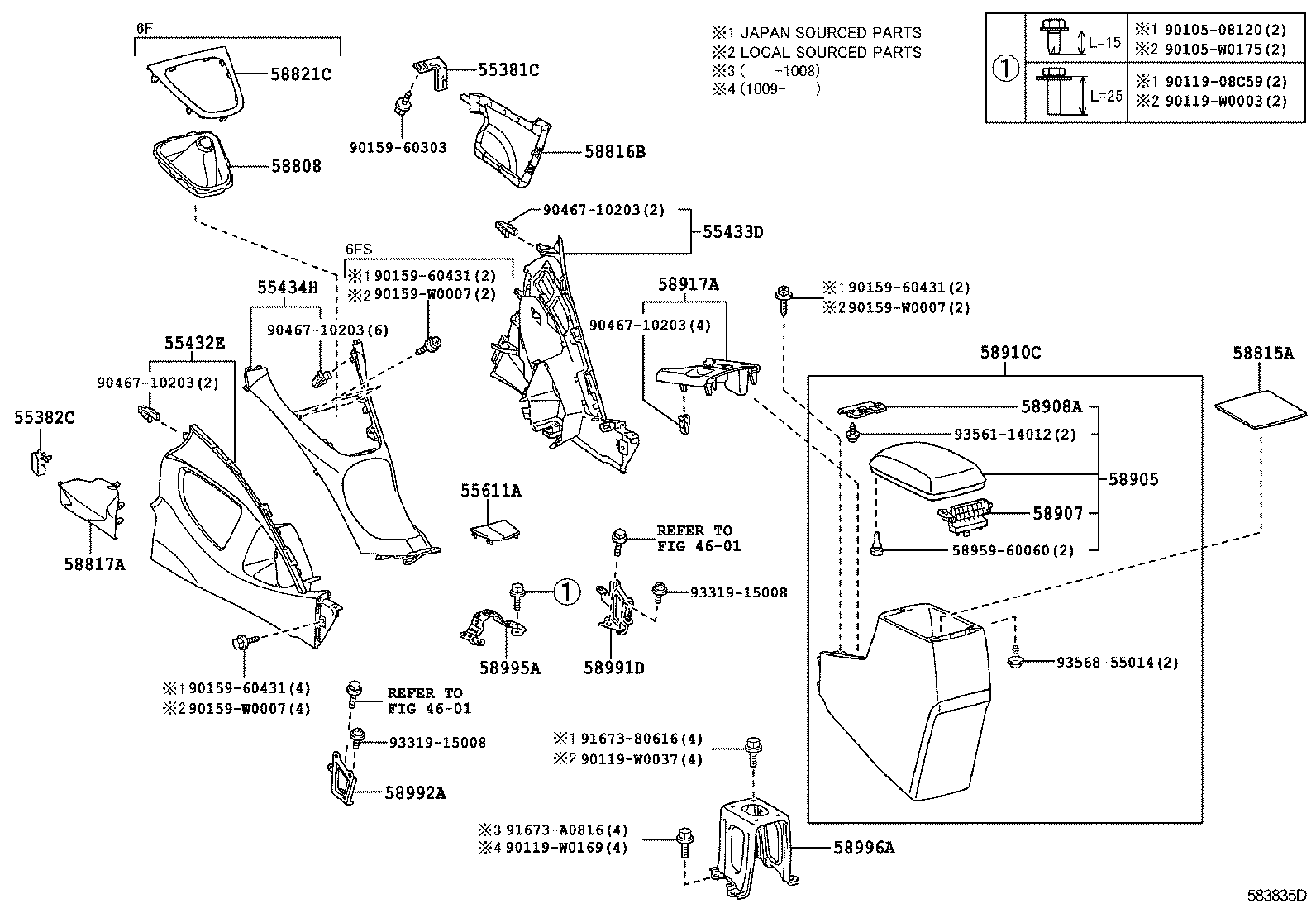

Figure 583076E 583076E 2007-06 → 2009-12 Figure 583076E 583076E 2007-06 → 2010-01 Figure 583077A 583077A 2007-06 → 2009-12 Figure 583077A 583077A 2007-06 → 2010-01 Figure 583835D 583835D 2009-12 → —

Part groups

PNCDescription
55381C Bracket, Finish Panel Mounting, NO.1
55382C Bracket, Finish Panel Mounting, NO.2
55432E Panel, Instrument Panel Finish, Lower NO.1
55433D Panel, Instrument Panel Finish, Lower NO.2
55434H Panel, Instrument Panel Finish, Lower Center
55611A Tray, Instrument Panel Under
55630A Holder, Rear Console Box, Cup
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58917A Cover, Console Box, Rear
58989 Panel, Console Compartment Door
58991D Bracket, Console Box Mounting, Upr RH
58992A Bracket, Console Box Mounting, Upr LH
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
