Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

10 part groups · 2 illustrations

Illustrations

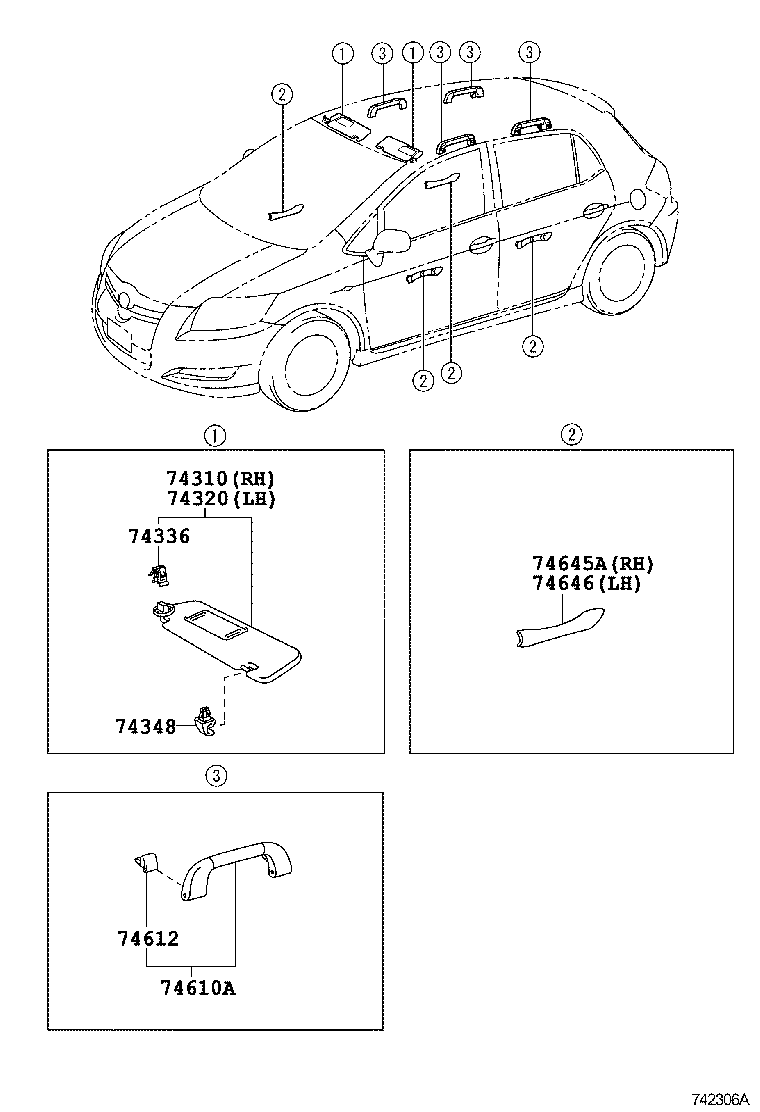

Figure 742305A 742305A 2007-06 → — Figure 742306A 742306A 2007-06 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74336 Clip, Visor Arm Set
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74645A Cover, Door Assist Grip, RH
74646 Cover, Door Assist Grip, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
