Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

8 part groups · 3 illustrations

Illustrations

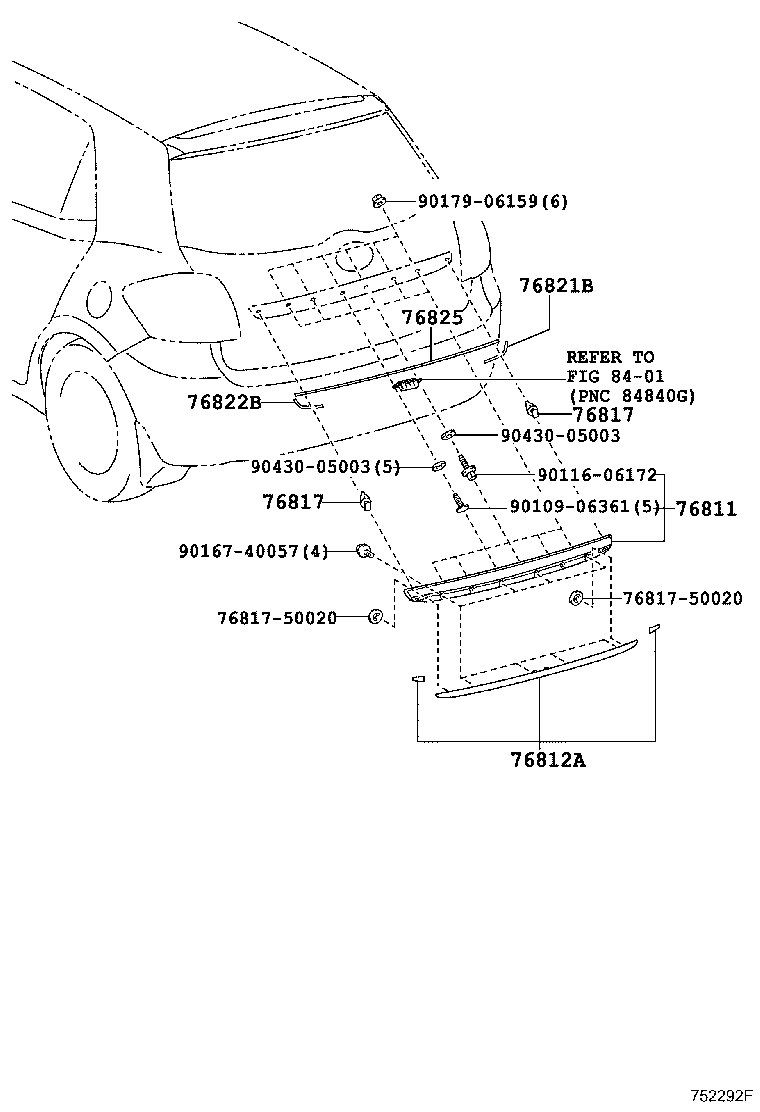

Figure 751880F 751880F 2007-06 → 2009-12 Figure 751880F 751880F 2007-06 → 2010-01 Figure 752292F 752292F 2009-12 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76811 Garnish, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
