Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

55 part groups · 15 illustrations

Illustrations

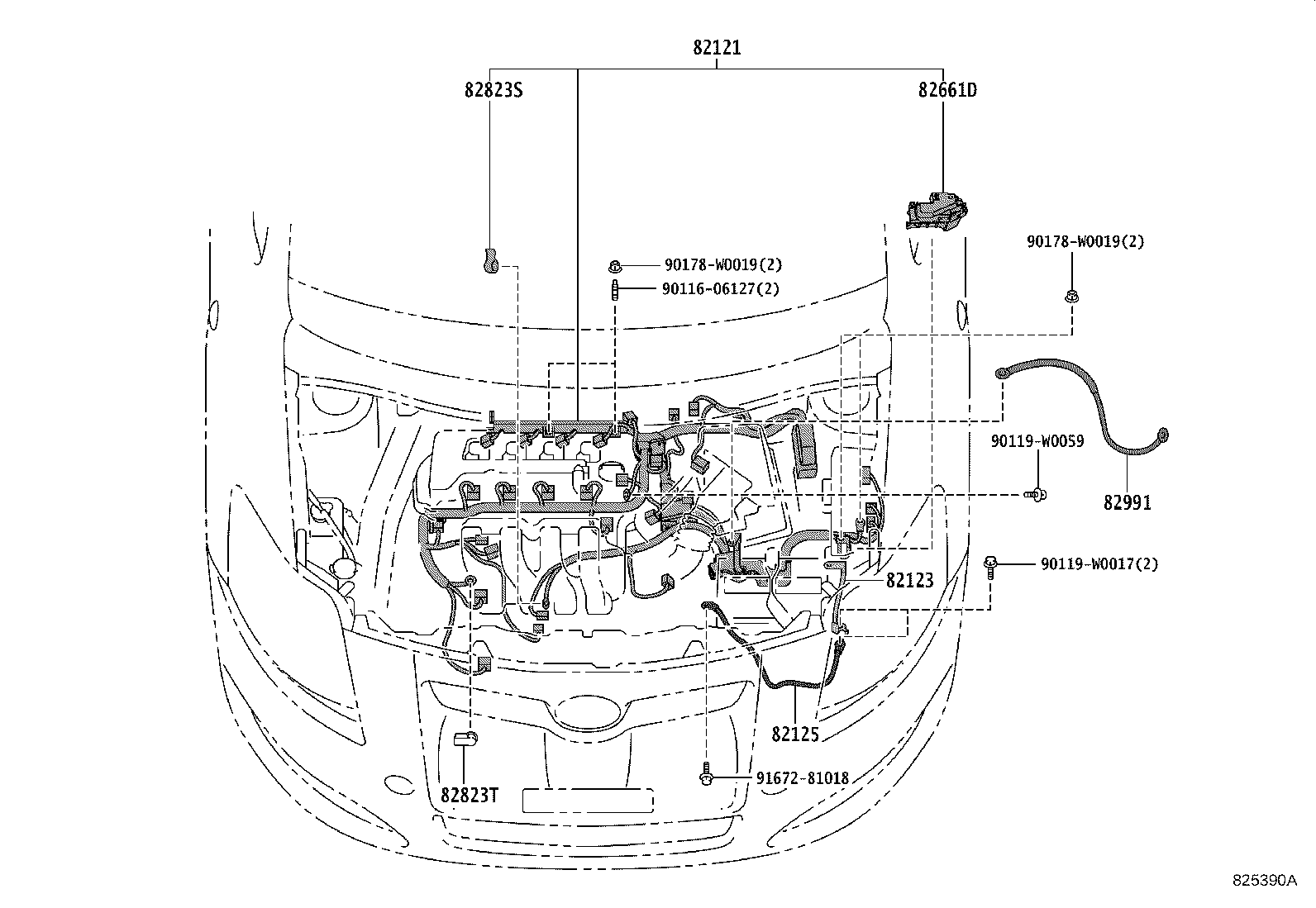

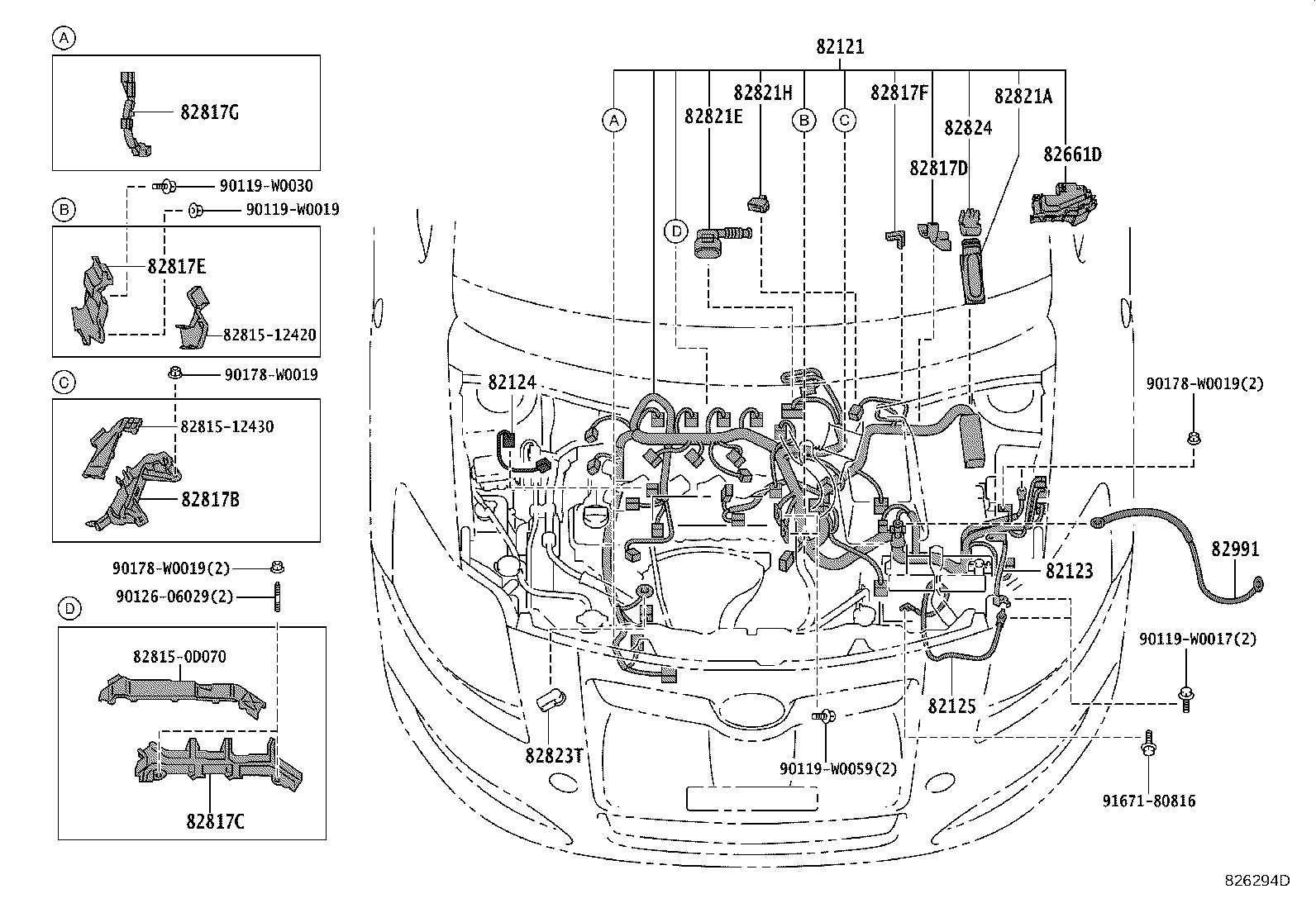

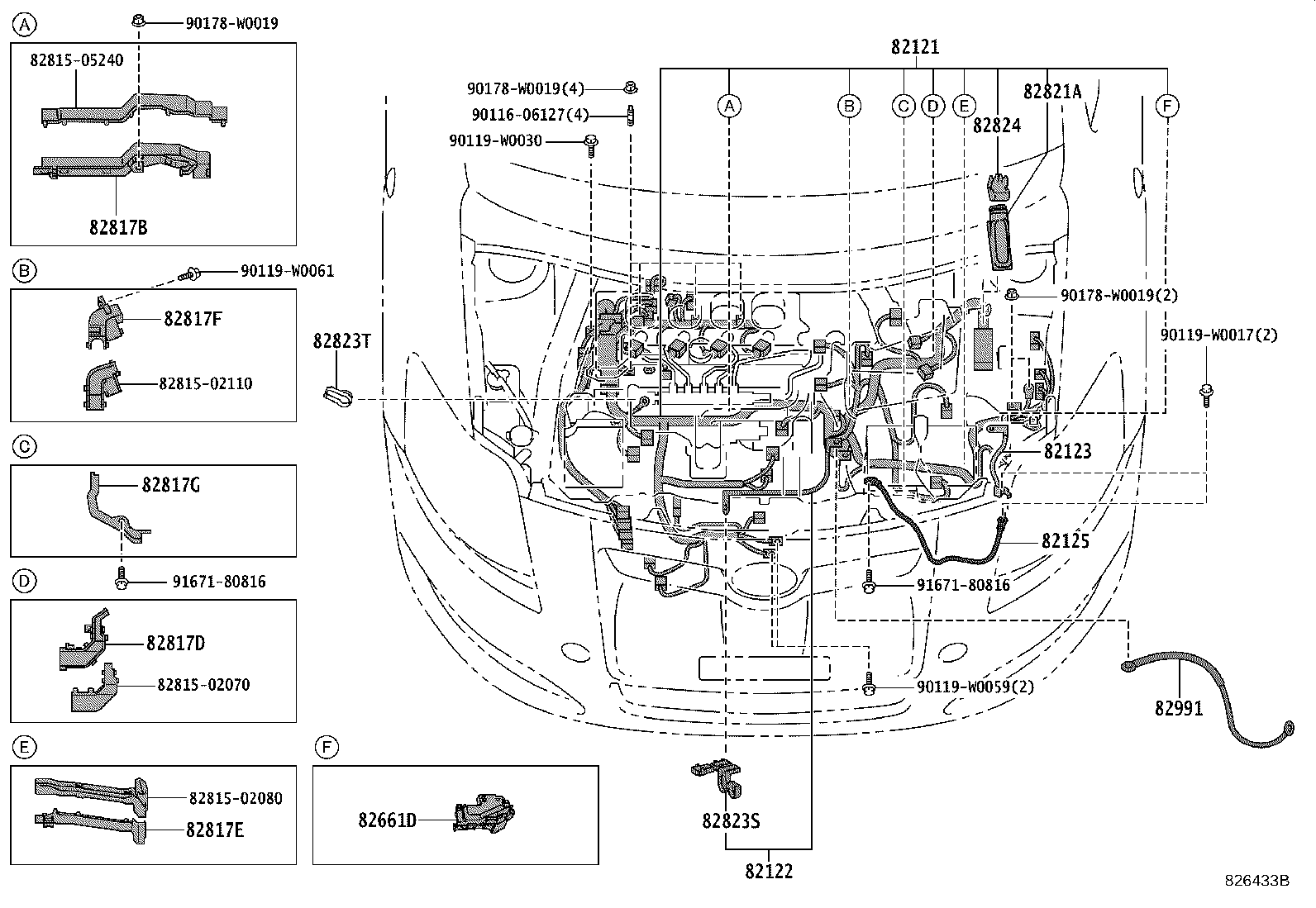

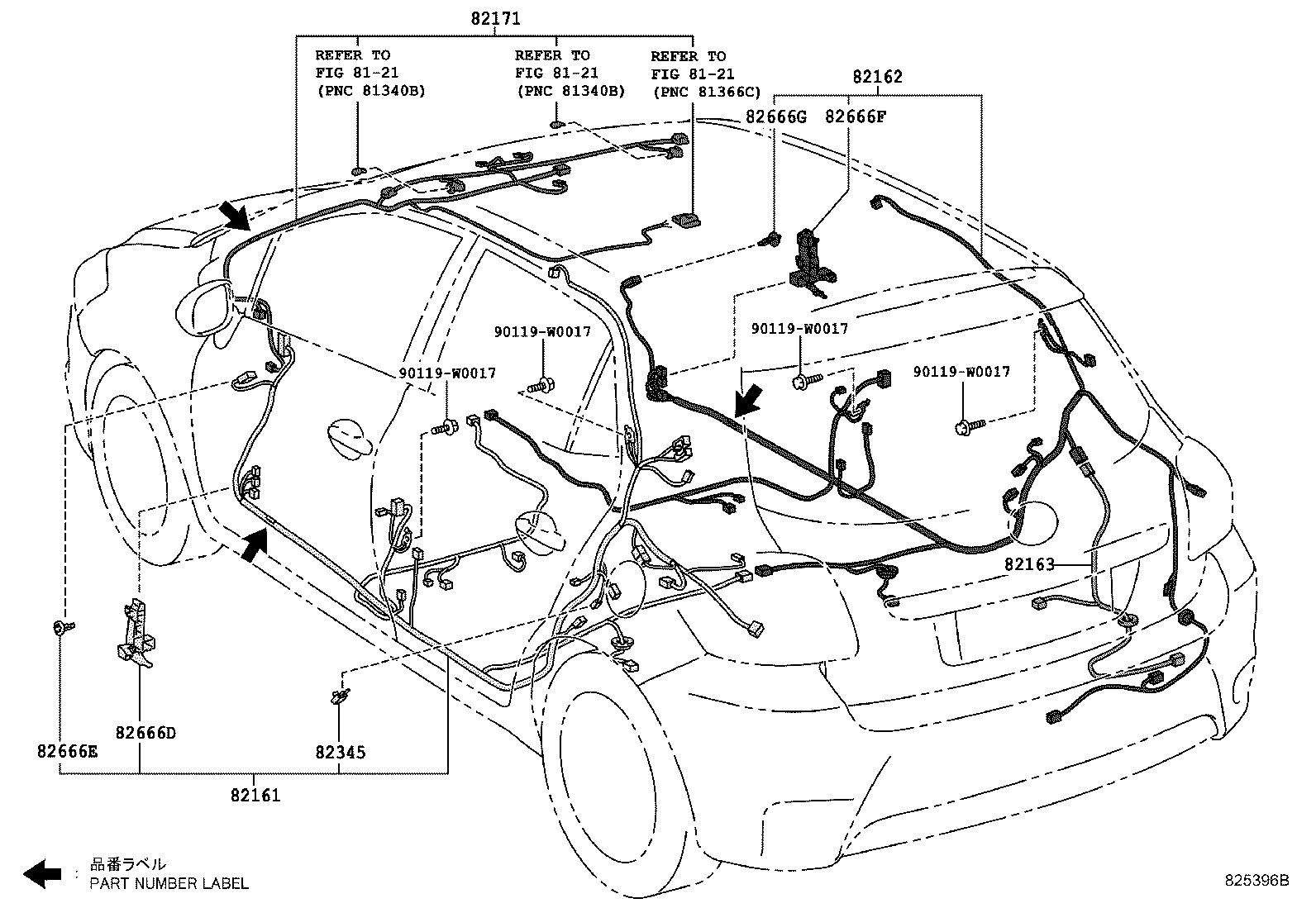

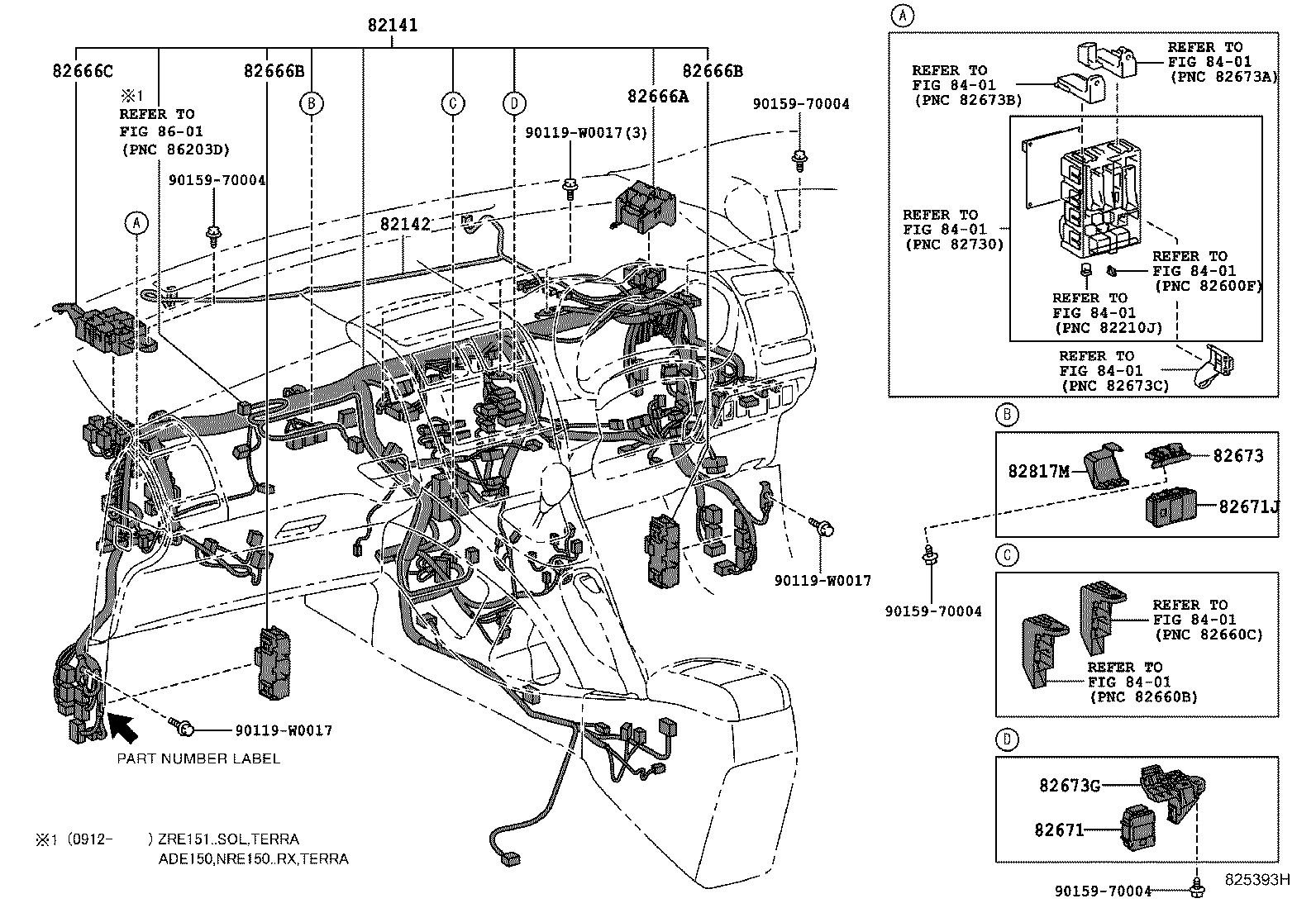

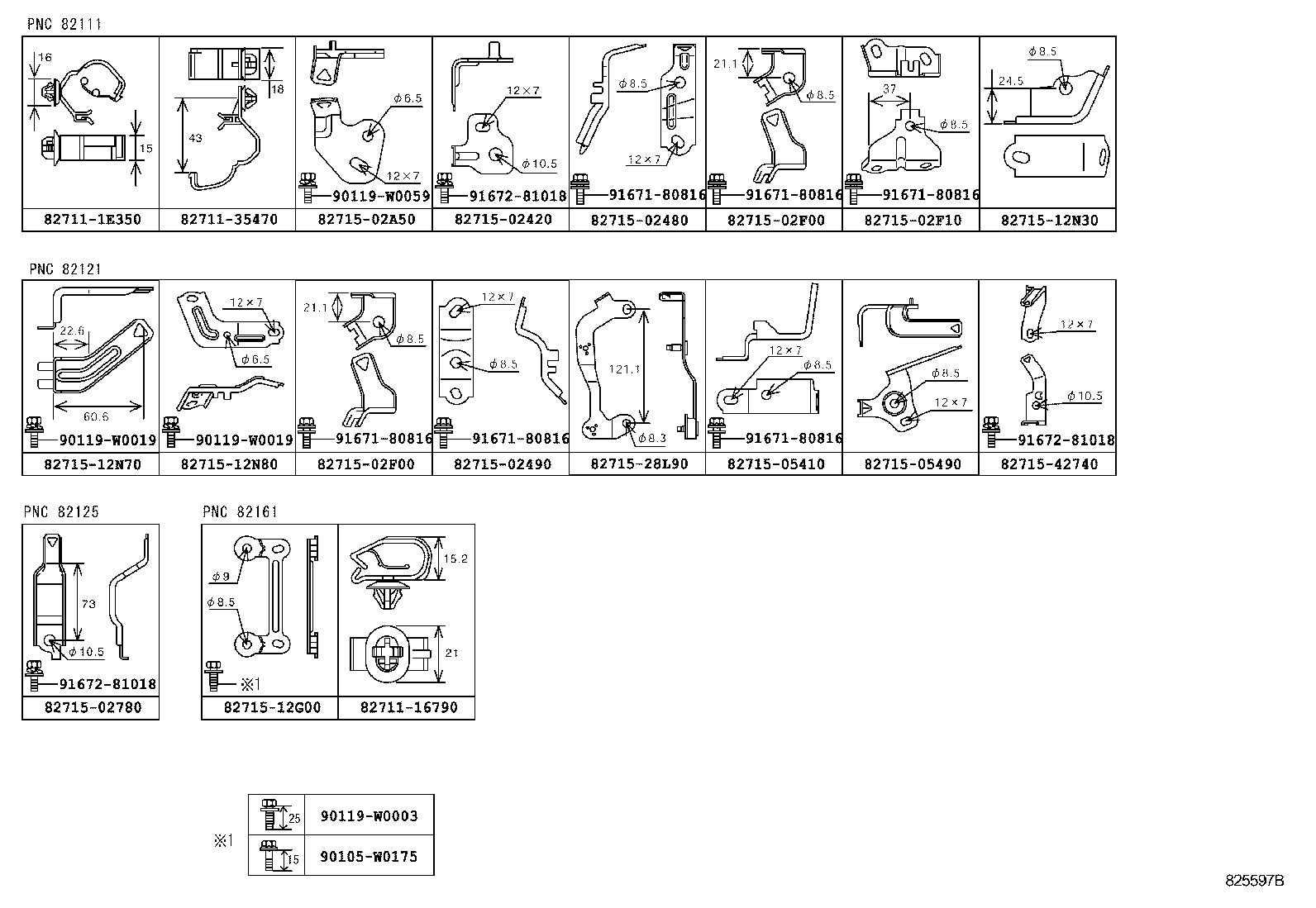

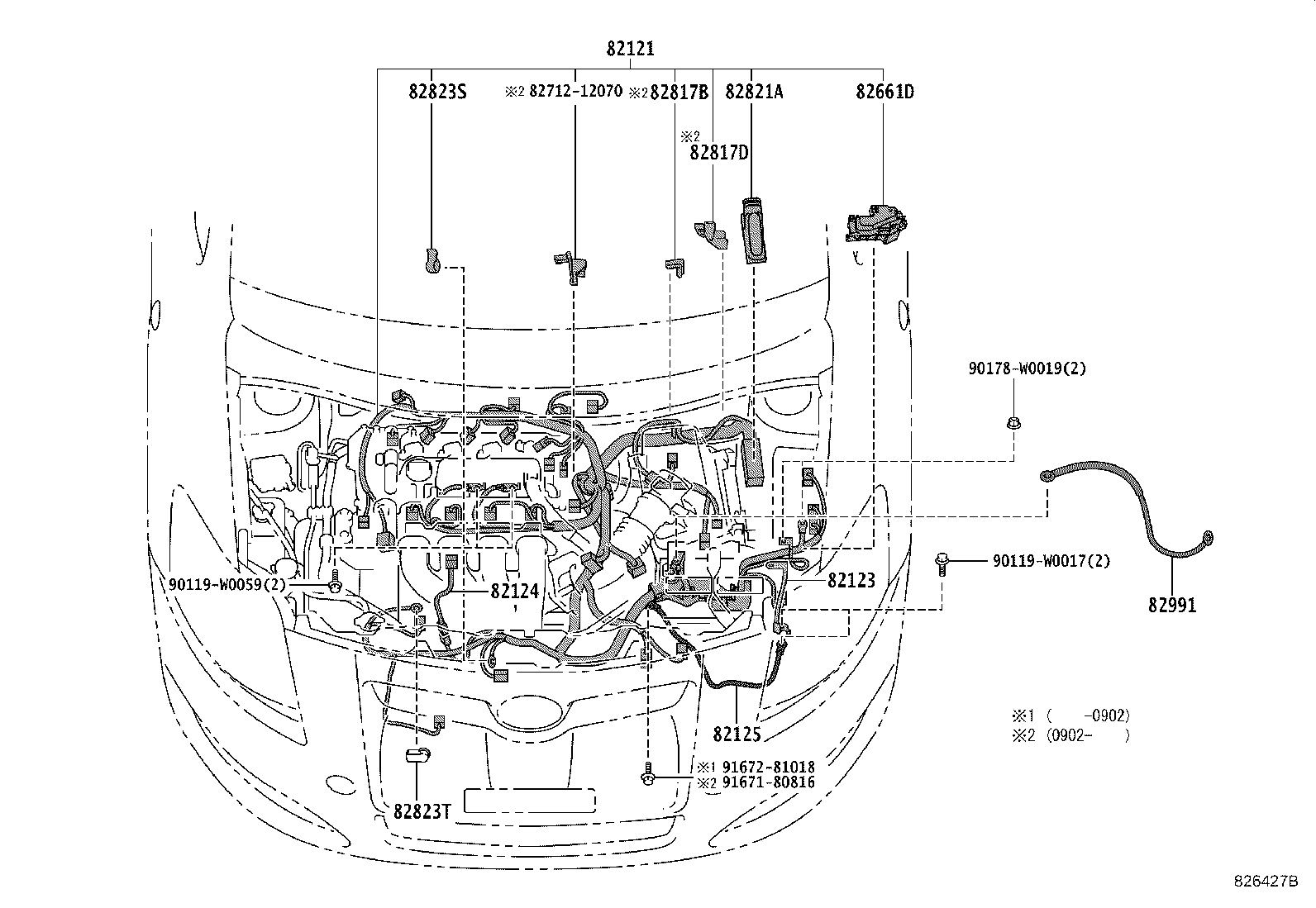

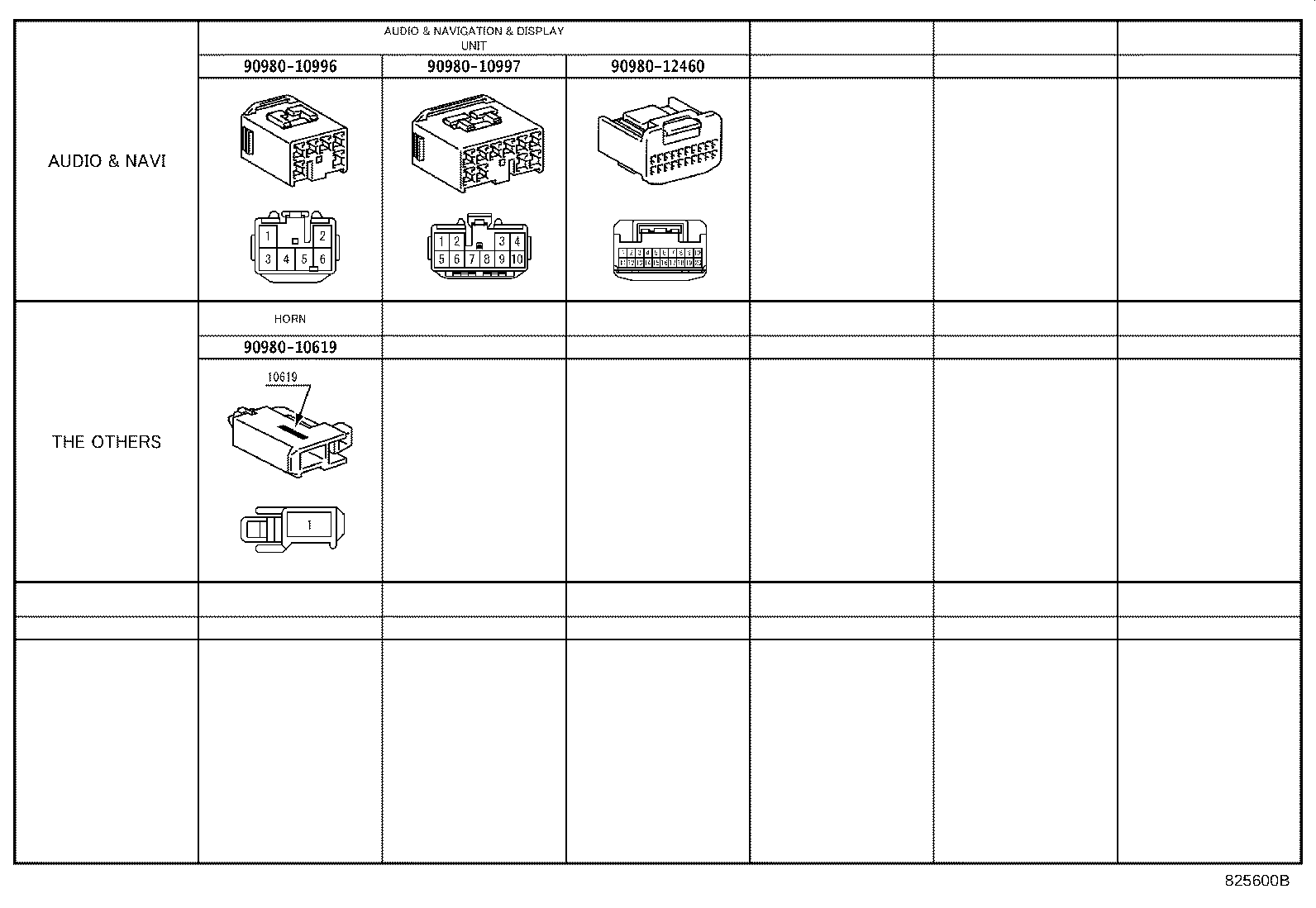

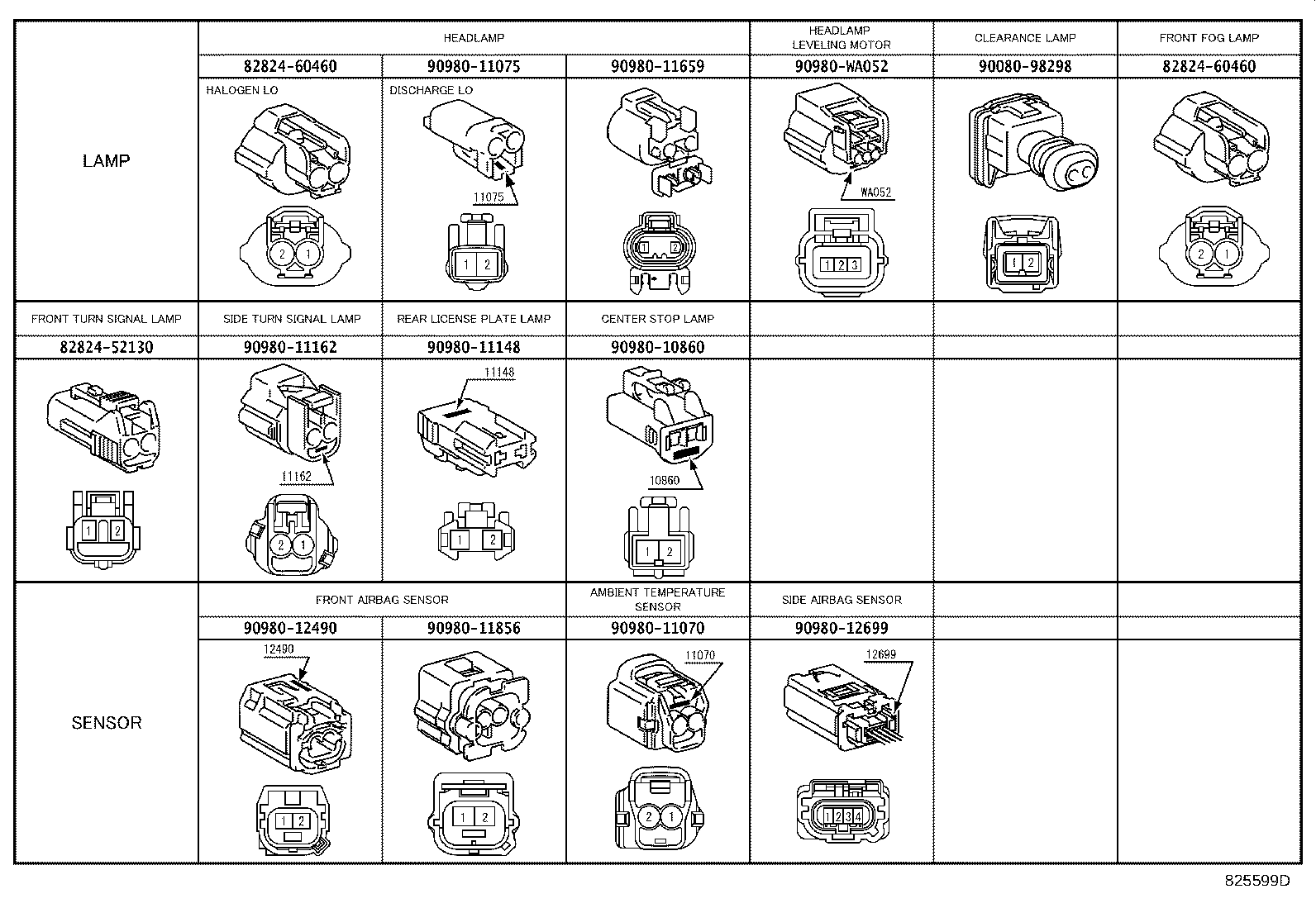

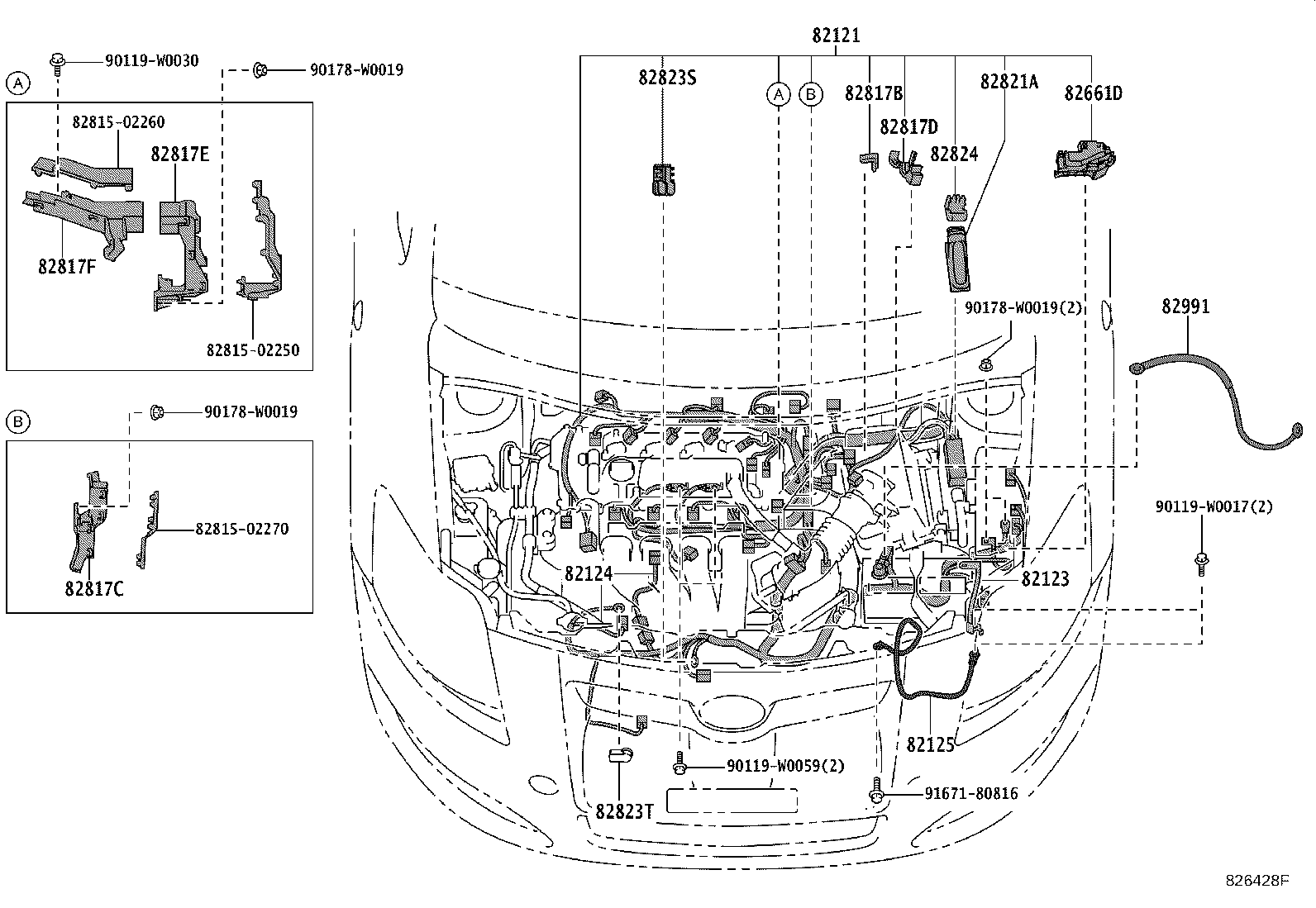

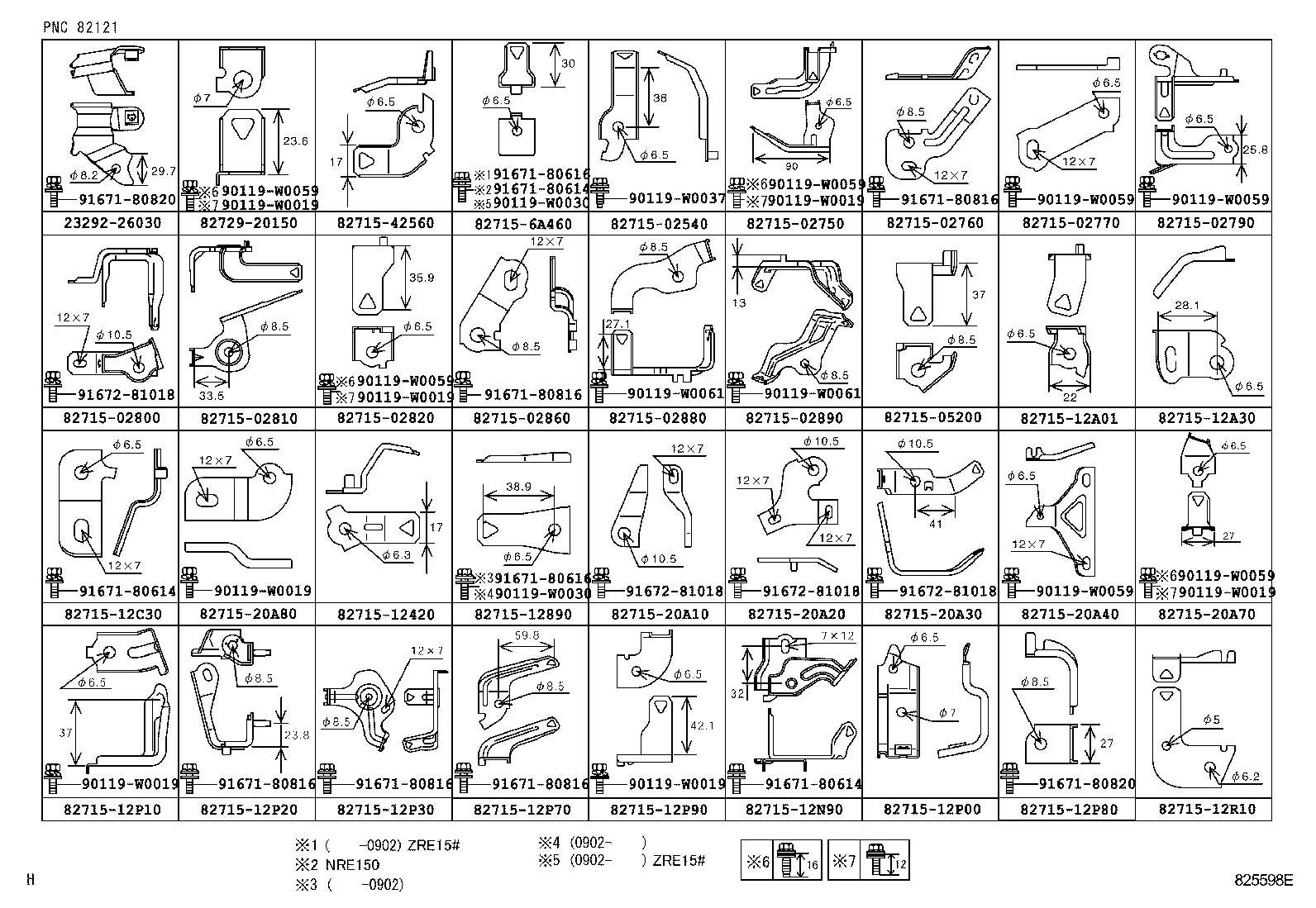

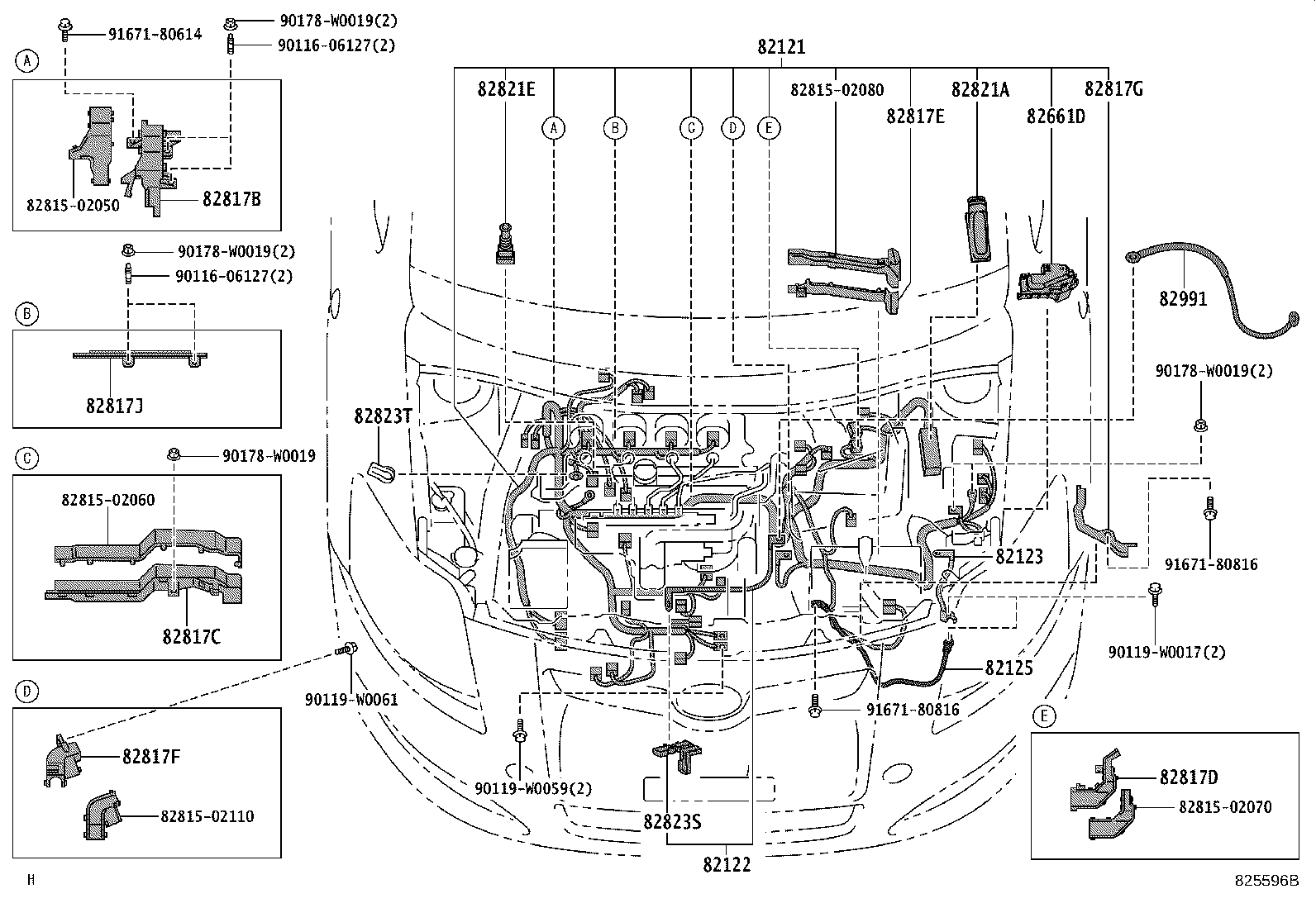

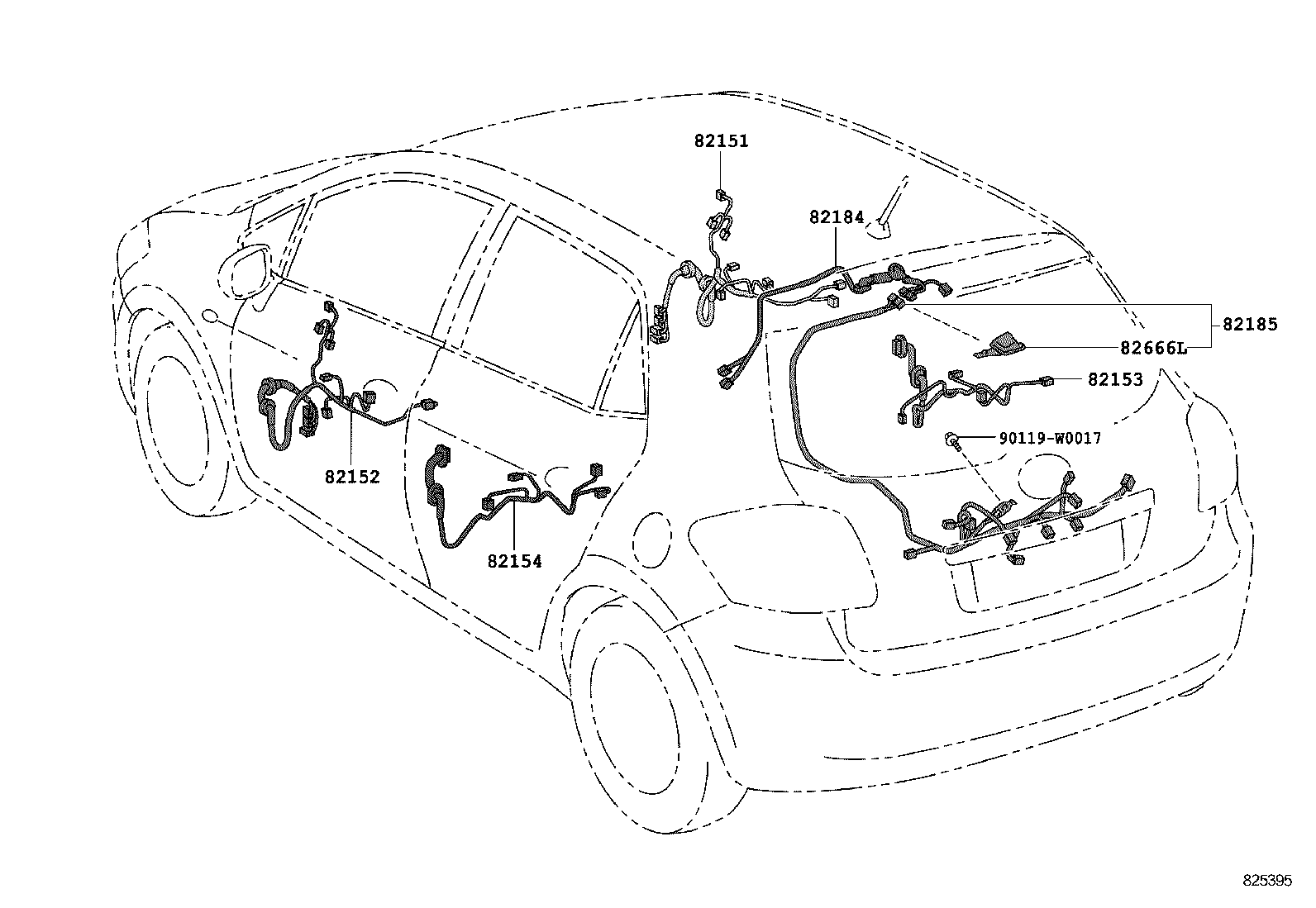

Figure 825387I 825387I 2007-06 → — Figure 825390A 825390A 2007-06 → 2008-11 Figure 825596B 825596B 2007-06 → 2009-03 Figure 826427B 826427B 2007-06 → 2010-01 Figure 826294D 826294D 2008-11 → — Figure 826428F 826428F 2009-02 → 2009-12 Figure 826428F 826428F 2009-12 → — Figure 826433C 826433C 2009-03 → — Figure 825393H 825393H 2007-06 → — Figure 825395 825395 2007-06 → — Figure 825396B 825396B 2007-06 → — Figure 825597B 825597B 2007-06 → — Figure 825598E 825598E 2007-06 → — Figure 825599D 825599D 2007-06 → — Figure 825600B 825600B 2007-06 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82345 Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82671 Block, Junction
82671J Block, Junction, NO.2
82673 Bracket, Junction Block
82673G Bracket, Junction Block
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817M Protector, Wiring Harness, NO.12
82817T Protector, Wiring Harness, NO.15
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
