Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

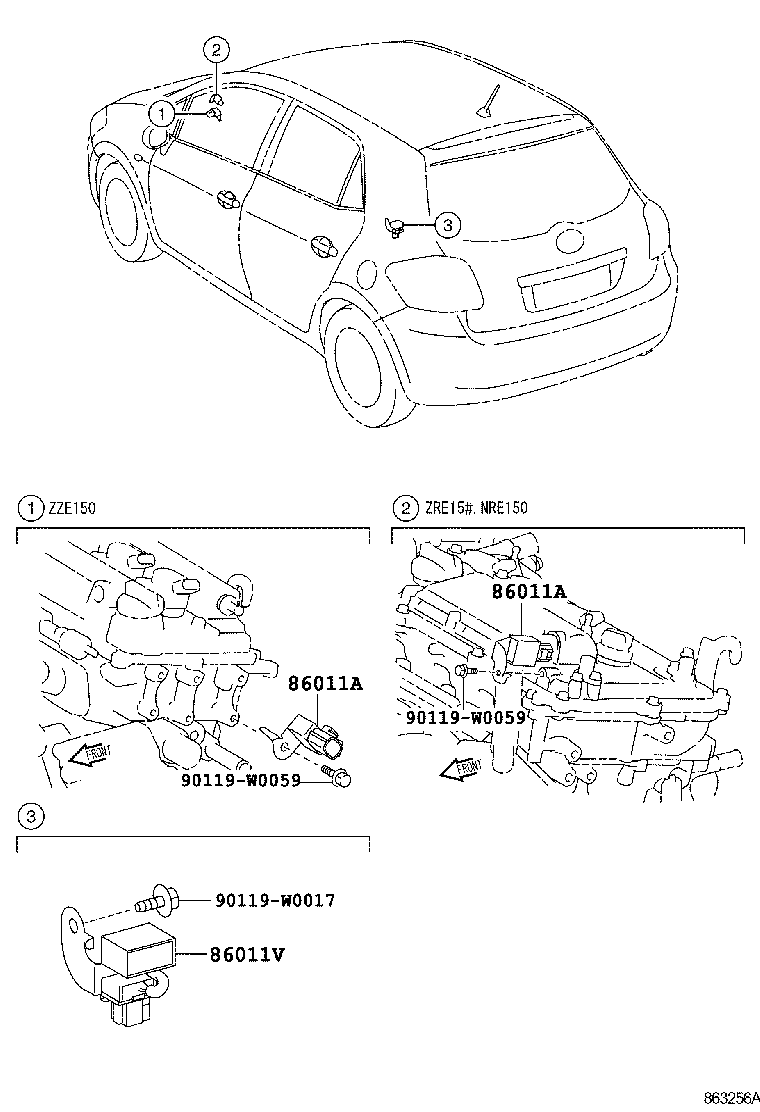

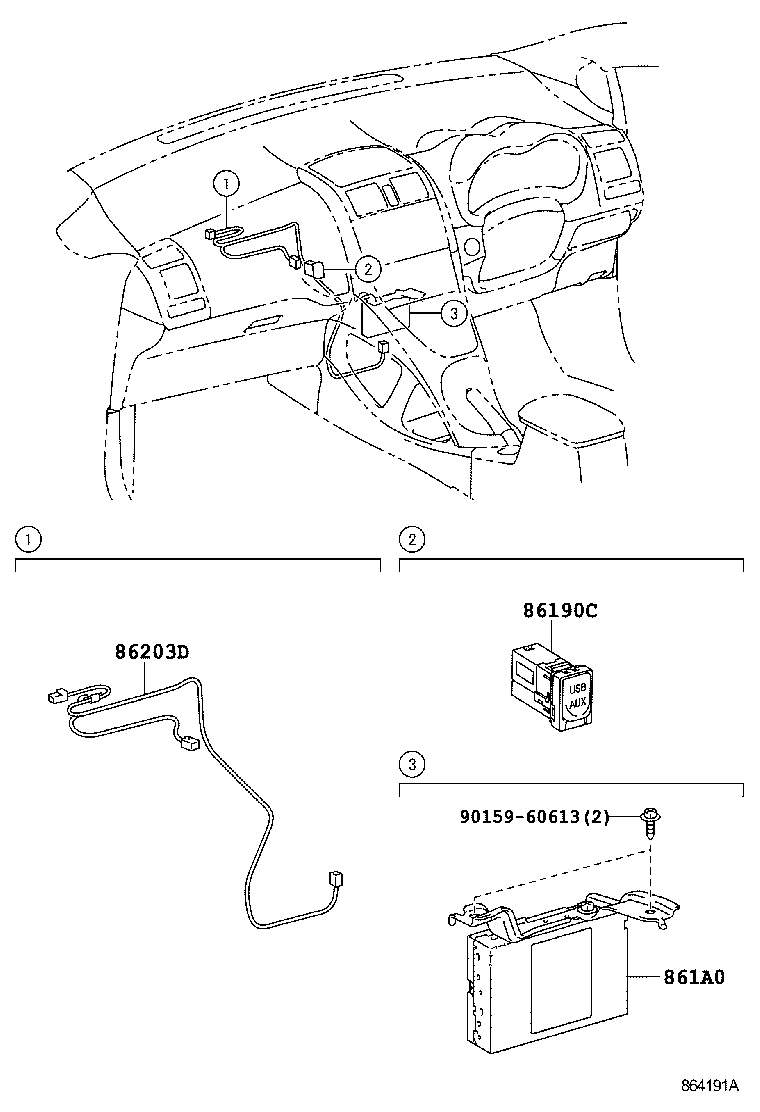

Figure 863255A 863255A 2007-06 → — Figure 864191A 864191A 2009-12 → — Figure 863256A 863256A 2007-06 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86190C Adapter Assy, Stereo Jack, NO.1
861A0 Computer Assy, Multi-media Interface
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
