Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

8 part groups · 3 illustrations

Illustrations

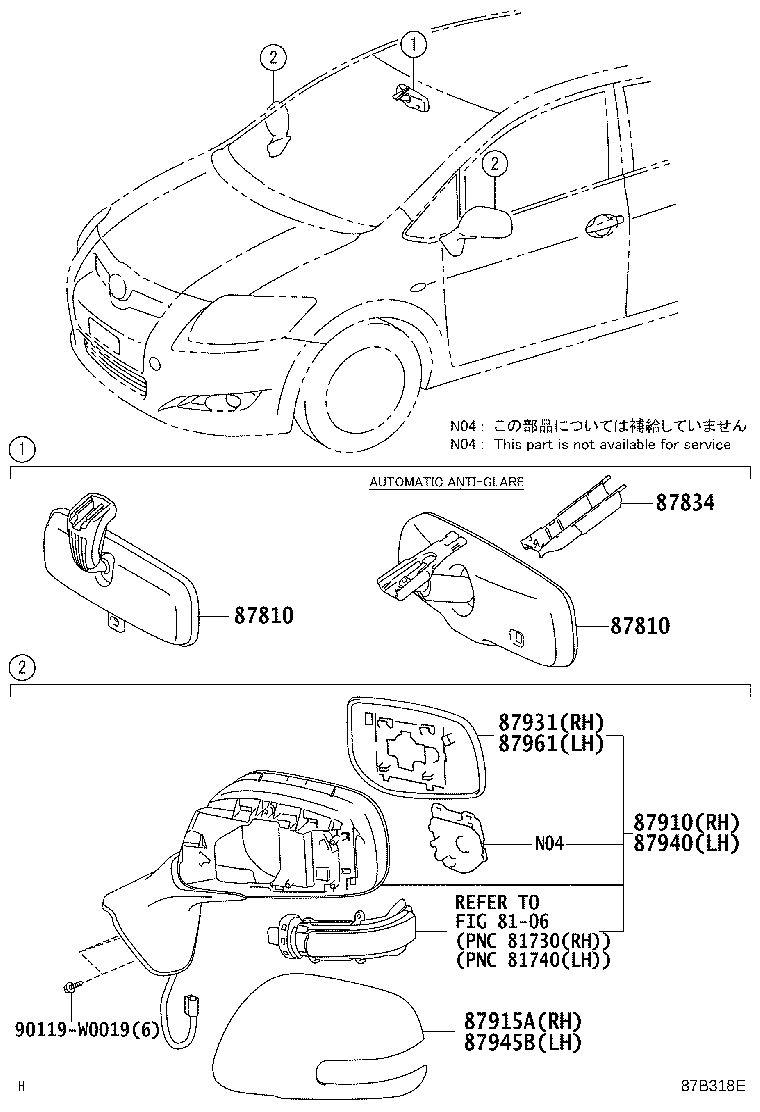

Figure 879234D 879234D 2007-06 → 2009-12 Figure 879234D 879234D 2009-12 → 2010-01 Figure 87B318E 87B318E 2009-12 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87910 Mirror Assy, Outer Rear View, RH
87915A Cover, Outer Mirror, RH
87931 Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87945B Cover, Outer Mirror, LH
87961 Mirror Outer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
