Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

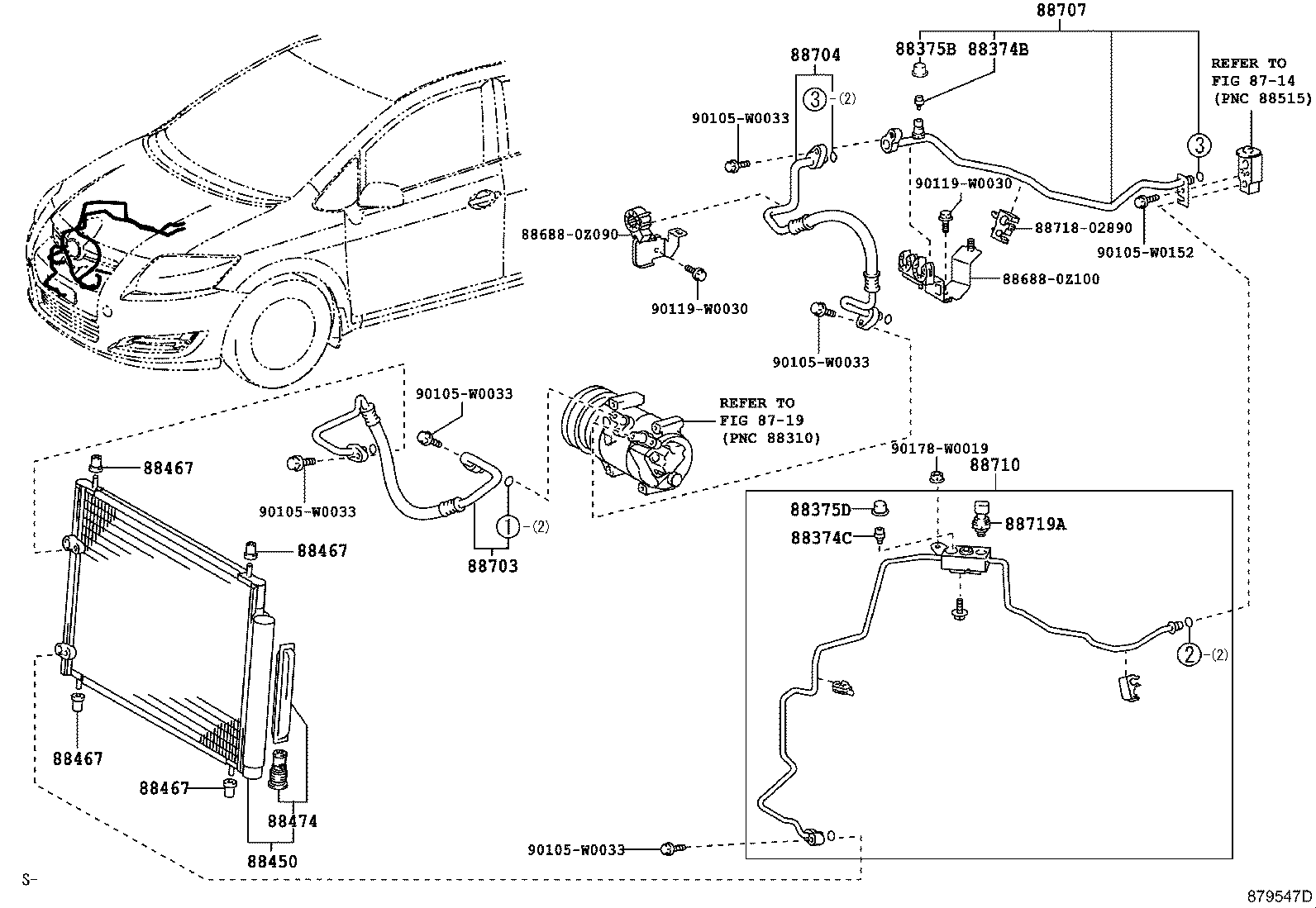

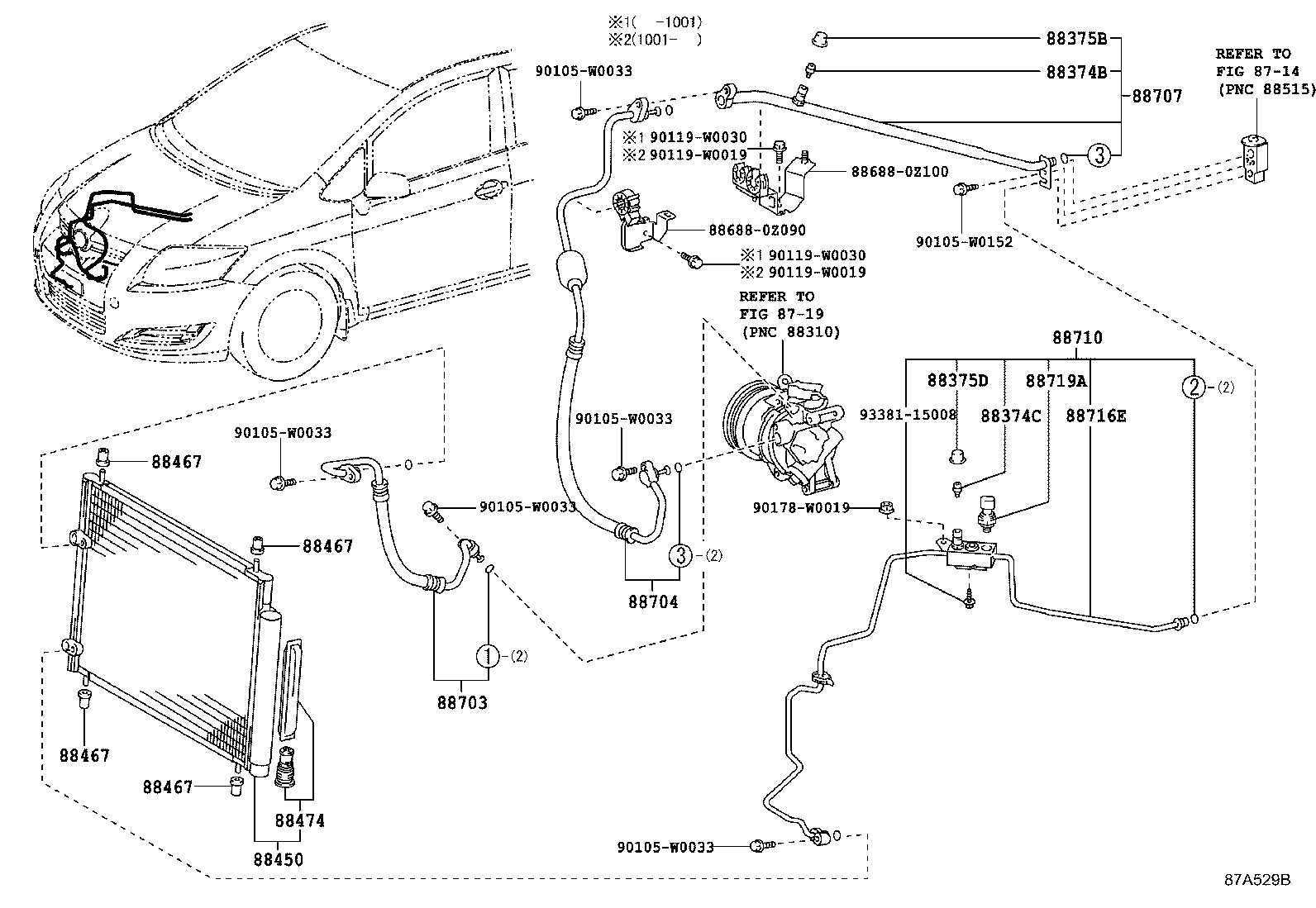

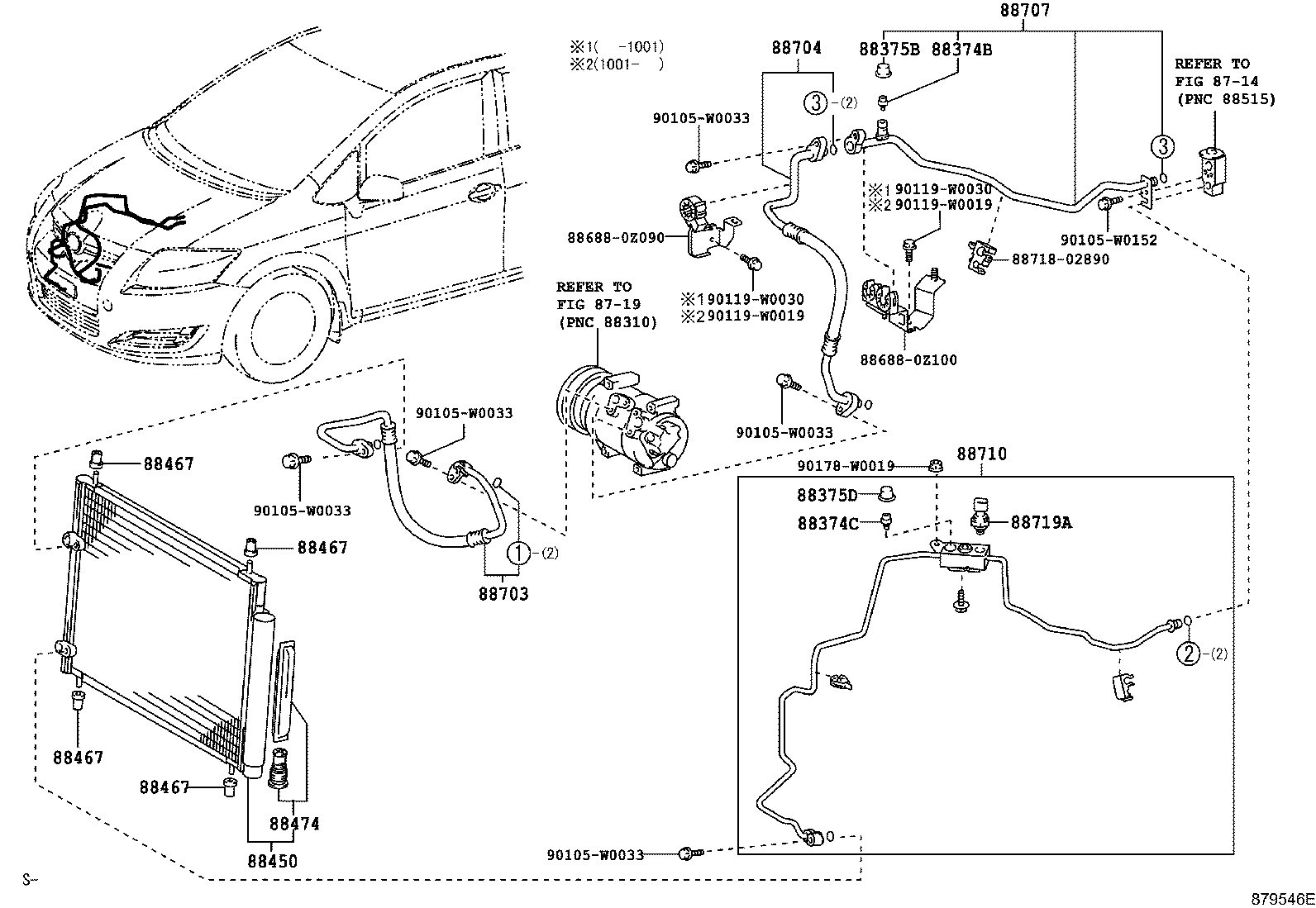

Heating & Air Conditioning - Cooler Piping
13 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88450 | Condenser Assy, W/Receiver |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88474 | Dryer, Cooler |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88707 | Pipe Sub-assy, Suction |
| 88710 | Tube Assy, Air Conditioner |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
