Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

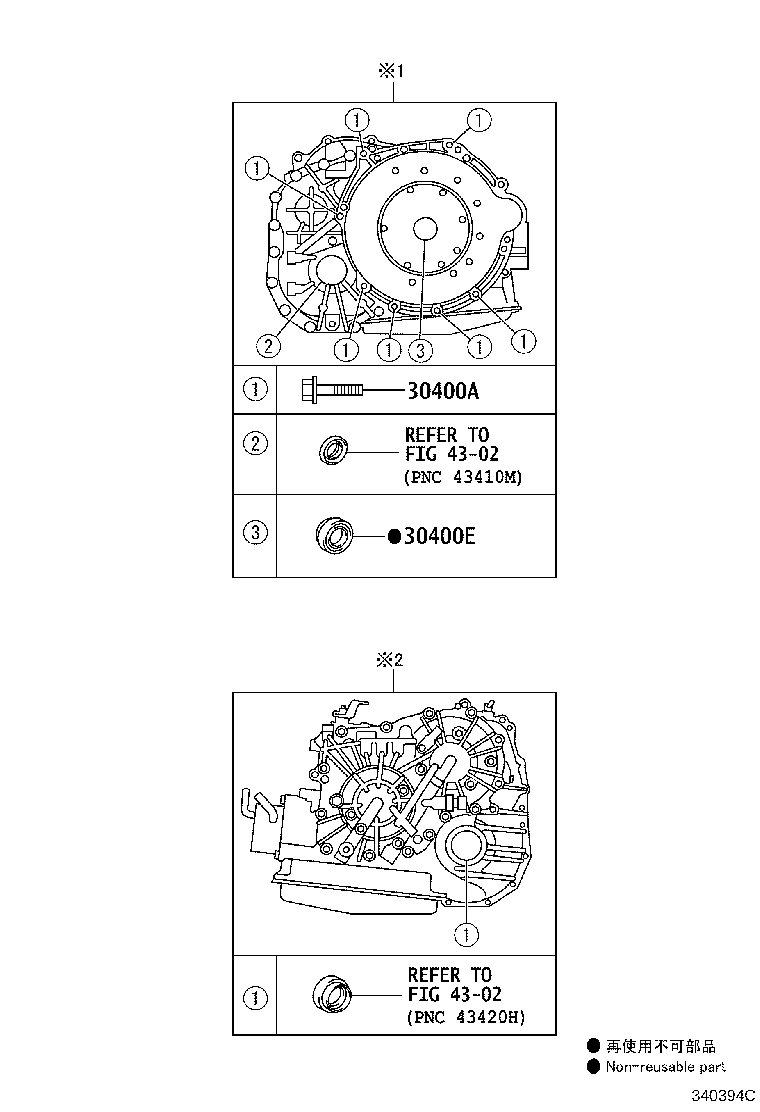

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30400A — Bolt(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-W0155 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90119-W0155 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2015-05 → —
|
ZRE181 CVT | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2015-05 → —
|
ZRE181 CVT | — | |
| 30400E — Seal, Type T Oil(FOR CVT OIL PUMP) | ||||
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2015-05 → —
|
ZRE181 CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
