Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

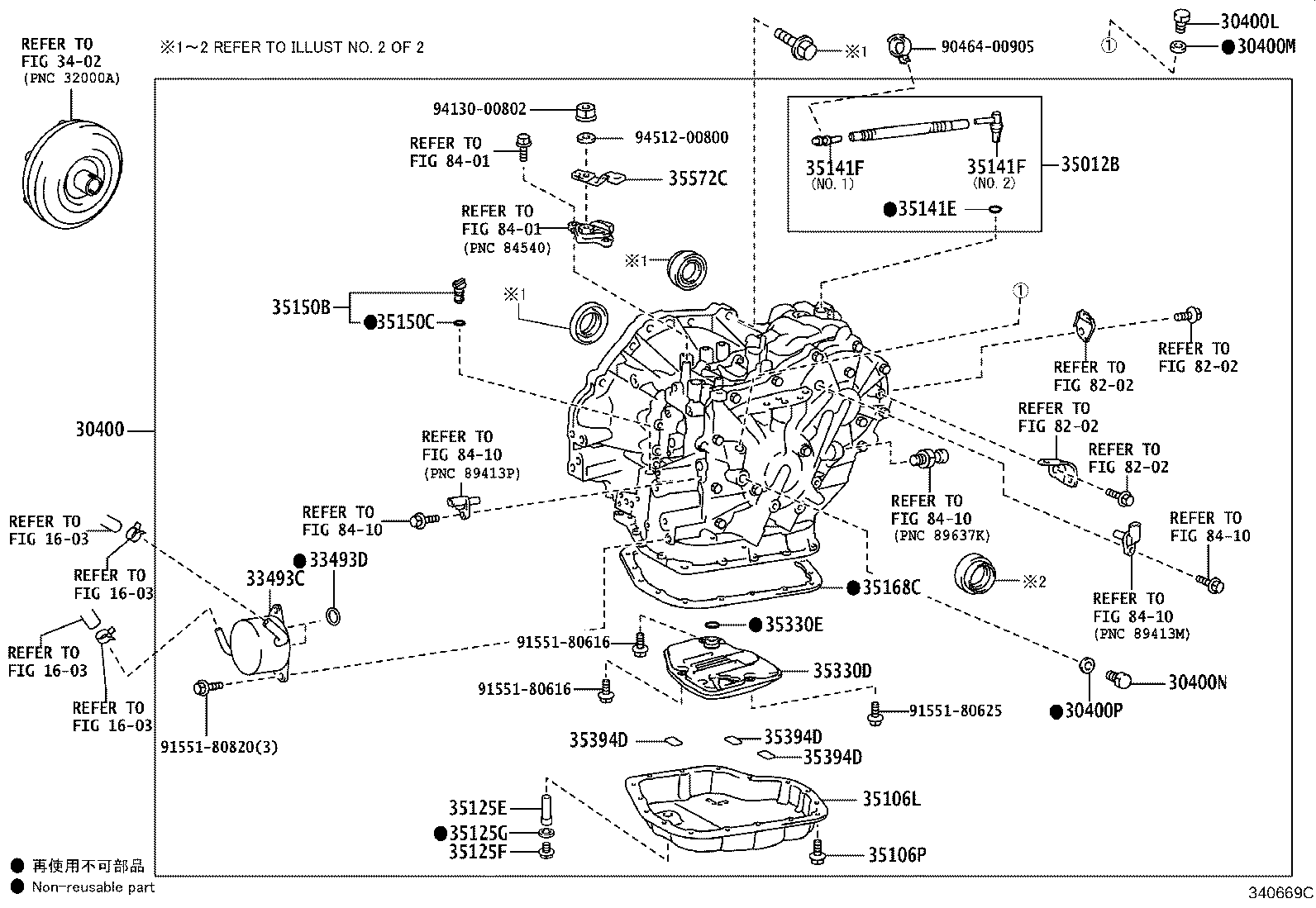

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30400 — Transaxle Assy, Continuously Variable | ||||
| 30400-20020 note |
Transaxle Assy, Continuously Variable
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 30400-20110 note |
Transaxle Assy, Continuously Variable
2015-05 → —
|
ZRE181 CVT | — | |
| 30400L — Plug , Filler(CVT) | ||||
| 90341-12025 |
Plug , Filler(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90341-12025 |
Plug , Filler(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 30400M — Gasket, Filler Plug(CVT) | ||||
| 90430-12221 |
Gasket, Filler Plug(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90430-12221 |
Gasket, Filler Plug(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 30400N — Plug, Refill(CVT) | ||||
| 90341-18077 |
Plug, Refill(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90341-18077 |
Plug, Refill(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 30400P — Gasket, Refill Plug(CVT) | ||||
| 90430-18008 |
Gasket, Refill Plug(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90430-18008 |
Gasket, Refill Plug(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 33493C — Cooler, Transmission Oil | ||||
| 33493-20100 |
Cooler, Transmission Oil
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 33493-52030 |
Cooler, Transmission Oil
2015-05 → —
|
ZRE181 CVT | — | |
| 33493D — Ring, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90301-20012 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2015-05 → —
|
ZRE181 CVT | — | |
| 35012B — Hose Sub-assy, Transmission Breather | ||||
| 35012-12100 |
Hose Sub-assy, Transmission Breather
2015-05 → —
|
ZRE181 CVT | — | |
| 35106L — Pan Sub-assy, Transaxle Oil(CVT) | ||||
| 35106-20040 |
Pan Sub-assy, Transaxle Oil(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 35106-12210 |
Pan Sub-assy, Transaxle Oil(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 35106P — Bolt(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
Bolt(FOR TRANSAXLE OIL PAN)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90119-06173 |
Bolt(FOR TRANSAXLE OIL PAN)
2015-05 → —
|
ZRE181 CVT | — | |
| 35125E — Tube, Overflow(CVT) | ||||
| 35125-20490 |
Tube, Overflow(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 35125-12480 |
Tube, Overflow(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 35125F — Plug, Overflow(CVT) | ||||
| 90341-12034 |
Plug, Overflow(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90341-12034 |
Plug, Overflow(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 35125G — Gasket, Overflow Plug(CVT) | ||||
| 90430-12008 |
Gasket, Overflow Plug(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90430-12008 |
Gasket, Overflow Plug(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 35141E — Ring, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
Ring, O(FOR BREATHER PLUG)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90301-06005 |
Ring, O(FOR BREATHER PLUG)
2015-05 → 2016-04
ended
|
ZRE181 CVT | — | |
| 90301-06021 |
Ring, O(FOR BREATHER PLUG)
2016-05 → —
|
ZRE181 CVT | — | |
| 35141F — Plug, Breather, NO.1(CVT) | ||||
| 90930-03191 note |
Plug, Breather, NO.1(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90930-03216 note |
Plug, Breather, NO.1(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90930-03191 note |
Plug, Breather, NO.1(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 90930-03216 note |
Plug, Breather, NO.1(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 35150B — Plug Assy, Transmission Case | ||||
| 35150-48010 |
Plug Assy, Transmission Case
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 35150-48010 |
Plug Assy, Transmission Case
2015-05 → —
|
ZRE181 CVT | — | |
| 35150C — Ring, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
Ring, O (FOR TRANSMISSION CASE PLUG)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90301-09173 |
Ring, O (FOR TRANSMISSION CASE PLUG)
2015-05 → —
|
ZRE181 CVT | — | |
| 35168C — Gasket, Transaxle Oil Pan(CVT) | ||||
| 35168-12090 |
Gasket, Transaxle Oil Pan(CVT)
2012-10 → 2014-02
ended
|
ZRE181 CVT | — | |
| 35168-12091 |
Gasket, Transaxle Oil Pan(CVT)
2014-02 → 2015-05
ended
|
ZRE181 CVT | — | |
| 35168-12091 |
Gasket, Transaxle Oil Pan(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 35330D — Strainer Assy, Oil | ||||
| 35330-0W080 |
Strainer Assy, Oil
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 35330-12050 |
Strainer Assy, Oil
2015-05 → —
|
ZRE181 CVT | — | |
| 35330E — Ring, O (FOR OIL STRAINER) | ||||
| 90301-22014 |
Ring, O (FOR OIL STRAINER)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 90301-22014 |
Ring, O (FOR OIL STRAINER)
2015-05 → 2016-04
ended
|
ZRE181 CVT | — | |
| 90301-22019 |
Ring, O (FOR OIL STRAINER)
2016-05 → —
|
ZRE181 CVT | — | |
| 35394D — Magnet, Oil Cleaner(CVT) | ||||
| 35394-30011 |
Magnet, Oil Cleaner(CVT)
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 35394-30011 |
Magnet, Oil Cleaner(CVT)
2015-05 → —
|
ZRE181 CVT | — | |
| 35572C — Lever, Transmission Control Shaft | ||||
| 35572-12160 |
Lever, Transmission Control Shaft
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 35572-12170 |
Lever, Transmission Control Shaft
2015-05 → —
|
ZRE181 CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
