Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

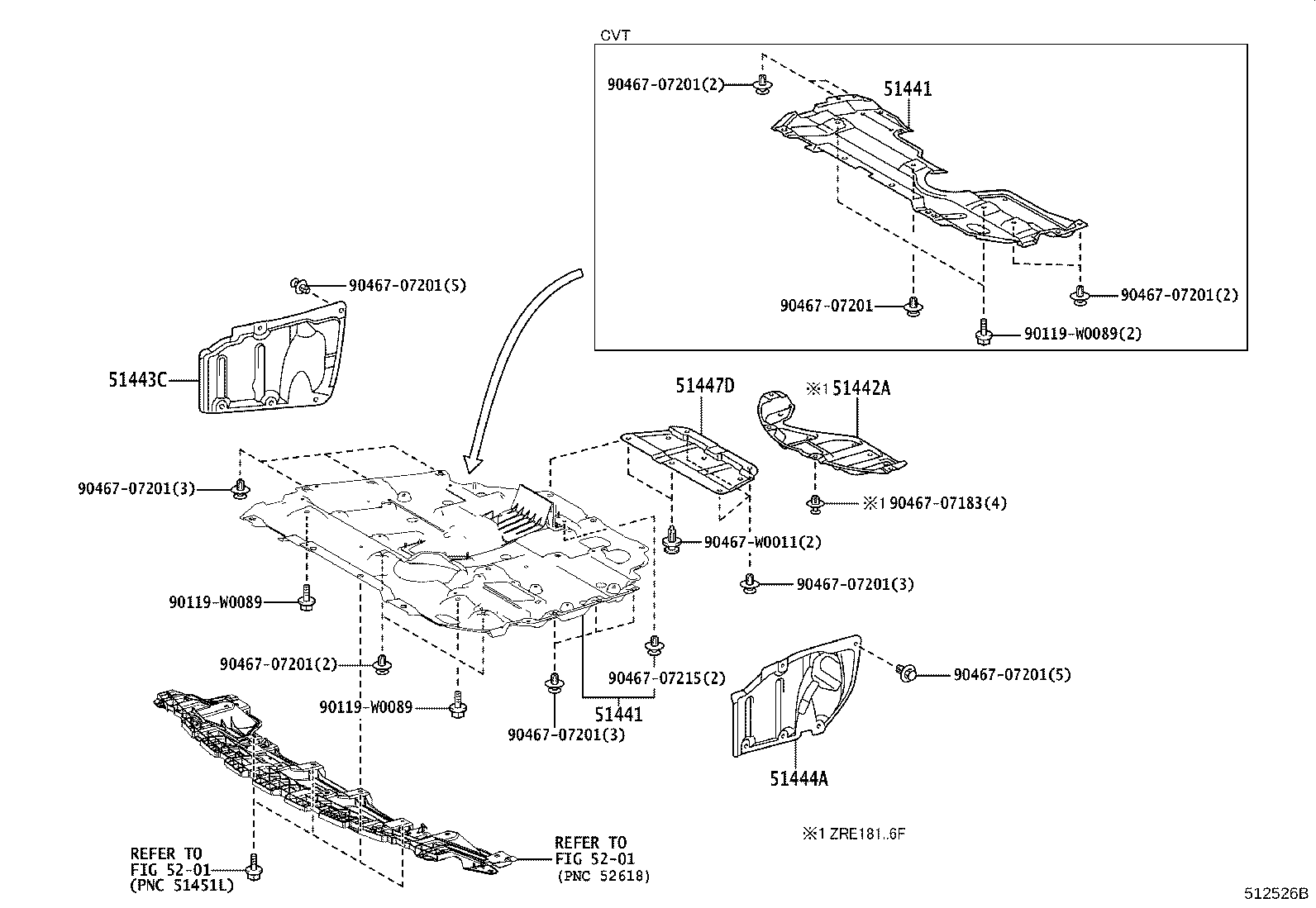

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51441 — Cover, Engine Under, NO.1 | ||||
| 51410-02220 |
Cover, Engine Under, NO.1
2012-10 → 2015-05
ended
|
ZRE181 6F | — | |
| 51441-02220 |
Cover, Engine Under, NO.1
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 51410-02220 |
Cover, Engine Under, NO.1
2015-05 → —
|
ZRE181 6F | — | |
| 51441-02220 |
Cover, Engine Under, NO.1
2015-05 → —
|
ZRE181 CVT | — | |
| 51442A — Cover, Engine Under, Front NO.3 | ||||
| 51442-02230 |
Cover, Engine Under, Front NO.3
2012-10 → 2015-05
ended
|
ZRE181 6F | — | |
| 51442-02230 |
Cover, Engine Under, Front NO.3
2015-05 → —
|
ZRE181 6F | — | |
| 51443C — Cover, Engine Under, Rear RH | ||||
| 51443-02050 |
Cover, Engine Under, Rear RH
2012-10 → 2014-10
ended
|
ZRE181 | — | |
| 51443-05030 |
Cover, Engine Under, Rear RH
2014-11 → 2015-05
ended
|
ZRE181 | — | |
| 51443-05030 |
Cover, Engine Under, Rear RH
2015-05 → —
|
ZRE181 | — | |
| 51444A — Cover, Engine Under, Rear LH | ||||
| 51444-02041 |
Cover, Engine Under, Rear LH
2012-10 → 2014-10
ended
|
ZRE181 | — | |
| 51444-05020 |
Cover, Engine Under, Rear LH
2014-11 → 2015-05
ended
|
ZRE181 | — | |
| 51444-05020 |
Cover, Engine Under, Rear LH
2015-05 → —
|
ZRE181 | — | |
| 51447D — Cover, Engine Under, NO.4 Center | ||||
| 51447-02010 |
Cover, Engine Under, NO.4 Center
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 51447-02010 |
Cover, Engine Under, NO.4 Center
2015-05 → —
|
ZRE181 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
