Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

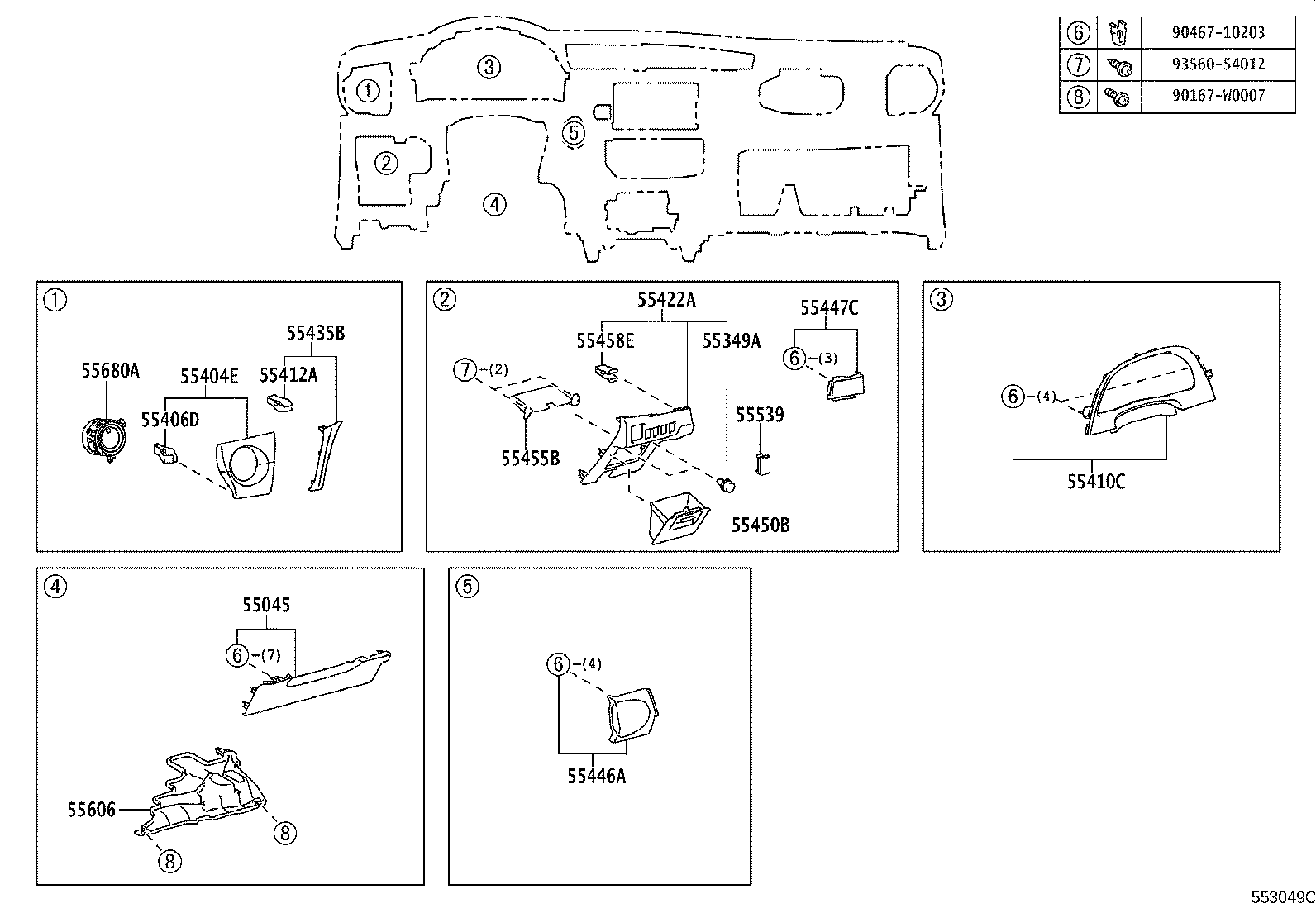

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55045 — Panel Sub-assy, Instrument Panel Finish, Lower | ||||
| 55045-02320-C0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55045-02320-C1 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2015-05 → —
|
ZRE181 | — | |
| 55349A — Cushion, Instrument Panel | ||||
| 58959-60060 |
Cushion, Instrument Panel
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 58959-60060 |
Cushion, Instrument Panel
2015-05 → —
|
ZRE181 | — | |
| 55404E — Panel Sub-assy, Instrument Cluster Finish, Upr | ||||
| 55404-02160-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Upr
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55404-02200-C5 note |
Panel Sub-assy, Instrument Cluster Finish, Upr
2015-05 → —
|
ZRE181 | — | |
| 55406D — Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082-A0 note |
Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 90467-13082-A0 note |
Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2015-05 → —
|
ZRE181 | — | |
| 55410C — Panel Assy, Instrument Cluster Finish | ||||
| 55410-02240-C0 note |
Panel Assy, Instrument Cluster Finish
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55410-02240-C1 note |
Panel Assy, Instrument Cluster Finish
2015-05 → —
|
ZRE181 | — | |
| 55412A — Clip, Panel, Instrument Cluster Finish, End | ||||
| 90467-13082-A0 note |
Clip, Panel, Instrument Cluster Finish, End
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 90467-13082-A0 note |
Clip, Panel, Instrument Cluster Finish, End
2015-05 → —
|
ZRE181 | — | |
| 55422A — Panel, Instrument Cluster Finish, Lower | ||||
| 55422-02270-C0 note |
Panel, Instrument Cluster Finish, Lower
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55422-02270-C1 note |
Panel, Instrument Cluster Finish, Lower
2015-05 → —
|
ZRE181 | — | |
| 55435B — Cluster, Meter Hood, NO.1 | ||||
| 55435-02390-C0 note |
Cluster, Meter Hood, NO.1
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55435-02530-C1 note |
Cluster, Meter Hood, NO.1
2015-05 → —
|
ZRE181 | — | |
| 55446A — Base, Switch Hole, NO.1 | ||||
| 55446-02320-C0 note |
Base, Switch Hole, NO.1
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55446-02320-C1 note |
Base, Switch Hole, NO.1
2015-05 → —
|
ZRE181 | — | |
| 55447C — Base, Switch Hole, NO.2 | ||||
| 55447-02060-C0 note |
Base, Switch Hole, NO.2
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55447-02060-C1 note |
Base, Switch Hole, NO.2
2015-05 → —
|
ZRE181 | — | |
| 55450B — Box Assy, Coin | ||||
| 55450-02110-C0 note |
Box Assy, Coin
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55450-02110-C1 note |
Box Assy, Coin
2015-05 → —
|
ZRE181 | — | |
| 55455B — Coin Box | ||||
| 55455-02140 |
Coin Box
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55455-02140 |
Coin Box
2015-05 → —
|
ZRE181 | — | |
| 55458E — Clip(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
Clip(FOR INSTRUMENT LOWER COVER)
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 90467-10203 |
Clip(FOR INSTRUMENT LOWER COVER)
2015-05 → —
|
ZRE181 | — | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2015-05 → 2018-03
ended
|
ZRE181 | — | |
| 55539-05100 |
Cover, Spare Switch Hole
2018-03 → 2018-11
ended
|
ZRE181 | — | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55606-02140 |
Cover Sub-assy, Instrument Panel Under, NO.1
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 55606-02140 |
Cover Sub-assy, Instrument Panel Under, NO.1
2015-05 → —
|
ZRE181 | — | |
| 55680A — Register Assy, Instrument Panel, NO.4 | ||||
| 55680-02020-C0 note |
Register Assy, Instrument Panel, NO.4
2012-10 → 2014-04
ended
|
ZRE181 | — | |
| 55680-02020-C0 note |
Register Assy, Instrument Panel, NO.4
2014-09 → 2015-05
ended
|
ZRE181 | — | |
| 55680-02070-C0 note |
Register Assy, Instrument Panel, NO.4
2014-05 → 2014-09
ended
|
ZRE181 | — | |
| 55680-12280-C0 note |
Register Assy, Instrument Panel, NO.4
2015-05 → 2017-10
ended
|
ZRE181 | — | |
| 55680-12280-C2 note |
Register Assy, Instrument Panel, NO.4
2017-10 → —
|
ZRE181 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
