Toyota Auris (UKP)

2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General

Supported model Data version 2019-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

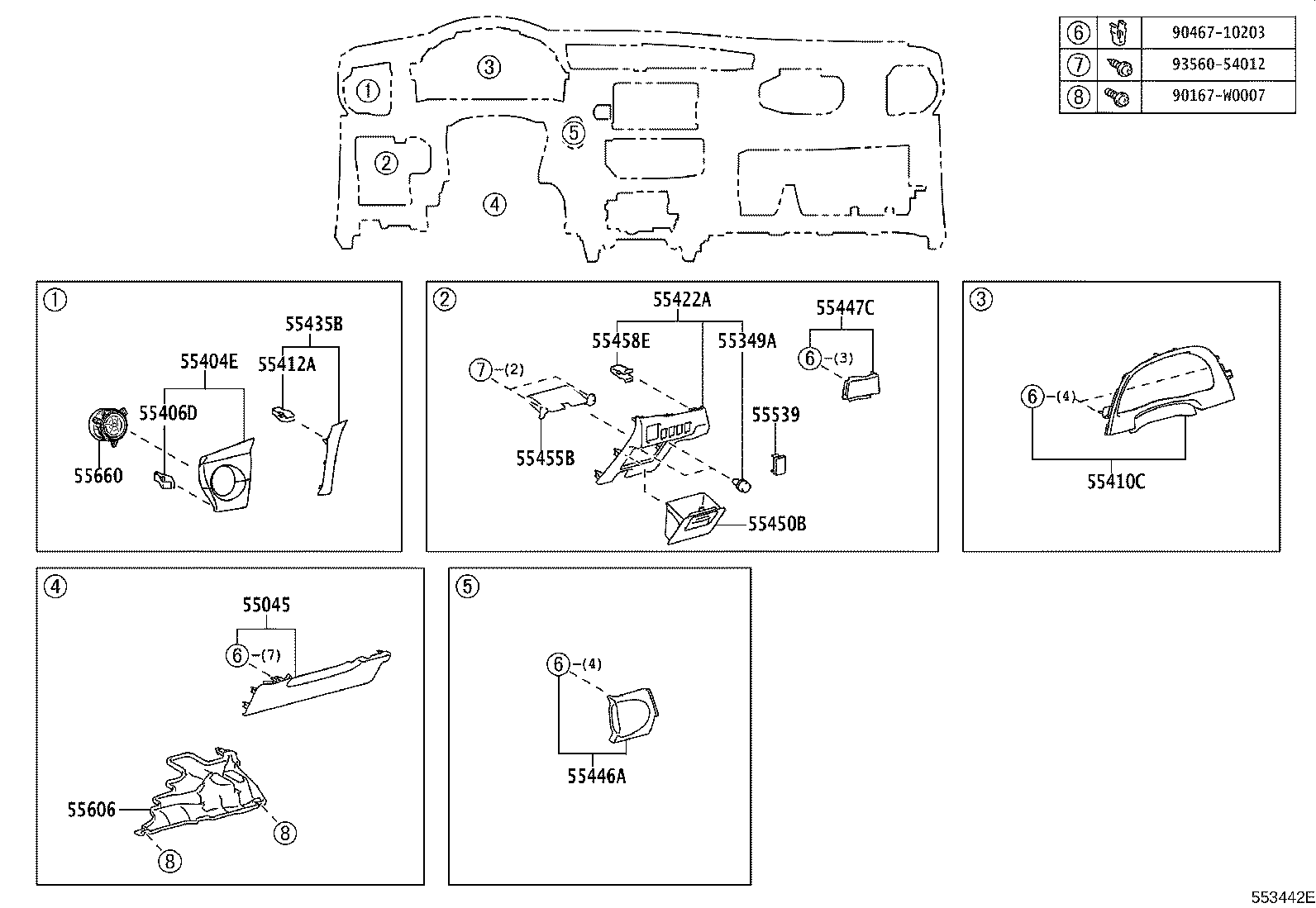

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

34 parts on this figure

Part number	Description	Fitment	Price
55045 — Panel Sub-assy, Instrument Panel Finish, Lower
55045-02320-C0 note	Panel Sub-assy, Instrument Panel Finish, Lower 2012-10 → 2015-05 ended	ZRE181	—
55045-02320-C1 note	Panel Sub-assy, Instrument Panel Finish, Lower 2015-05 → —	ZRE181	—
55349A — Cushion, Instrument Panel
58959-60060	Cushion, Instrument Panel 2012-10 → 2015-05 ended	ZRE181	—
58959-60060	Cushion, Instrument Panel 2015-05 → —	ZRE181	—
55404E — Panel Sub-assy, Instrument Cluster Finish, Upr
55404-02160-C2 note	Panel Sub-assy, Instrument Cluster Finish, Upr 2012-10 → 2015-05 ended	ZRE181	—
55404-02200-C5 note	Panel Sub-assy, Instrument Cluster Finish, Upr 2015-05 → —	ZRE181	—
55406D — Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
90467-13082-A0 note	Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) 2012-10 → 2015-05 ended	ZRE181	—
90467-13082-A0 note	Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) 2015-05 → —	ZRE181	—
55410C — Panel Assy, Instrument Cluster Finish
55410-02240-C0 note	Panel Assy, Instrument Cluster Finish 2012-10 → 2015-05 ended	ZRE181	—
55410-02240-C1 note	Panel Assy, Instrument Cluster Finish 2015-05 → —	ZRE181	—
55412A — Clip, Panel, Instrument Cluster Finish, End
90467-13082-A0 note	Clip, Panel, Instrument Cluster Finish, End 2012-10 → 2015-05 ended	ZRE181	—
90467-13082-A0 note	Clip, Panel, Instrument Cluster Finish, End 2015-05 → —	ZRE181	—
55422A — Panel, Instrument Cluster Finish, Lower
55422-02270-C0 note	Panel, Instrument Cluster Finish, Lower 2012-10 → 2015-05 ended	ZRE181	—
55422-02270-C1 note	Panel, Instrument Cluster Finish, Lower 2015-05 → —	ZRE181	—
55435B — Cluster, Meter Hood, NO.1
55435-02390-C0 note	Cluster, Meter Hood, NO.1 2012-10 → 2015-05 ended	ZRE181	—
55435-02530-C1 note	Cluster, Meter Hood, NO.1 2015-05 → —	ZRE181	—
55446A — Base, Switch Hole, NO.1
55446-02320-C0 note	Base, Switch Hole, NO.1 2012-10 → 2015-05 ended	ZRE181	—
55446-02320-C1 note	Base, Switch Hole, NO.1 2015-05 → —	ZRE181	—
55447C — Base, Switch Hole, NO.2
55447-02060-C0 note	Base, Switch Hole, NO.2 2012-10 → 2015-05 ended	ZRE181	—
55447-02060-C1 note	Base, Switch Hole, NO.2 2015-05 → —	ZRE181	—
55450B — Box Assy, Coin
55450-02110-C0 note	Box Assy, Coin 2012-10 → 2015-05 ended	ZRE181	—
55450-02110-C1 note	Box Assy, Coin 2015-05 → —	ZRE181	—
55455B — Coin Box
55455-02140	Coin Box 2012-10 → 2015-05 ended	ZRE181	—
55455-02140	Coin Box 2015-05 → —	ZRE181	—
55458E — Clip(FOR INSTRUMENT LOWER COVER)
90467-10203	Clip(FOR INSTRUMENT LOWER COVER) 2012-10 → 2015-05 ended	ZRE181	—
90467-10203	Clip(FOR INSTRUMENT LOWER COVER) 2015-05 → —	ZRE181	—
55539 — Cover, Spare Switch Hole
55539-02100-C0 note	Cover, Spare Switch Hole 2012-10 → 2015-05 ended	ZRE181	—
55539-02100-C0 note	Cover, Spare Switch Hole 2012-10 → 2015-05 ended	ZRE181	—
55539-02100-C1 note	Cover, Spare Switch Hole 2015-05 → 2018-03 ended	ZRE181	—
55539-05100	Cover, Spare Switch Hole 2018-03 → 2018-11 ended	ZRE181	—
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-02140	Cover Sub-assy, Instrument Panel Under, NO.1 2012-10 → 2015-05 ended	ZRE181	—
55606-02140	Cover Sub-assy, Instrument Panel Under, NO.1 2015-05 → —	ZRE181	—
55660 — Register Assy, Instrument Panel, NO.2
55680-12290-C0 note	Register Assy, Instrument Panel, NO.2 2015-05 → 2017-10 ended	ZRE181	—
55680-12290-C2 note	Register Assy, Instrument Panel, NO.2 2017-10 → —	ZRE181	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
