Toyota Auris (UKP)

2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

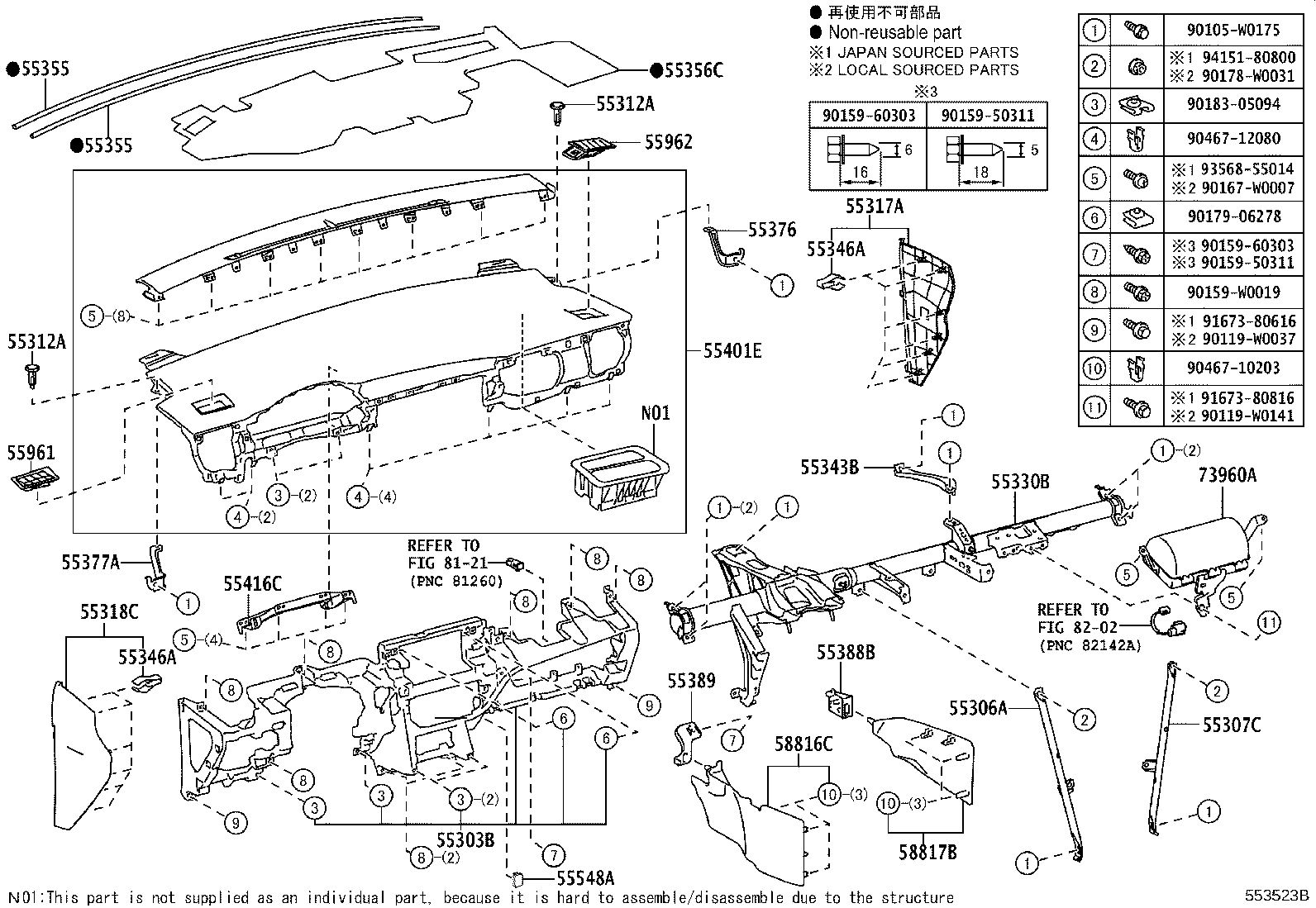

Exploded illustration 553523B 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (2 parts) 55343B — BRACE, INSTRUMENT PANEL TO COWL, CENTER (2 parts) 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 55317A — PANEL, INSTRUMENT SIDE, RH (2 parts) 55318C — PANEL, INSTRUMENT SIDE, LH (2 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (3 parts) 55346A — CLIP, INSTRUMENT PANEL, NO.2 (2 parts) 55346A — CLIP, INSTRUMENT PANEL, NO.2 (2 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 55376 — BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 (2 parts) 55416C — RETAINER, INSTRUMENT CLUSTER FINISH PANEL (2 parts) 55401E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY (2 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (2 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (2 parts) 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55388B — BRACKET, CONSOLE MOUNTING, RH (2 parts) 55389 — BRACKET, CONSOLE MOUNTING, LH (2 parts) 55303B — PANEL SUB-ASSY, INSTRUMENT, LOWER (3 parts) 58817B — INSERT, CONSOLE BOX, FRONT NO.2 (2 parts) 58816C — INSERT, CONSOLE BOX, FRONT NO.1 (2 parts) 55312A — CLIP, INSTRUMENT PANEL (2 parts) 8121 — not listed in this catalogue 8202 — not listed in this catalogue 55356C — CUSHION, INSTRUMENT PANEL, NO.2 (3 parts) 9415180800 — not listed in this catalogue 90105W0175 — not listed in this catalogue 9046712080 — not listed in this catalogue 9356855014 — not listed in this catalogue 9017906278 — not listed in this catalogue 90159W0019 — not listed in this catalogue 9167380616 — not listed in this catalogue 9046710203 — not listed in this catalogue 9015960303 — not listed in this catalogue 9018305094 — not listed in this catalogue 9167380816 — not listed in this catalogue 90178W0031 — not listed in this catalogue 90167W0007 — not listed in this catalogue 90119W0037 — not listed in this catalogue 90119W0141 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015960303 — not listed in this catalogue 9015950311 — not listed in this catalogue 55377A — BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 (2 parts) 55355 — CUSHION, INSTRUMENT PANEL, NO.1 (5 parts) 55355 — CUSHION, INSTRUMENT PANEL, NO.1 (5 parts) 55548A — COVER, INSTRUMENT PANEL HOLE (3 parts)
553523B · 26 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
55303B — Panel Sub-assy, Instrument, Lower
55303-02350-C0 note Panel Sub-assy, Instrument, Lower
2012-10 → 2014-05 ended
ZRE181 —
55303-02351-C0 note Panel Sub-assy, Instrument, Lower
2014-05 → 2015-05 ended
ZRE181 —
55303-02351-C1 note Panel Sub-assy, Instrument, Lower
2015-05 → —
ZRE181 —
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-02440 Brace Sub-assy, Instrument Panel, NO.1
2012-10 → 2015-05 ended
ZRE181 —
55306-02440 Brace Sub-assy, Instrument Panel, NO.1
2015-05 → —
ZRE181 —
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-02300 Brace Sub-assy, Instrument Panel, NO.2
2012-10 → 2015-05 ended
ZRE181 —
55307-02300 Brace Sub-assy, Instrument Panel, NO.2
2015-05 → —
ZRE181 —
55312A — Clip, Instrument Panel
52161-02030 Clip, Instrument Panel
2012-10 → 2015-05 ended
ZRE181 —
52161-02030 Clip, Instrument Panel
2015-05 → —
ZRE181 —
55317A — Panel, Instrument Side, RH
55317-02290-C0 note Panel, Instrument Side, RH
2012-10 → 2015-05 ended
ZRE181 —
55317-02290-C1 note Panel, Instrument Side, RH
2015-05 → —
ZRE181 —
55318C — Panel, Instrument Side, LH
55318-02120-C0 note Panel, Instrument Side, LH
2012-10 → 2015-05 ended
ZRE181 —
55318-02120-C1 note Panel, Instrument Side, LH
2015-05 → —
ZRE181 —
55330B — Reinforcement Assy, Instrument Panel
55330-02290 Reinforcement Assy, Instrument Panel
2012-10 → 2015-05 ended
ZRE181 —
55330-02290 Reinforcement Assy, Instrument Panel
2015-05 → —
ZRE181 —
55343B — Brace, Instrument Panel TO Cowl, Center
55343-02060 Brace, Instrument Panel TO Cowl, Center
2012-10 → 2015-05 ended
ZRE181 —
55343-02060 Brace, Instrument Panel TO Cowl, Center
2015-05 → —
ZRE181 —
55346A — Clip, Instrument Panel, NO.2
90467-13082-A0 note Clip, Instrument Panel, NO.2
2012-10 → 2015-05 ended
ZRE181 —
90467-13082-A0 note Clip, Instrument Panel, NO.2
2015-05 → —
ZRE181 —
55355 — Cushion, Instrument Panel, NO.1
55355-02220 note Cushion, Instrument Panel, NO.1
2012-10 → 2013-04 ended
ZRE181 —
55355-02420 note Cushion, Instrument Panel, NO.1
2013-05 → 2015-05 ended
ZRE181 —
55355-02430 note Cushion, Instrument Panel, NO.1
2013-05 → 2015-05 ended
ZRE181 —
55355-02420 note Cushion, Instrument Panel, NO.1
2015-05 → —
ZRE181 —
55355-02430 note Cushion, Instrument Panel, NO.1
2015-05 → —
ZRE181 —
55356C — Cushion, Instrument Panel, NO.2
55356-02090 Cushion, Instrument Panel, NO.2
2012-10 → 2015-05 ended
ZRE181 —
55356-02440 Cushion, Instrument Panel, NO.2
2015-05 → 2016-01 ended
ZRE181 —
55356-02470 Cushion, Instrument Panel, NO.2
2016-01 → —
ZRE181 —
55376 — Bracket, Instrument Panel Mounting, NO.1
55376-02040 Bracket, Instrument Panel Mounting, NO.1
2012-10 → 2015-05 ended
ZRE181 —
55376-02040 Bracket, Instrument Panel Mounting, NO.1
2015-05 → —
ZRE181 —
55377A — Bracket, Instrument Panel Mounting, NO.2
55377-02040 Bracket, Instrument Panel Mounting, NO.2
2012-10 → 2015-05 ended
ZRE181 —
55377-02040 Bracket, Instrument Panel Mounting, NO.2
2015-05 → —
ZRE181 —
55388B — Bracket, Console Mounting, RH
55388-02050 Bracket, Console Mounting, RH
2012-10 → 2015-05 ended
ZRE181 —
55388-02050 Bracket, Console Mounting, RH
2015-05 → —
ZRE181 —
55389 — Bracket, Console Mounting, LH
55389-02080 Bracket, Console Mounting, LH
2012-10 → 2015-05 ended
ZRE181 —
55389-02080 Bracket, Console Mounting, LH
2015-05 → —
ZRE181 —
55401E — Pad Sub-assy, Instrument Panel Safety
55401-02900-C0 note Pad Sub-assy, Instrument Panel Safety
2012-10 → 2015-05 ended
ZRE181 —
55401-02900-C1 note Pad Sub-assy, Instrument Panel Safety
2015-05 → —
ZRE181 —
55416C — Retainer, Instrument Cluster Finish Panel
55416-02060 Retainer, Instrument Cluster Finish Panel
2012-10 → 2015-05 ended
ZRE181 —
55416-02060 Retainer, Instrument Cluster Finish Panel
2015-05 → —
ZRE181 —
55548A — Cover, Instrument Panel Hole
55548-02640-C0 note Cover, Instrument Panel Hole
2014-05 → 2015-05 ended
ZRE181 —
55539-48020 Cover, Instrument Panel Hole
2016-03 → —
ZRE181 —
55548-02640-C1 note Cover, Instrument Panel Hole
2015-05 → 2016-02 ended
ZRE181 —
55961 — Nozzle, Side Defroster, NO.1
55961-02110-C0 note Nozzle, Side Defroster, NO.1
2012-10 → 2015-05 ended
ZRE181 —
55961-02110-C1 note Nozzle, Side Defroster, NO.1
2015-05 → —
ZRE181 —
55962 — Nozzle, Side Defroster, NO.2
55962-02070-C0 note Nozzle, Side Defroster, NO.2
2012-10 → 2015-05 ended
ZRE181 —
55962-02070-C1 note Nozzle, Side Defroster, NO.2
2015-05 → —
ZRE181 —
58816C — Insert, Console Box, Front NO.1
58816-02170-C0 note Insert, Console Box, Front NO.1
2012-10 → 2015-05 ended
ZRE181 —
58816-02170-C1 note Insert, Console Box, Front NO.1
2015-05 → —
ZRE181 —
58817B — Insert, Console Box, Front NO.2
58817-02170-C0 note Insert, Console Box, Front NO.2
2012-10 → 2015-05 ended
ZRE181 —
58817-02170-C1 note Insert, Console Box, Front NO.2
2015-05 → —
ZRE181 —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-02130 Airbag Assy, Instrument Panel Passenger W/O Door
2012-10 → 2015-05 ended
ZRE181 —
73960-02130 Airbag Assy, Instrument Panel Passenger W/O Door
2015-05 → 2018-01 ended
ZRE181 —
73960-02131 Airbag Assy, Instrument Panel Passenger W/O Door
2018-02 → —
ZRE181 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
