Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

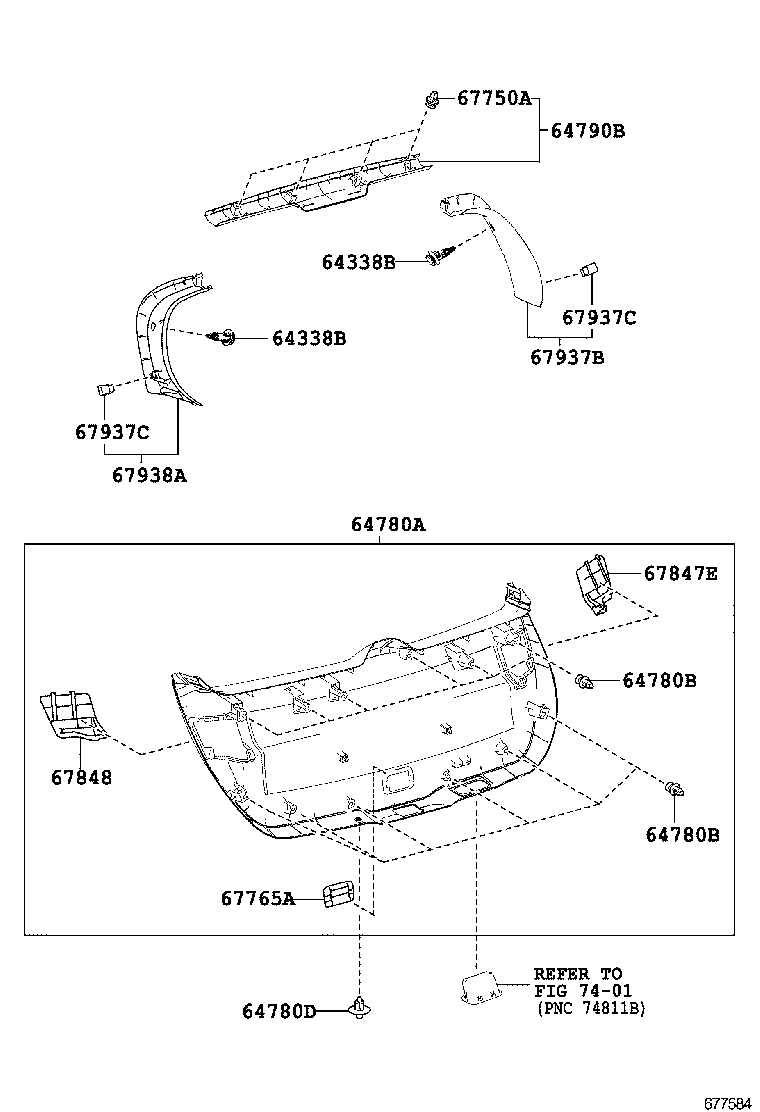

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64338B — Hook, Package Tray Trim Garnish | ||||
| 64338-12050-C0 note |
Hook, Package Tray Trim Garnish
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 64338-12050-C1 note |
Hook, Package Tray Trim Garnish
2015-05 → —
|
ZRE181 | — | |
| 64780A — Panel Assy, Back Door Trim | ||||
| 64780-02030-C0 note |
Panel Assy, Back Door Trim
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 64780-02030-C1 note |
Panel Assy, Back Door Trim
2015-05 → —
|
ZRE181 | — | |
| 64780B — Clip(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-W0005 |
Clip(FOR BACK DOOR TRIM PANEL)
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 90467-W0005 |
Clip(FOR BACK DOOR TRIM PANEL)
2015-05 → —
|
ZRE181 | — | |
| 64780D — Retainer(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-07076-C0 note |
Retainer(FOR BACK DOOR TRIM BOARD)
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 90467-07076-C6 note |
Retainer(FOR BACK DOOR TRIM BOARD)
2015-05 → 2017-03
ended
|
ZRE181 | — | |
| 90467-07076-C7 note |
Retainer(FOR BACK DOOR TRIM BOARD)
2017-03 → —
|
ZRE181 | — | |
| 64790B — Panel Assy, Back Door Trim, Upper | ||||
| 64790-02080-C0 note |
Panel Assy, Back Door Trim, Upper
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 64790-02080-C1 note |
Panel Assy, Back Door Trim, Upper
2015-05 → —
|
ZRE181 | — | |
| 67750A — Clip(FOR BACK DOOR TRIM) | ||||
| 90467-W0005 |
Clip(FOR BACK DOOR TRIM)
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 90467-W0005 |
Clip(FOR BACK DOOR TRIM)
2015-05 → —
|
ZRE181 | — | |
| 67765A — Cover, Back Door Service Hole, NO.1 | ||||
| 67765-02030-C0 note |
Cover, Back Door Service Hole, NO.1
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 67765-02030-C1 note |
Cover, Back Door Service Hole, NO.1
2015-05 → —
|
ZRE181 | — | |
| 67847E — Cover, Back Door Service Hole, RH | ||||
| 67847-02020-C0 note |
Cover, Back Door Service Hole, RH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 67847-02020-C1 note |
Cover, Back Door Service Hole, RH
2015-05 → —
|
ZRE181 | — | |
| 67848 — Cover, Back Door Service Hole, LH | ||||
| 67848-02020-C0 note |
Cover, Back Door Service Hole, LH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 67848-02020-C1 note |
Cover, Back Door Service Hole, LH
2015-05 → —
|
ZRE181 | — | |
| 67937B — Garnish, Back Door Side, RH | ||||
| 67937-02060-C0 note |
Garnish, Back Door Side, RH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 67937-02060-C1 note |
Garnish, Back Door Side, RH
2015-05 → —
|
ZRE181 | — | |
| 67937C — Clip(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
Clip(FOR BACK DOOR SIDE GARNISH)
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 67771-58010 |
Clip(FOR BACK DOOR SIDE GARNISH)
2015-05 → —
|
ZRE181 | — | |
| 67938A — Garnish, Back Door Side, LH | ||||
| 67938-02060-C0 note |
Garnish, Back Door Side, LH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 67938-02060-C1 note |
Garnish, Back Door Side, LH
2015-05 → —
|
ZRE181 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
