Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

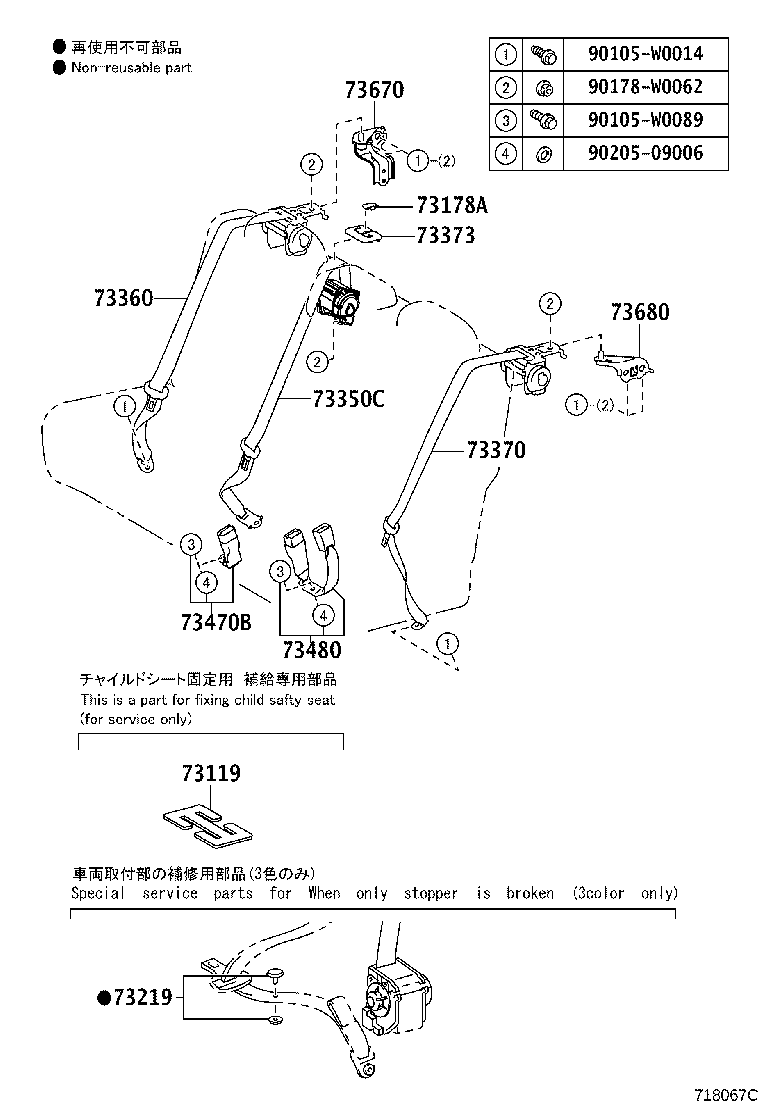

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73119 — Plate, Seat Belt Webbing Clip | ||||
| 73119-22010 |
Plate, Seat Belt Webbing Clip
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73119-22010 |
Plate, Seat Belt Webbing Clip
2015-05 → —
|
ZRE181 | — | |
| 73178A — Cap, Seat Belt Anchor Cover | ||||
| 73178-02040-C0 note |
Cap, Seat Belt Anchor Cover
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73178-02040-C0 note |
Cap, Seat Belt Anchor Cover
2015-05 → —
|
ZRE181 | — | |
| 73219 — Stopper, Tongue Plate | ||||
| 73219-33010 note |
Stopper, Tongue Plate
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2015-05 → —
|
ZRE181 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2015-05 → —
|
ZRE181 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2015-05 → —
|
ZRE181 | — | |
| 73350C — Belt Assy, Rear Seat, Outer Center | ||||
| 73350-02140-C1 note |
Belt Assy, Rear Seat, Outer Center
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73350-02100-C0 note |
Belt Assy, Rear Seat, Outer Center
2015-05 → —
|
ZRE181 | — | |
| 73360 — Belt Assy, Rear Seat 3 Point Type, Outer RH | ||||
| 73360-02550-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73360-02740-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2015-05 → —
|
ZRE181 | — | |
| 73370 — Belt Assy, Rear Seat 3 Point Type, Outer LH | ||||
| 73360-02550-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73360-02740-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-05 → —
|
ZRE181 | — | |
| 73373 — Cover, Rear Seat Shoulder Belt | ||||
| 73373-02070-C0 note |
Cover, Rear Seat Shoulder Belt
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73373-02070-C0 note |
Cover, Rear Seat Shoulder Belt
2015-05 → —
|
ZRE181 | — | |
| 73470B — Belt Assy, Rear Seat Inner W/Center, RH | ||||
| 73380-02080-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73380-02081-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2015-05 → —
|
ZRE181 | — | |
| 73480 — Belt Assy, Rear Seat Inner W/Center, LH | ||||
| 73480-02490-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73480-02491-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2015-05 → 2017-09
ended
|
ZRE181 | — | |
| 73480-02492-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2017-10 → —
|
ZRE181 | — | |
| 73670 — Bracket Assy, Rear Seat Belt Outer Anchor, RH | ||||
| 73670-02010 |
Bracket Assy, Rear Seat Belt Outer Anchor, RH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73670-02010 |
Bracket Assy, Rear Seat Belt Outer Anchor, RH
2015-05 → —
|
ZRE181 | — | |
| 73680 — Bracket Assy, Rear Seat Belt Outer Anchor, LH | ||||
| 73016-02040 |
Bracket Assy, Rear Seat Belt Outer Anchor, LH
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 73016-02040 |
Bracket Assy, Rear Seat Belt Outer Anchor, LH
2015-05 → —
|
ZRE181 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
