Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

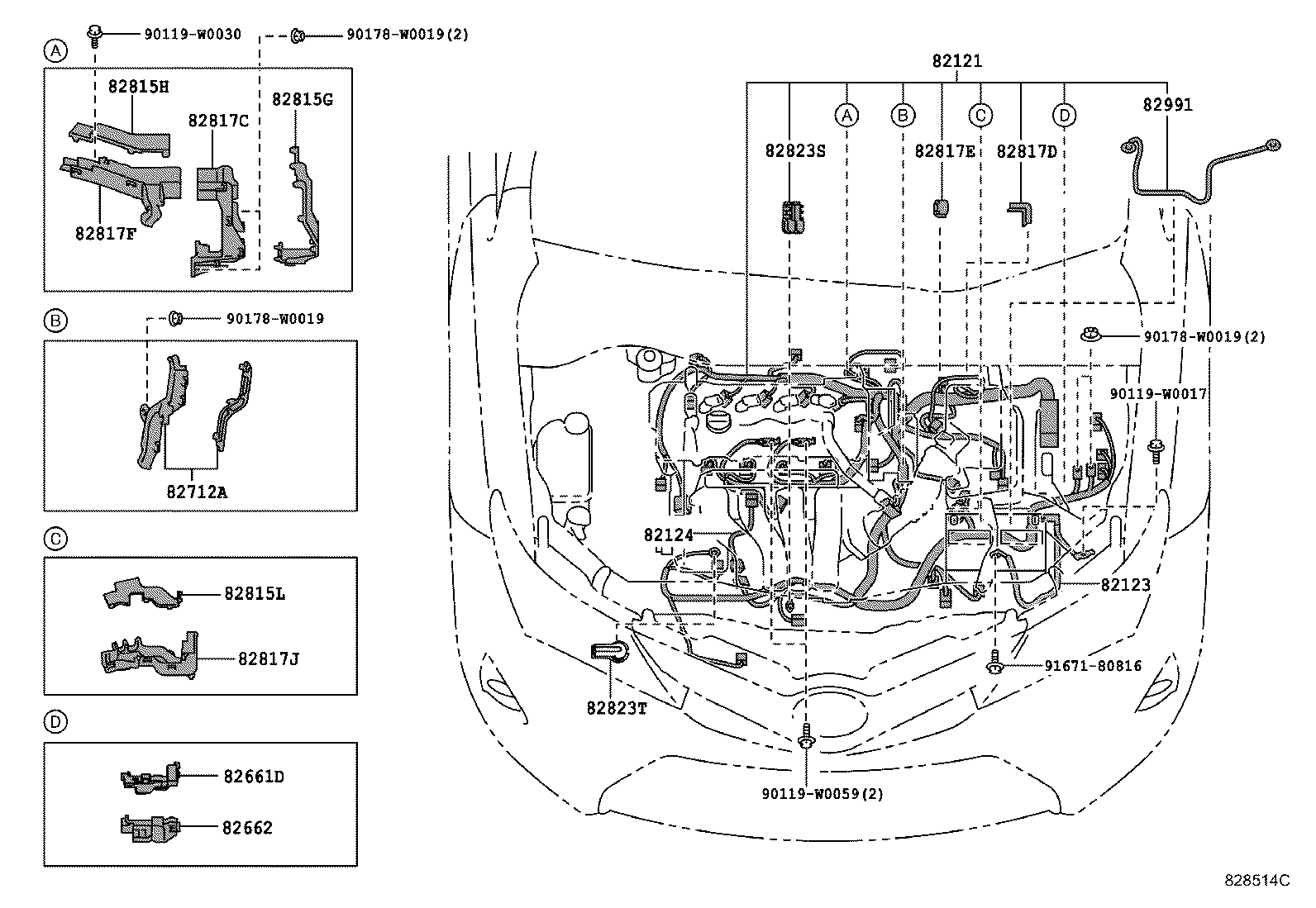

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-0Z300 |
Wire, Engine
2012-10 → 2015-05
ended
|
ZRE181 6F | — | |
| 82121-0Z310 |
Wire, Engine
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 82121-0ZB90 |
Wire, Engine
2015-05 → 2015-06
ended
|
ZRE181 6F | — | |
| 82121-0ZB91 |
Wire, Engine
2015-06 → —
|
ZRE181 6F | — | |
| 82121-0ZC10 |
Wire, Engine
2015-05 → 2015-06
ended
|
ZRE181 CVT | — | |
| 82121-0ZC11 |
Wire, Engine
2015-06 → —
|
ZRE181 CVT | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-02550 |
Wire, Engine, NO.3
2012-10 → 2015-05
ended
|
ZRE181 6F | — | |
| 82123-02560 |
Wire, Engine, NO.3
2012-10 → 2015-05
ended
|
ZRE181 CVT | — | |
| 82123-02550 |
Wire, Engine, NO.3
2015-05 → —
|
ZRE181 6F | — | |
| 82123-02560 |
Wire, Engine, NO.3
2015-05 → —
|
ZRE181 CVT | — | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-02090 |
Wire, Engine, NO.4
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82124-02090 |
Wire, Engine, NO.4
2015-05 → —
|
ZRE181 | — | |
| 82661D — Cover, Relay Block, Side NO.1 | ||||
| 82661-12300 |
Cover, Relay Block, Side NO.1
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82661-12300 |
Cover, Relay Block, Side NO.1
2015-05 → —
|
ZRE181 | — | |
| 82662 — Cover, Relay Block, Upper | ||||
| 82662-12260 |
Cover, Relay Block, Upper
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82662-12260 |
Cover, Relay Block, Upper
2015-05 → —
|
ZRE181 | — | |
| 82712A — Support, Wiring Harness | ||||
| 82712-28440 |
Support, Wiring Harness
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82712-28440 |
Support, Wiring Harness
2015-05 → —
|
ZRE181 | — | |
| 82815G — Cover, Wiring Harness Protector NO.5 | ||||
| 82815-02250 |
Cover, Wiring Harness Protector NO.5
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82815-02250 |
Cover, Wiring Harness Protector NO.5
2015-05 → —
|
ZRE181 | — | |
| 82815H — Cover, Wiring Harness Protector NO.6 | ||||
| 82815-02260 |
Cover, Wiring Harness Protector NO.6
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82815-02260 |
Cover, Wiring Harness Protector NO.6
2015-05 → —
|
ZRE181 | — | |
| 82815L — Cover, Wiring Harness Protector, NO.9 | ||||
| 82815-02390 |
Cover, Wiring Harness Protector, NO.9
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82815-02390 |
Cover, Wiring Harness Protector, NO.9
2015-05 → —
|
ZRE181 | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-02760 |
Protector, Wiring Harness, NO.4
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82817-02760 |
Protector, Wiring Harness, NO.4
2015-05 → —
|
ZRE181 | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-12860 |
Protector, Wiring Harness, NO.5
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.5
2015-05 → —
|
ZRE181 | — | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-12J10 |
Protector, Wiring Harness, NO.6
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.6
2015-05 → —
|
ZRE181 | — | |
| 82817F — Protector, Wiring Harness, NO.7 | ||||
| 82817-02770 |
Protector, Wiring Harness, NO.7
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82817-02770 |
Protector, Wiring Harness, NO.7
2015-05 → —
|
ZRE181 | — | |
| 82817J — Protector, Wiring Harness, NO.9 | ||||
| 82817-02B30 |
Protector, Wiring Harness, NO.9
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82817-02B30 |
Protector, Wiring Harness, NO.9
2015-05 → —
|
ZRE181 | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-12120 |
Cap, Starter Terminal
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82823-12120 |
Cap, Starter Terminal
2015-05 → —
|
ZRE181 | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82823-22050 |
Cap, Alternator Terminal
2015-06 → —
|
ZRE181 | — | |
| 82823-60040 |
Cap, Alternator Terminal
2015-05 → 2015-06
ended
|
ZRE181 | — | |
| 82991 — Wire, Fusible Link Repair | ||||
| 82991-02010 |
Wire, Fusible Link Repair
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82991-02010 |
Wire, Fusible Link Repair
2015-05 → —
|
ZRE181 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
