Toyota Auris (UKP)

2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General

Supported model Data version 2019-04

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

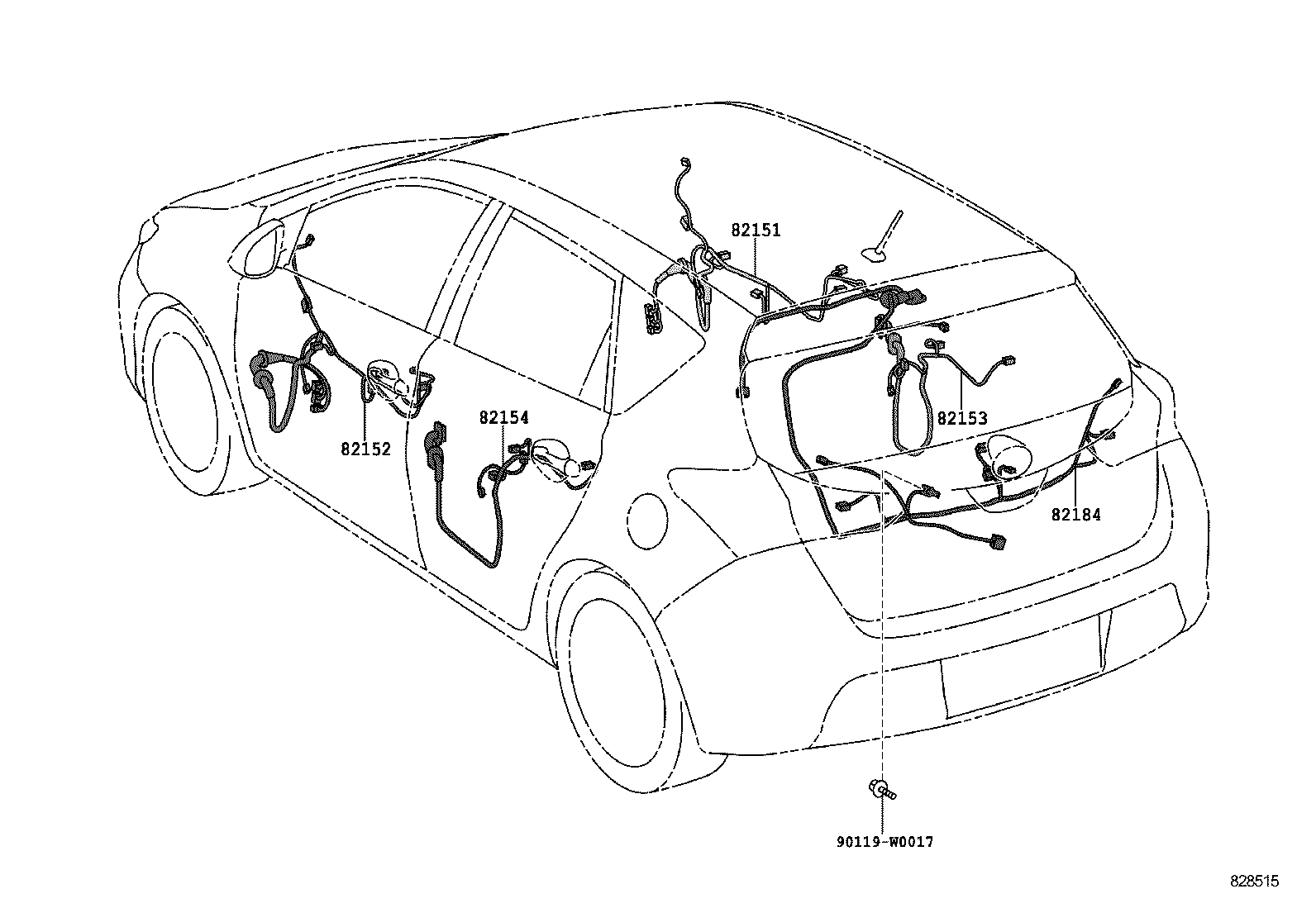

16 parts on this figure

Part number	Description	Fitment	Price
82151 — Wire, Front Door, RH
82151-0Z280	Wire, Front Door, RH 2012-10 → 2015-05 ended	ZRE181	—
82151-0ZG40 note	Wire, Front Door, RH 2015-05 → —	ZRE181	—
82151-0ZG50	Wire, Front Door, RH 2015-05 → —	ZRE181	—
82152 — Wire, Front Door, LH
82152-02Z90	Wire, Front Door, LH 2012-10 → 2015-05 ended	ZRE181	—
82152-0ZF10	Wire, Front Door, LH 2015-05 → —	ZRE181	—
82152-0ZF20 note	Wire, Front Door, LH 2015-05 → —	ZRE181	—
82153 — Wire, Rear Door, NO.1
82153-02A50	Wire, Rear Door, NO.1 2012-10 → 2015-05 ended	ZRE181	—
82153-02A70 note	Wire, Rear Door, NO.1 2012-10 → 2015-05 ended	ZRE181	—
82153-02B30 note	Wire, Rear Door, NO.1 2015-05 → —	ZRE181	—
82153-02D90	Wire, Rear Door, NO.1 2015-05 → —	ZRE181	—
82154 — Wire, Rear Door, NO.2
82154-02790	Wire, Rear Door, NO.2 2012-10 → 2015-05 ended	ZRE181	—
82154-02810 note	Wire, Rear Door, NO.2 2012-10 → 2015-05 ended	ZRE181	—
82154-02870 note	Wire, Rear Door, NO.2 2015-05 → —	ZRE181	—
82154-02C20	Wire, Rear Door, NO.2 2015-05 → —	ZRE181	—
82184 — Wire, Back Door, NO.1
82184-02510	Wire, Back Door, NO.1 2012-10 → 2015-05 ended	ZRE181	—
82184-02640	Wire, Back Door, NO.1 2015-05 → —	ZRE181	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
