Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

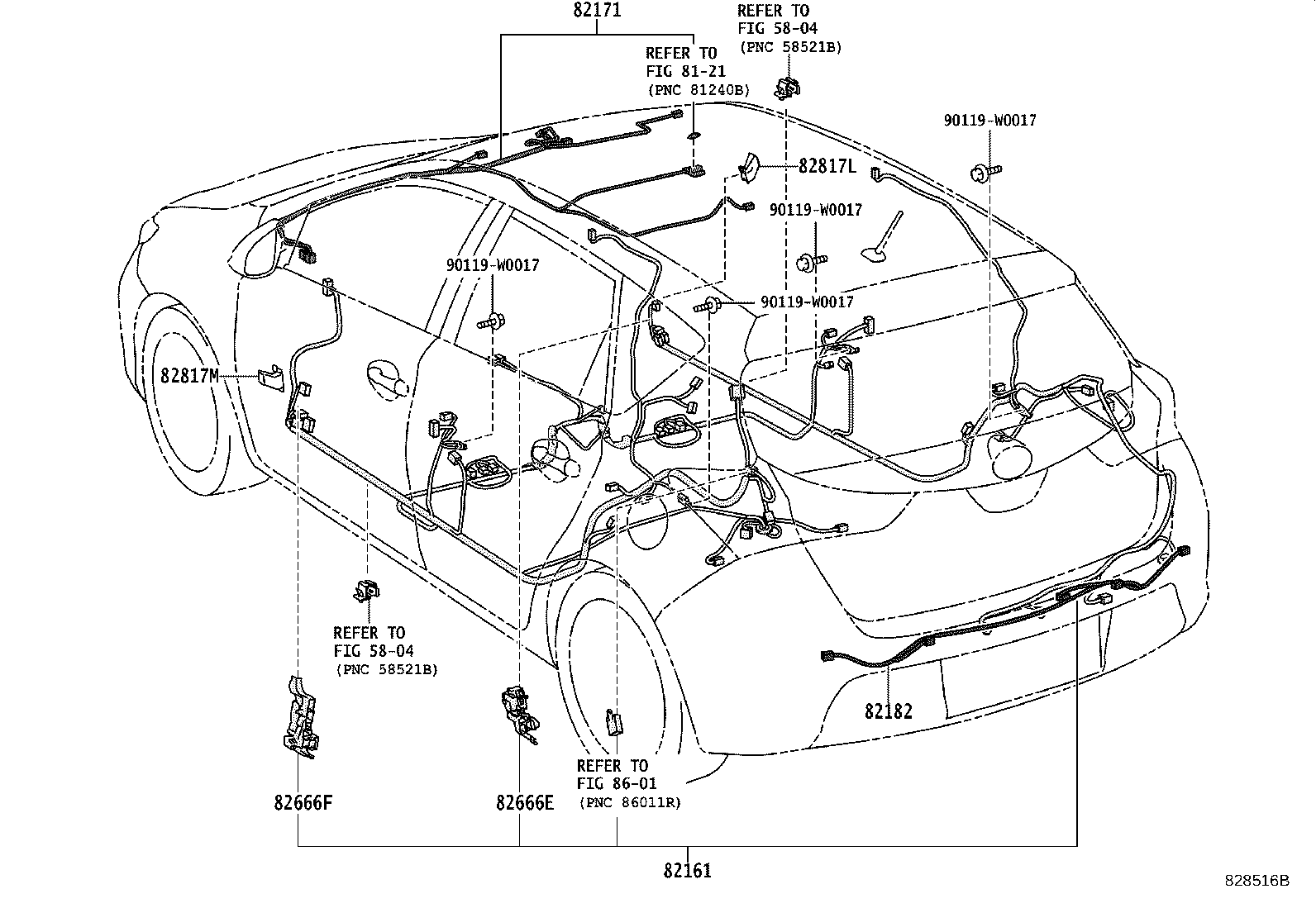

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82161 — Wire, Floor | ||||
| 82161-0ZG20 |
Wire, Floor
2012-10 → 2014-04
ended
|
ZRE181 | — | |
| 82161-0ZG21 |
Wire, Floor
2014-05 → 2015-05
ended
|
ZRE181 | — | |
| 82199-02J10 |
Wire, Floor
2015-05 → —
|
ZRE181 | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-02T90 |
Wire, Roof, NO.1
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82171-0ZA20 |
Wire, Roof, NO.1
2015-05 → —
|
ZRE181 | — | |
| 82171-0ZA30 note |
Wire, Roof, NO.1
2015-05 → —
|
ZRE181 | — | |
| 82182 — Wire, Luggage Room, NO.2 | ||||
| 82182-02110 |
Wire, Luggage Room, NO.2
2015-05 → —
|
ZRE181 | — | |
| 82666E — Holder, Connector NO.6 | ||||
| 82666-02460 |
Holder, Connector NO.6
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82666-02460 |
Holder, Connector NO.6
2015-05 → —
|
ZRE181 | — | |
| 82666F — Holder, Connector NO.7 | ||||
| 82666-02470 |
Holder, Connector NO.7
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82666-02470 |
Holder, Connector NO.7
2015-05 → —
|
ZRE181 | — | |
| 82817L — Protector, Wiring Harness, NO.11 | ||||
| 82817-02C00 |
Protector, Wiring Harness, NO.11
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82817-02C00 |
Protector, Wiring Harness, NO.11
2015-05 → —
|
ZRE181 | — | |
| 82817M — Protector, Wiring Harness, NO.12 | ||||
| 82817-02C10 |
Protector, Wiring Harness, NO.12
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82817-02C10 |
Protector, Wiring Harness, NO.12
2015-05 → —
|
ZRE181 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
