Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

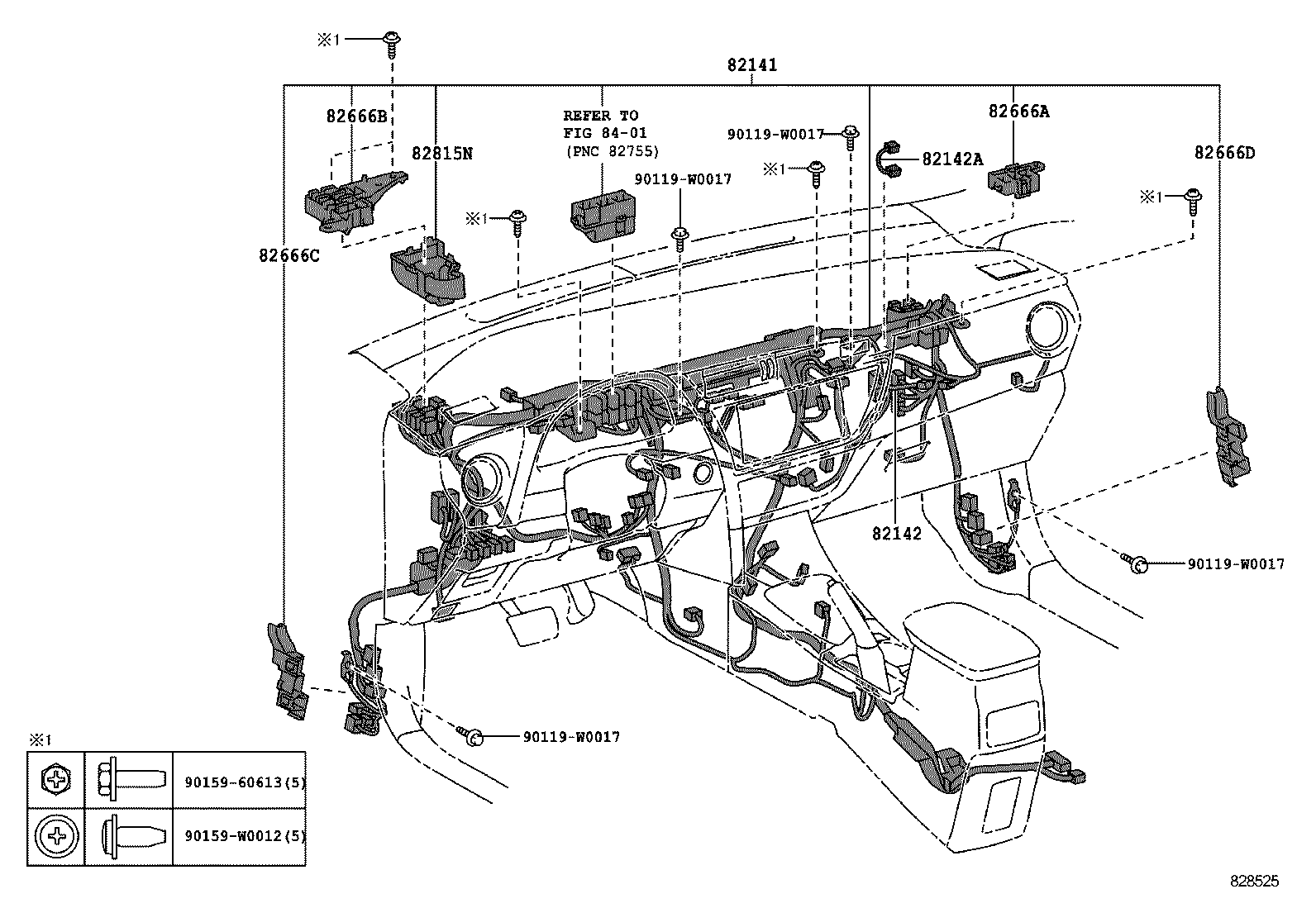

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82118-0ZF50 |
Wire, Instrument Panel
2012-10 → 2014-05
ended
|
ZRE181 CVT | — | |
| 82118-0ZF51 |
Wire, Instrument Panel
2014-05 → 2015-05
ended
|
ZRE181 CVT | — | |
| 82118-0ZG40 |
Wire, Instrument Panel
2012-10 → 2014-05
ended
|
ZRE181 6F | — | |
| 82118-0ZG41 |
Wire, Instrument Panel
2014-05 → 2015-05
ended
|
ZRE181 6F | — | |
| 82117-0ZZ30 |
Wire, Instrument Panel
2015-05 → 2016-10
ended
|
ZRE181 CVT | — | |
| 82117-0ZZ31 |
Wire, Instrument Panel
2016-10 → —
|
ZRE181 CVT | — | |
| 82117-0ZZ40 |
Wire, Instrument Panel
2015-05 → 2016-10
ended
|
ZRE181 6F | — | |
| 82117-0ZZ41 |
Wire, Instrument Panel
2016-10 → —
|
ZRE181 6F | — | |
| 82138-0Z080 note |
Wire, Instrument Panel
2015-05 → 2016-10
ended
|
ZRE181 CVT | — | |
| 82138-0Z081 note |
Wire, Instrument Panel
2016-10 → —
|
ZRE181 CVT | — | |
| 82138-0Z090 note |
Wire, Instrument Panel
2015-05 → 2016-10
ended
|
ZRE181 6F | — | |
| 82138-0Z091 note |
Wire, Instrument Panel
2016-10 → —
|
ZRE181 6F | — | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-02240 |
Wire, Instrument Panel, NO.2
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82142-02820 |
Wire, Instrument Panel, NO.2
2015-05 → —
|
ZRE181 | — | |
| 82142A — Wire, Instrument Panel, NO.2 | ||||
| 82140-02350 |
Wire, Instrument Panel, NO.2
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82140-02350 |
Wire, Instrument Panel, NO.2
2015-05 → —
|
ZRE181 | — | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-02380 |
Holder, Connector NO.2
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82666-02380 |
Holder, Connector NO.2
2015-05 → —
|
ZRE181 | — | |
| 82666B — Holder, Connector NO.3 | ||||
| 82666-02400 |
Holder, Connector NO.3
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82666-02400 |
Holder, Connector NO.3
2015-05 → —
|
ZRE181 | — | |
| 82666C — Holder, Connector NO.4 | ||||
| 82666-02420 |
Holder, Connector NO.4
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82666-02420 |
Holder, Connector NO.4
2015-05 → —
|
ZRE181 | — | |
| 82666D — Holder, Connector NO.5 | ||||
| 82666-02430 |
Holder, Connector NO.5
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82666-02430 |
Holder, Connector NO.5
2015-05 → —
|
ZRE181 | — | |
| 82815N — Cover, Wiring Harness Protector, NO.11 | ||||
| 82815-02330 |
Cover, Wiring Harness Protector, NO.11
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 82815-02330 |
Cover, Wiring Harness Protector, NO.11
2015-05 → —
|
ZRE181 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
