Toyota Auris (UKP)

2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

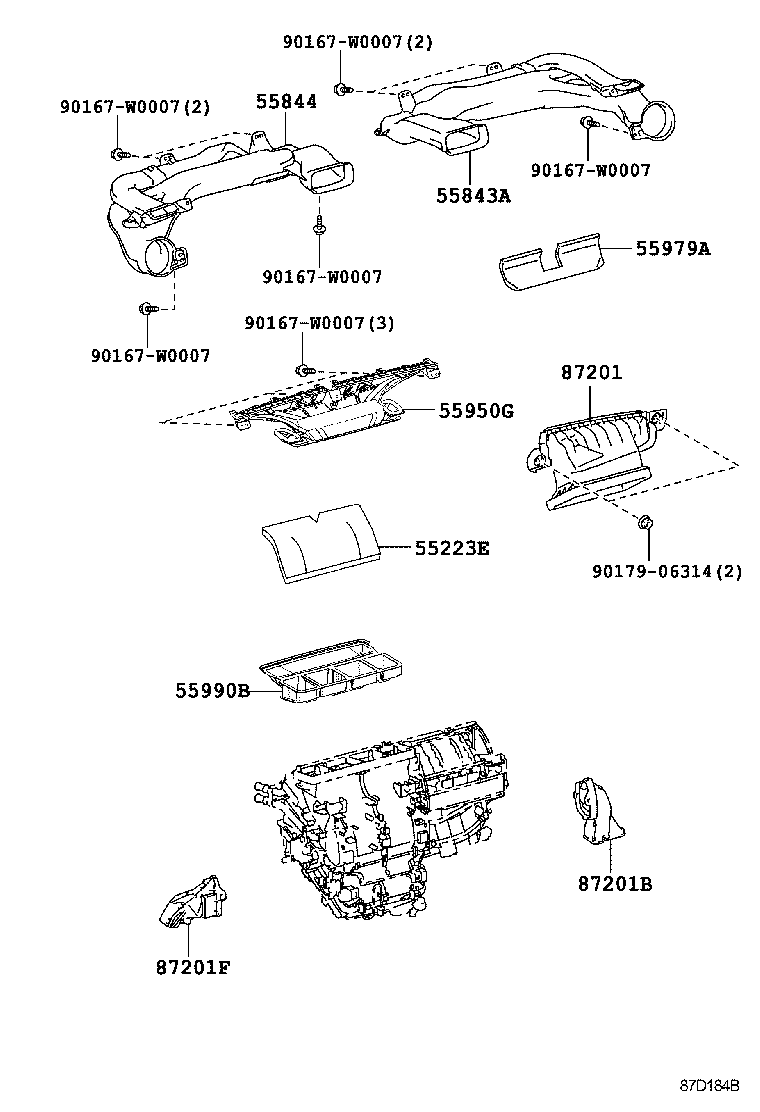

Exploded illustration 87D184B 55950G — NOZZLE ASSY, DEFROSTER (2 parts) 55843A — DUCT, HEATER TO REGISTER, NO.1 (2 parts) 55844 — DUCT, HEATER TO REGISTER, NO.2 (2 parts) 55990B — NOZZLE ASSY, DEFROSTER, LOWER (2 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (2 parts) 87201F — DUCT SUB-ASSY, AIR, NO.3 (2 parts) 87201B — DUCT SUB-ASSY, AIR, NO.2 (2 parts) 90167W0007 — not listed in this catalogue 9017906314 — not listed in this catalogue 90167W0007 — not listed in this catalogue 90167W0007 — not listed in this catalogue 90167W0007 — not listed in this catalogue 90167W0007 — not listed in this catalogue 90167W0007 — not listed in this catalogue 55223E — INSULATOR, DASH PANEL HEAT, NO.1 (2 parts) 55979A — CUSHION, DEFROSTER NOZZLE (2 parts)
87D184B · 9 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
55223E — Insulator, Dash Panel Heat, NO.1
55223-05120 Insulator, Dash Panel Heat, NO.1
2012-10 → 2015-05 ended
ZRE181 —
55223-05120 Insulator, Dash Panel Heat, NO.1
2015-05 → —
ZRE181 —
55843A — Duct, Heater TO Register, NO.1
55086-02090 Duct, Heater TO Register, NO.1
2012-10 → 2015-05 ended
ZRE181 —
55086-02350 Duct, Heater TO Register, NO.1
2015-05 → —
ZRE181 —
55844 — Duct, Heater TO Register, NO.2
55084-02160 Duct, Heater TO Register, NO.2
2012-10 → 2015-05 ended
ZRE181 —
55084-02370 Duct, Heater TO Register, NO.2
2015-05 → —
ZRE181 —
55950G — Nozzle Assy, Defroster
55950-02260 Nozzle Assy, Defroster
2012-10 → 2015-05 ended
ZRE181 —
55950-02260 Nozzle Assy, Defroster
2015-05 → —
ZRE181 —
55979A — Cushion, Defroster Nozzle
55979-02080 Cushion, Defroster Nozzle
2012-10 → 2015-05 ended
ZRE181 —
55979-02120 Cushion, Defroster Nozzle
2015-05 → —
ZRE181 —
55990B — Nozzle Assy, Defroster, Lower
55990-02060 Nozzle Assy, Defroster, Lower
2012-10 → 2015-05 ended
ZRE181 —
55990-02060 Nozzle Assy, Defroster, Lower
2015-05 → —
ZRE181 —
87201 — Duct Sub-assy, Air, NO.1
87220-02160 Duct Sub-assy, Air, NO.1
2012-10 → 2015-05 ended
ZRE181 —
87220-02160 Duct Sub-assy, Air, NO.1
2015-05 → —
ZRE181 —
87201B — Duct Sub-assy, Air, NO.2
87211-05070 Duct Sub-assy, Air, NO.2
2012-10 → 2015-05 ended
ZRE181 —
87211-05070 Duct Sub-assy, Air, NO.2
2015-05 → —
ZRE181 —
87201F — Duct Sub-assy, Air, NO.3
87211-02540 Duct Sub-assy, Air, NO.3
2012-10 → 2015-05 ended
ZRE181 —
87211-02540 Duct Sub-assy, Air, NO.3
2015-05 → —
ZRE181 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
