Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

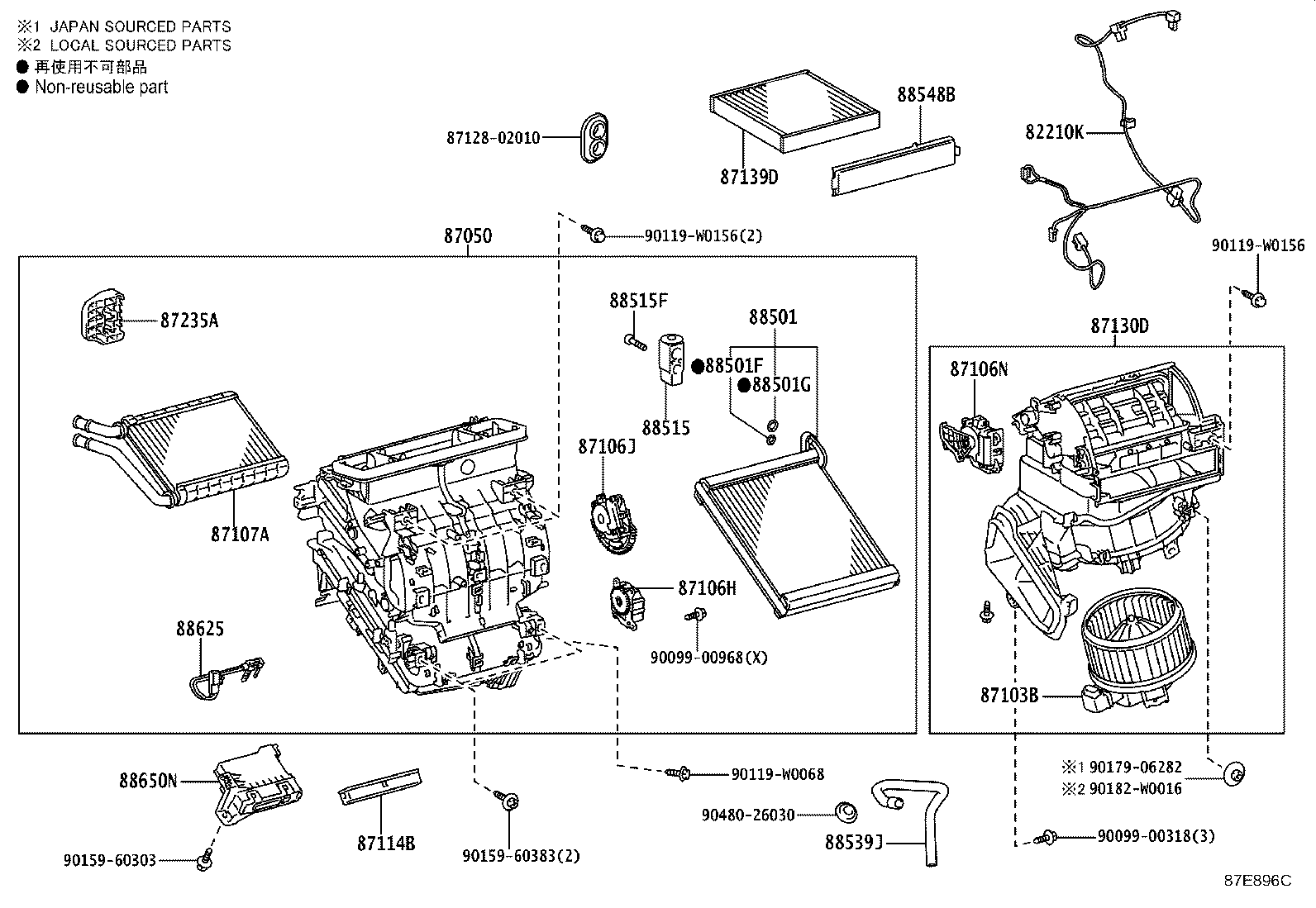

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210K — Harness Assy, Air Conditioner | ||||
| 82212-02050 |
Harness Assy, Air Conditioner
2015-05 → —
|
ZRE181 | — | |
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-02870 |
Radiator Assy, Air Conditioner
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 87050-05720 |
Radiator Assy, Air Conditioner
2015-05 → —
|
ZRE181 | — | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-02140 |
Motor Sub-assy, Blower W/Fan
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 87103-05060 |
Motor Sub-assy, Blower W/Fan
2015-05 → —
|
ZRE181 | — | |
| 87106H — Servo Sub-assy, Damper(FOR AIRMIX) | ||||
| 87106-05040 |
Servo Sub-assy, Damper(FOR AIRMIX)
2015-05 → —
|
ZRE181 | — | |
| 87106J — Servo Sub-assy, Damper(FOR MODE) | ||||
| 87106-02140 |
Servo Sub-assy, Damper(FOR MODE)
2015-05 → —
|
ZRE181 | — | |
| 87106N — Servo Sub-assy, Damper(FOR RECIRCULATION) | ||||
| 87106-02170 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2012-10 → 2013-10
ended
|
ZRE181 | — | |
| 87106-02260 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2013-11 → 2015-05
ended
|
ZRE181 | — | |
| 87106-02180 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2015-05 → —
|
ZRE181 | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-02150 |
Unit Sub-assy, Heater Radiator
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 87107-02150 |
Unit Sub-assy, Heater Radiator
2015-05 → —
|
ZRE181 | — | |
| 87114B — Cover, Heater | ||||
| 87114-02010 |
Cover, Heater
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 87114-02010 |
Cover, Heater
2015-05 → —
|
ZRE181 | — | |
| 87130D — Blower Assy | ||||
| 87130-02291 |
Blower Assy
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 87130-02B30 |
Blower Assy
2017-01 → —
|
ZRE181 | — | |
| 87130-05191 |
Blower Assy
2015-05 → 2017-01
ended
|
ZRE181 | — | |
| 87139D — Element, Air Refiner | ||||
| 87139-0D070 note |
Element, Air Refiner
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 87139-50100 note |
Element, Air Refiner
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 87139-0D070 note |
Element, Air Refiner
2015-05 → —
|
ZRE181 | — | |
| 87139-50100 note |
Element, Air Refiner
2015-05 → —
|
ZRE181 | — | |
| 87235A — Bracket, Heater Cover | ||||
| 87235-05010 |
Bracket, Heater Cover
2015-05 → —
|
ZRE181 | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-02202 |
Evaporator Sub-assy, Cooler, NO.1
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 88501-02202 |
Evaporator Sub-assy, Cooler, NO.1
2015-05 → —
|
ZRE181 | — | |
| 88501F — O-ring, Cooler Evaporator NO.1(DISCHARGE) | ||||
| 90099-14120 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 90068-14037 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2015-05 → —
|
ZRE181 | — | |
| 88501G — O-ring, Cooler Evaporator NO.1(SUCTION) | ||||
| 90099-14121 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 90068-14038 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2015-05 → —
|
ZRE181 | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-02520 |
Valve, Cooler Expansion
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 88515-68010 |
Valve, Cooler Expansion
2015-05 → —
|
ZRE181 | — | |
| 88515F — Bolt(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
Bolt(FOR COOLER EXPANSION VALVE)
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 90099-04542 |
Bolt(FOR COOLER EXPANSION VALVE)
2015-05 → —
|
ZRE181 | — | |
| 88539J — Hose, Drain Cooler | ||||
| 88539-02260 |
Hose, Drain Cooler
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 88539-02260 |
Hose, Drain Cooler
2015-05 → —
|
ZRE181 | — | |
| 88548B — Case, Air Filter | ||||
| 88548-02070 |
Case, Air Filter
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 88548-02070 |
Case, Air Filter
2015-05 → —
|
ZRE181 | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-02110 |
Thermistor, Cooler, NO.1
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2015-05 → —
|
ZRE181 | — | |
| 88650N — Amplifier Assy, Air Conditioner | ||||
| 88650-02360 |
Amplifier Assy, Air Conditioner
2012-10 → 2015-05
ended
|
ZRE181 | — | |
| 88650-02E70 |
Amplifier Assy, Air Conditioner
2015-05 → 2016-07
ended
|
ZRE181 | — | |
| 88650-02J80 |
Amplifier Assy, Air Conditioner
2016-07 → 2017-06
ended
|
ZRE181 | — | |
| 88650-02M60 |
Amplifier Assy, Air Conditioner
2017-07 → —
|
ZRE181 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
