Toyota Auris (UKP)

2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

26 part groups · 2 illustrations

Illustrations

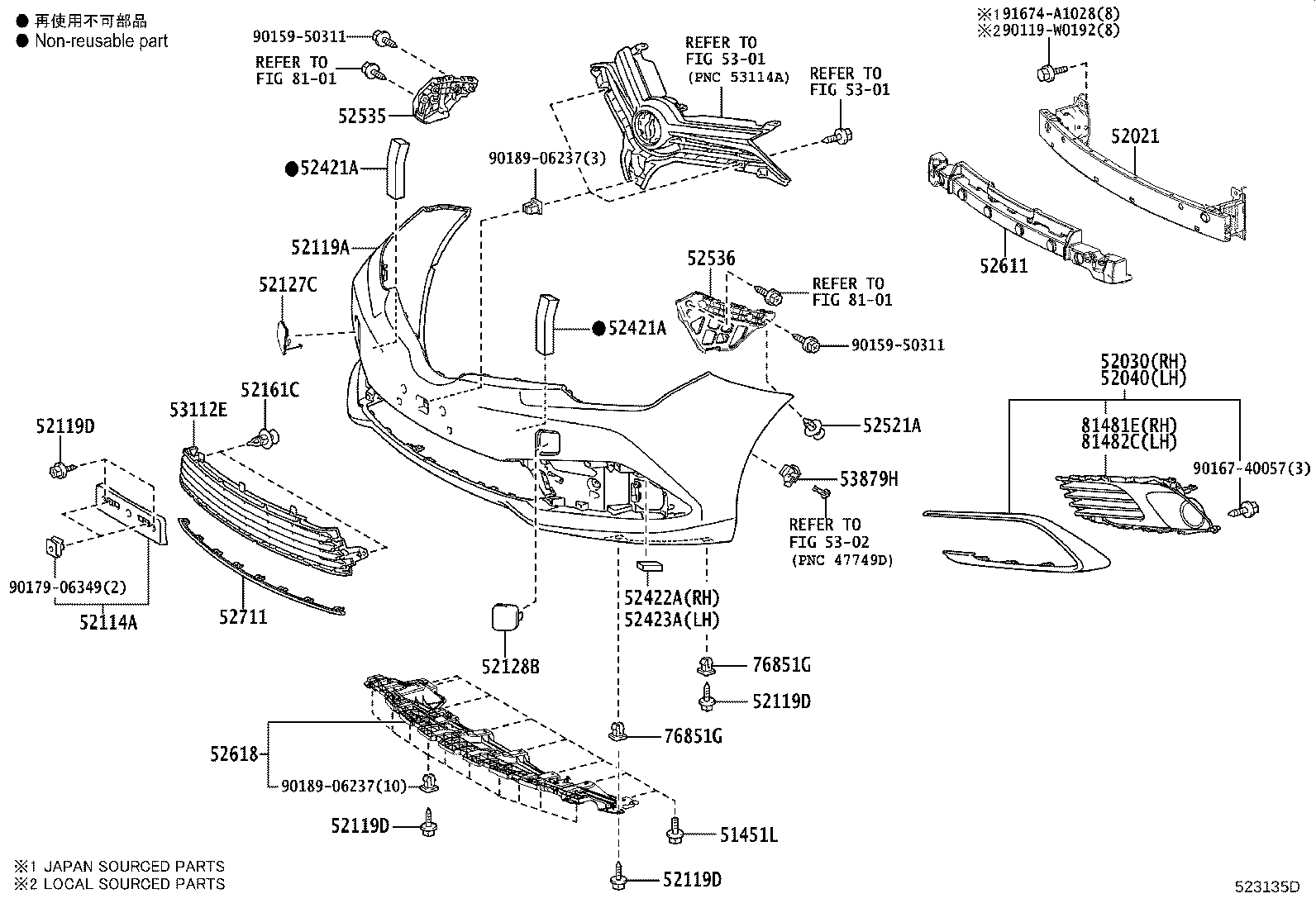

Figure 522724A 522724A 2012-10 → 2015-05 Figure 523135D 523135D 2015-05 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52112C Extension, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52128B Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52421A Pad, Front Bumper
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
