Toyota Auris (UKP)

2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

10 part groups · 2 illustrations

Illustrations

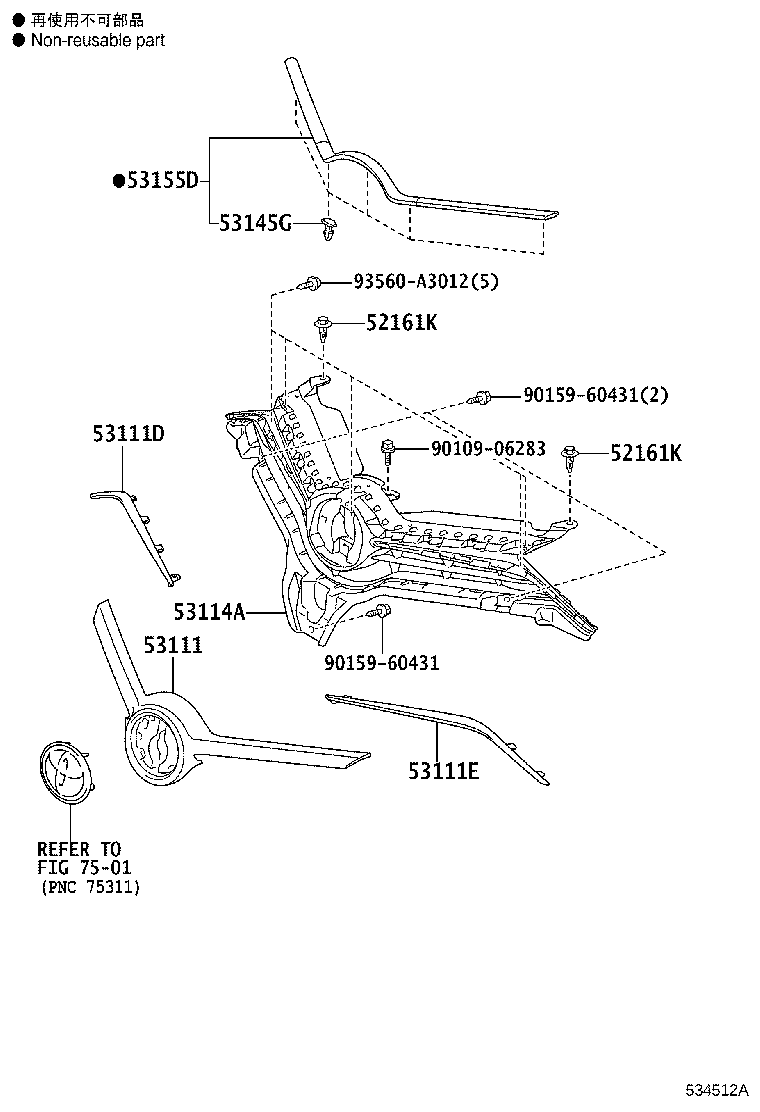

Figure 533840A 533840A 2012-10 → 2015-05 Figure 534512A 534512A 2015-05 → —

Part groups

PNCDescription
52161K Piece, Front Bumper
52161R Piece, Front Bumper
53111 Grille, Radiator
53111D Moulding, Radiator Grille, RH
53111E Moulding, Radiator Grille, LH
53114A Grille, Radiator, Inner
53121F Moulding, Radiator Grille, Upper RH
53124C Moulding, Radiator Grille, Upper LH
53145G Clip, Radiator Grille
53155D Seal, Radiator Grille, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
