Toyota Auris (UKP)

2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 2 illustrations

Illustrations

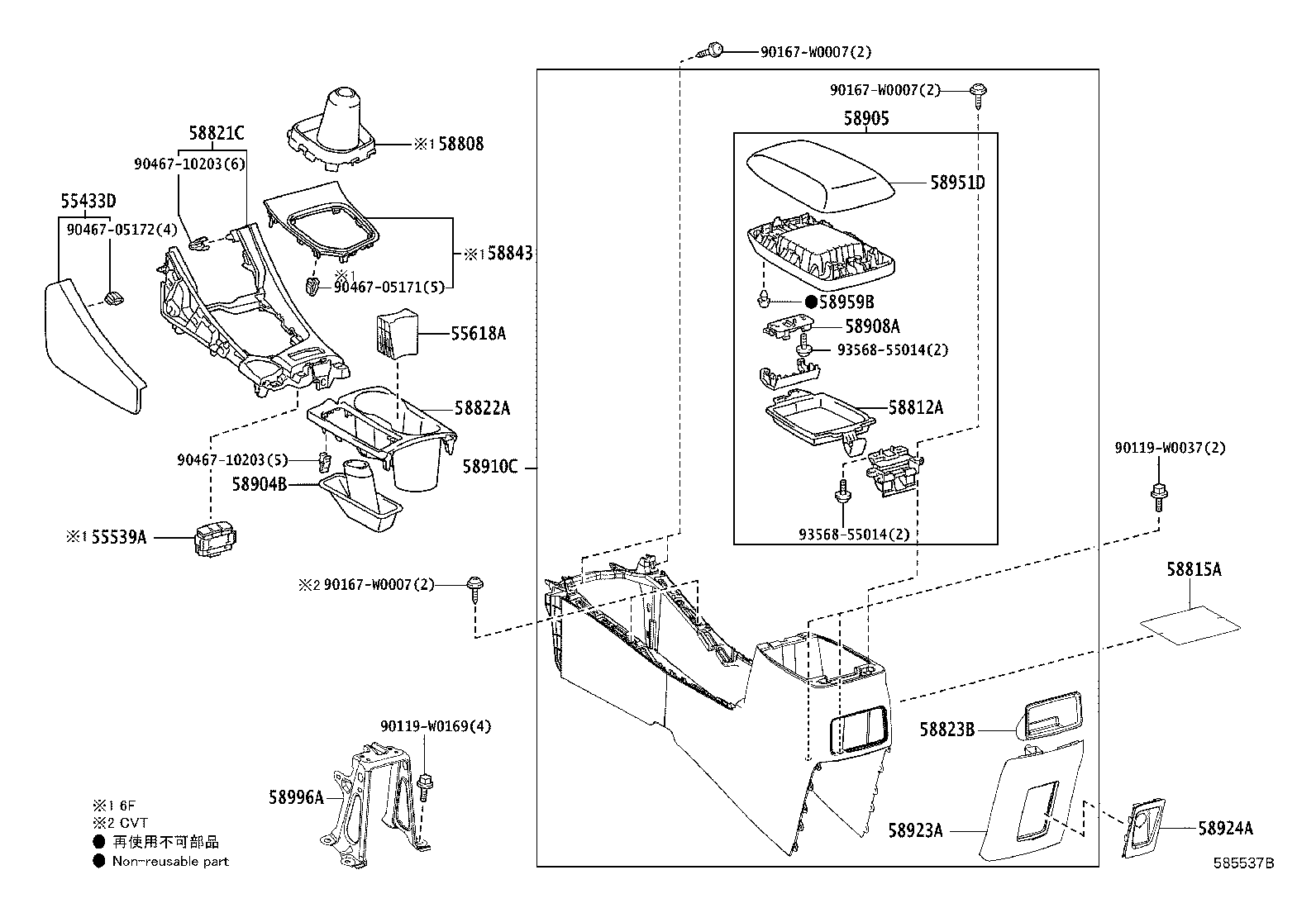

Figure 584701B 584701B 2012-10 → 2015-05 Figure 585537B 585537B 2015-05 → —

Part groups

PNCDescription
55433D Panel, Instrument Panel Finish, Lower NO.2
55539A Cover, Spare Switch Hole
55618A Holder, Console Box Cup
58808 Cover Sub-assy, Shifting Hole
58812A Box, Console, Lower
58815A Carpet, Console Box
58821C Panel, Console, Upper
58822A Panel, Console, Upper Rear
58823B Box, Console Compartment
58843 Bezel, Shifting Hole
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58923A Panel, Console Rear End
58924A Panel, Console Rear End, NO.2
58951D Door, Console Compartment, Outer
58959B Cushion, Console Compartment Door
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
