Toyota Auris (UKP)

2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

5 part groups · 2 illustrations

Illustrations

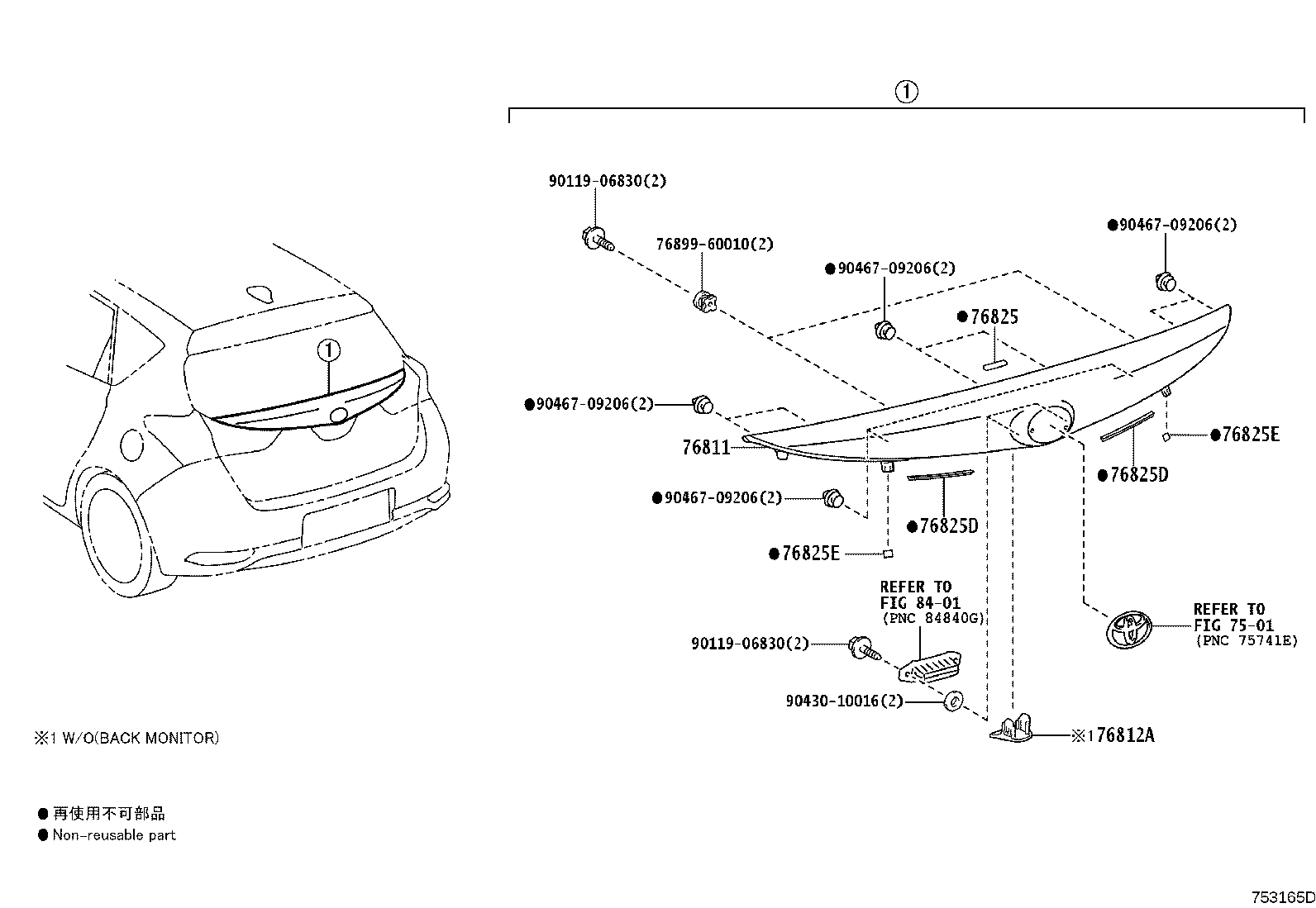

Figure 752764E 752764E 2012-10 → 2015-05 Figure 753165D 753165D 2015-05 → —

Part groups

PNCDescription
76811 Garnish, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
76825 Protector, Back Door Outside Garnish
76825D Protector, Back Door Outside Garnish, NO.1
76825E Protector, Back Door Outside Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
