Toyota Auris (UKP)

2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

2 part groups · 2 illustrations

Illustrations

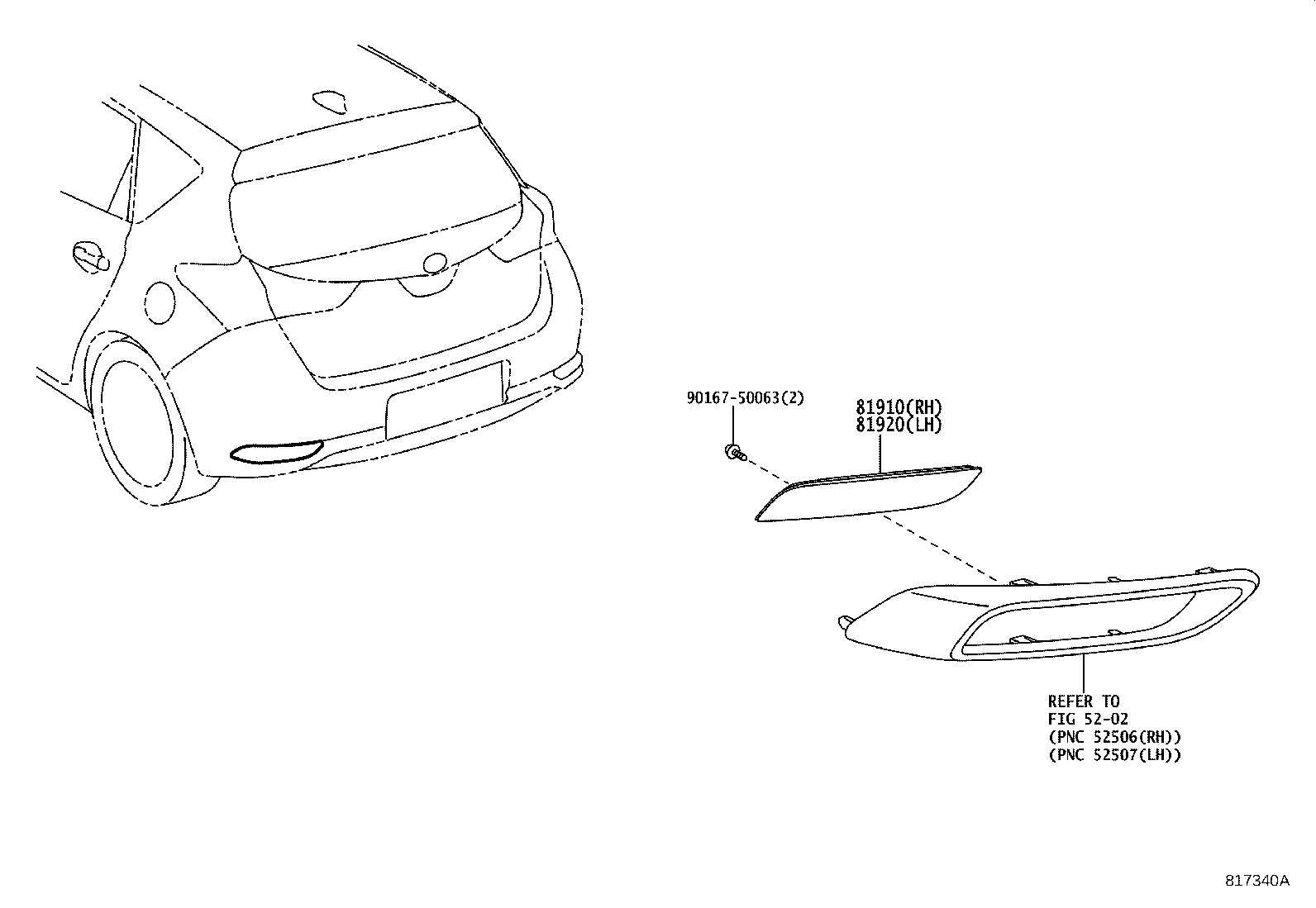

Figure 816313C 816313C 2012-10 → 2015-05 Figure 817340A 817340A 2015-05 → —

Part groups

PNCDescription
81910 Reflector Assy, Reflex, RH
81920 Reflector Assy, Reflex, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
