Antenna

5 part groups · 2 illustrations

Illustrations

Figure 865234A

865234A 2012-10 → 2015-05

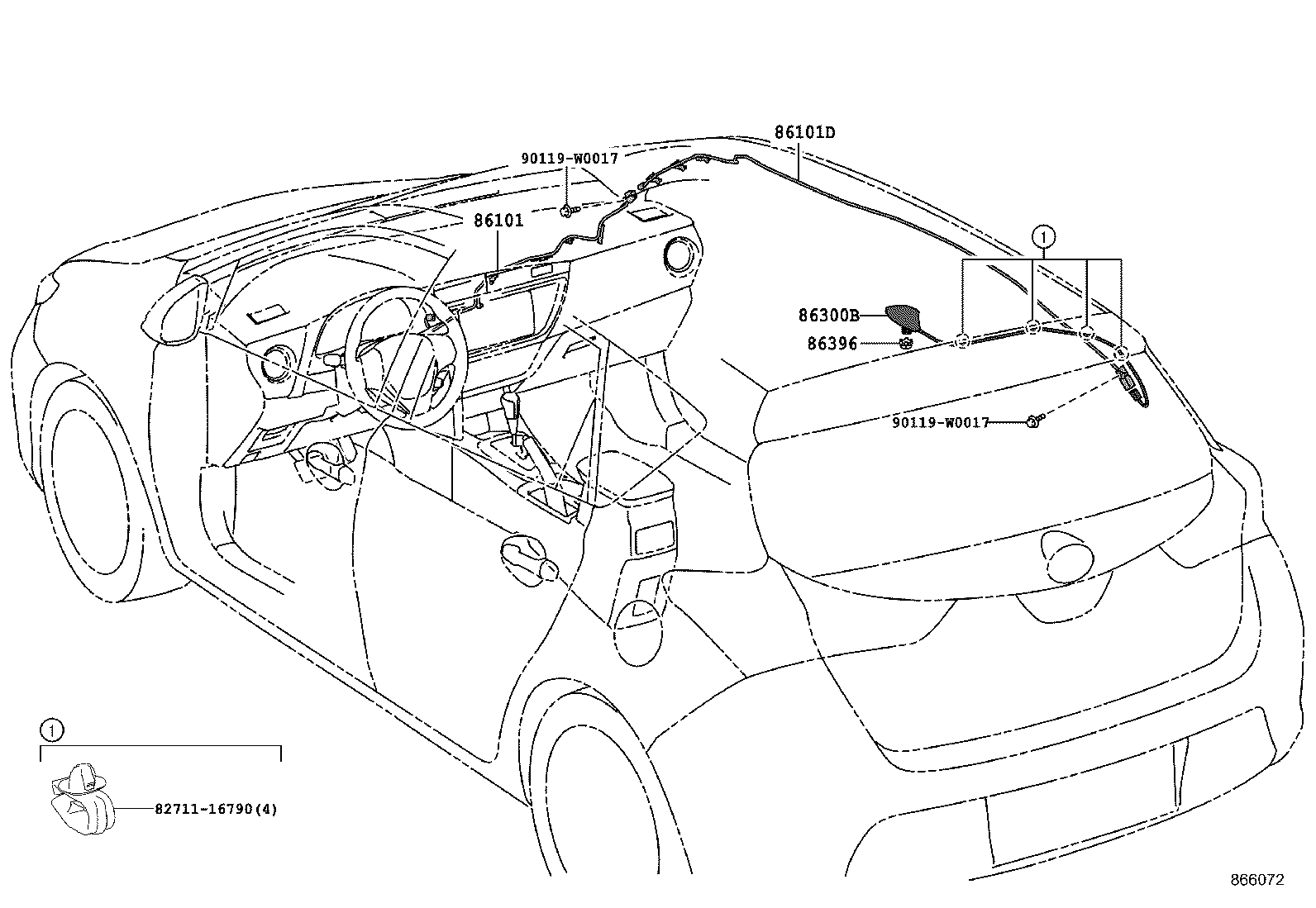

866072 2015-05 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86300B	Antenna Assy, Amplifier, NO.1
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
