Toyota Wish

2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 2 illustrations

Illustrations

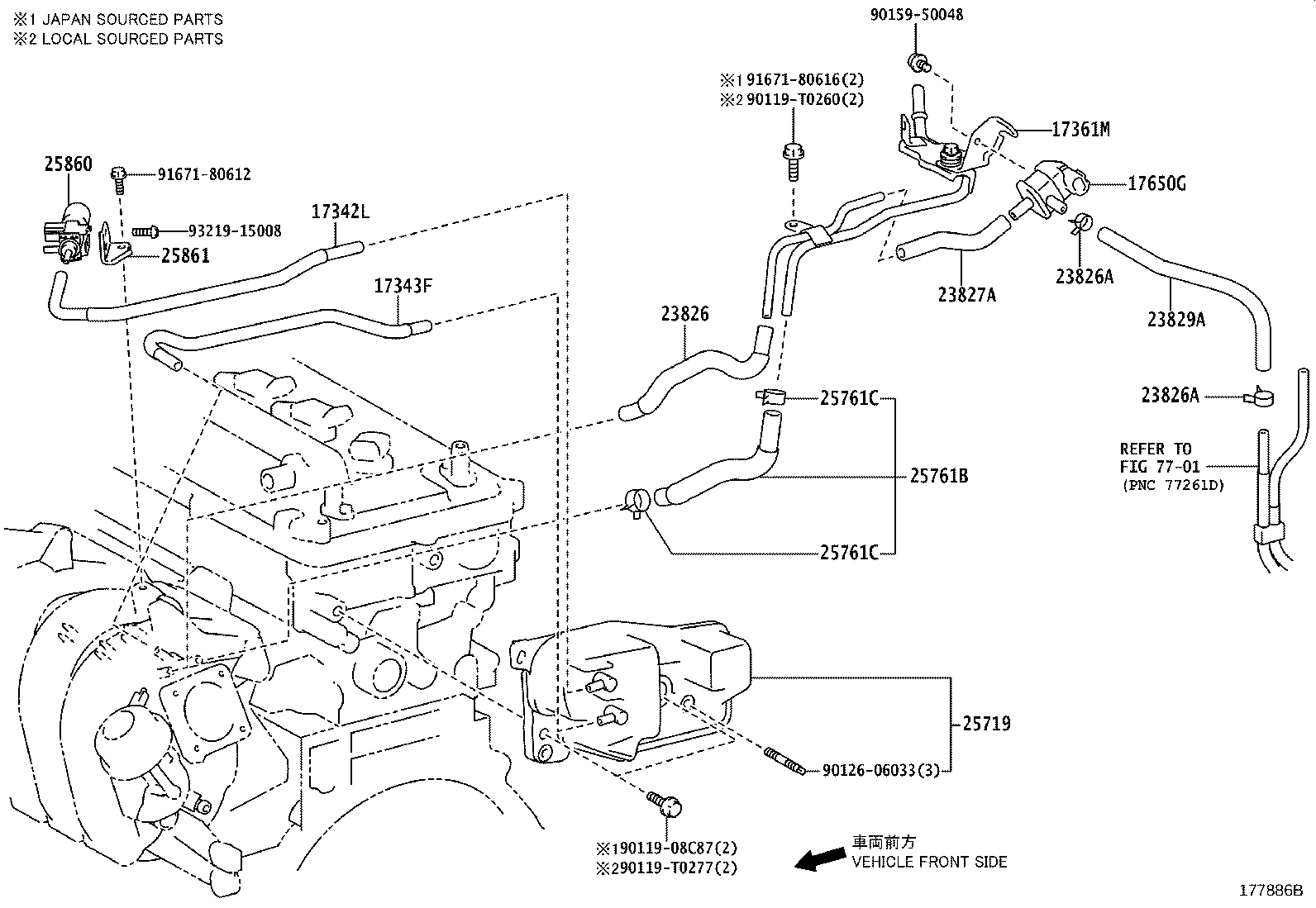

Figure 176624A 176624A 2009-11 → 2012-12 Figure 177886B 177886B 2012-12 → —

Part groups

PNCDescription
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17361M Tube, Air
17650G Valve, Duty Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25719 Tank, Vacuum Surge
25761B Hose, Vaccum Transmitting, NO.1
25761C Clip(VACCUM TRANSMITTING HOSE NO.1)
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
