Toyota Wish
2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General
Discontinued model
Data version 2016-12

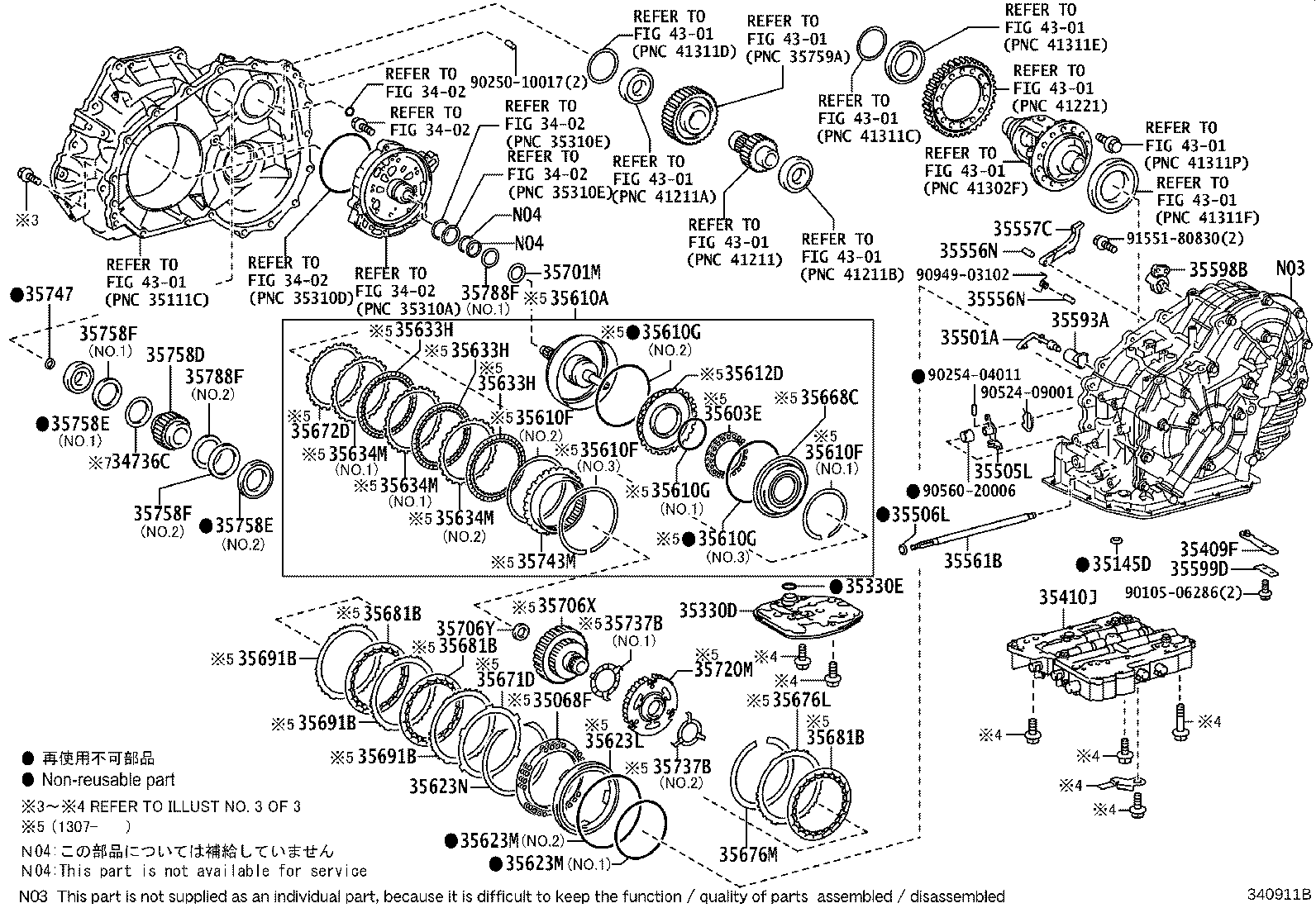

Transaxle Assy(CVT)
66 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 30400 | Transaxle Assy, Continuously Variable |

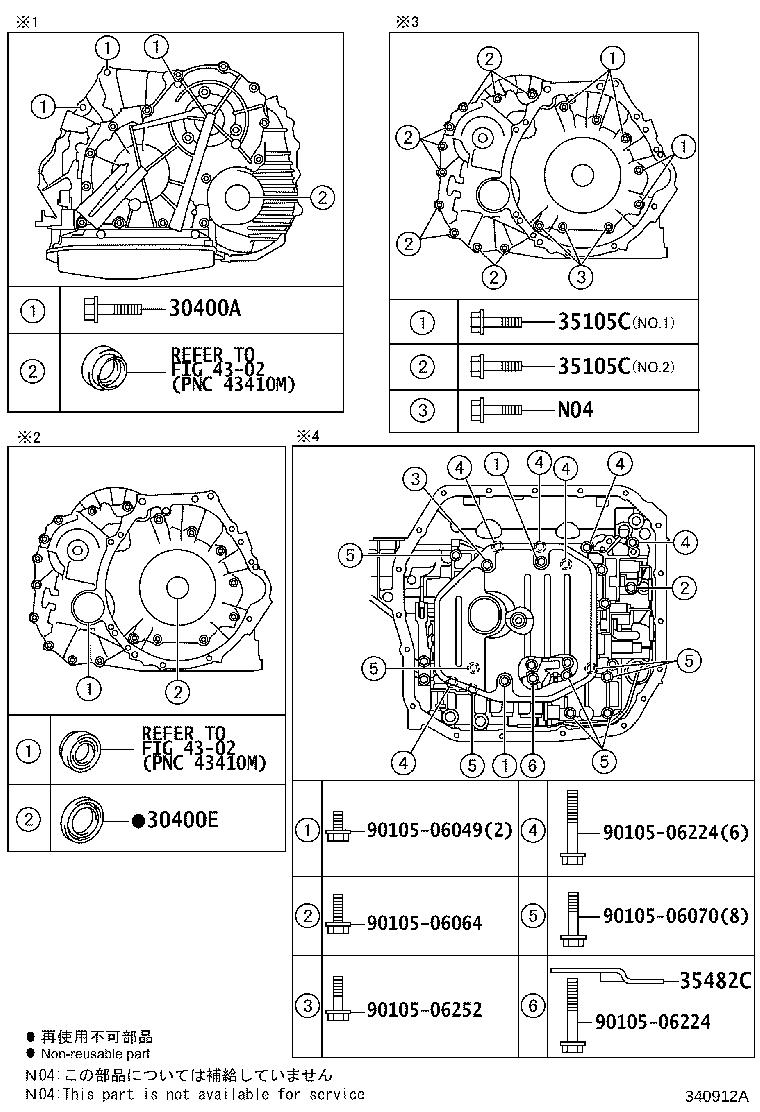

| 30400A | Bolt(FOR TRANSAXLE & ENGINE SETTING) |
| 30400E | Seal, Type T Oil(FOR CVT OIL PUMP) |
| 30400N | Plug, Refill(CVT) |
| 30400P | Gasket, Refill Plug(CVT) |
| 34736C | Race, Thrust Bearing Underdrive, NO.2 |
| 35012B | Hose Sub-assy, Transmission Breather |
| 35068F | Spring Sub-assy, Reverse Brake Return |
| 35105C | Bolt(FOR TRANSAXLE HOUSING & CASE SET) |
| 35106L | Pan Sub-assy, Transaxle Oil(CVT) |
| 35106P | Bolt(FOR TRANSAXLE OIL PAN) |
| 35125E | Tube, Overflow(CVT) |
| 35125F | Plug, Overflow(CVT) |
| 35125G | Gasket, Overflow Plug(CVT) |
| 35141E | Ring, O(FOR BREATHER PLUG) |
| 35141F | Plug, Breather, NO.1(CVT) |
| 35145D | Gasket, Transaxle Case |
| 35150B | Plug Assy, Transmission Case |
| 35150C | Ring, O (FOR TRANSMISSION CASE PLUG) |
| 35168C | Gasket, Transaxle Oil Pan(CVT) |
| 35330D | Strainer Assy, Oil |
| 35330E | Ring, O (FOR OIL STRAINER) |
| 35394D | Magnet, Oil Cleaner(CVT) |
| 35409F | Spring Sub-assy, Manual Detent |
| 35410J | Body Assy, Transmission Valve |
| 35482C | Clamp, Temperature Sensor |
| 35501A | Rod Sub-assy, Parking Lock |
| 35505L | Lever Sub-assy, Manual Valve |
| 35506L | Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) |
| 35556N | Shaft, Parking Lock Pawl |
| 35557C | Pawl, Parking Lock |
| 35561B | Shaft, Manual Valve Lever |
| 35572C | Lever, Transmission Control Shaft |
| 35593A | Sleeve, Cam Guide |
| 35598B | Sleeve, Parking Lock |
| 35599D | Cover, Manual Detent Spring |
| 35603E | Spring Sub-assy, Forward Clutch Return |
| 35610A | Clutch Assy, Forward Multiple Disc |
| 35610F | Ring, Snap (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35610G | Ring, O (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35612D | Piston, Forward Clutch |
| 35623L | Piston, Reverse Brake |
| 35623M | Ring, O (FOR REVERSE BRAKE PISTON) |
| 35623N | Ring, Snap (FOR REVERSE BRAKE PISTON) |
| 35633H | Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35634M | Plate, Clutch, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35668C | Balancer, Clutch, NO.1 |
| 35671D | Plate, Brake Cushion |
| 35672D | Plate, Clutch Cushion |
| 35676L | Flange, Brake |
| 35676M | Ring, Snap (FOR BRAKE FLANGE) |
| 35681B | Disc, Brake, NO.1 |
| 35691B | Plate, Brake, NO.1 |
| 35701M | Bearing, Thrust Needle Roller (FOR INPUT SHAFT) |
| 35706X | Gear Sub-assy, Planetary Sun |
| 35706Y | Bearing, Thrust Needle Roller (FOR PLANETARY SUN GEAR) |
| 35720M | Gear Assy, Planetary |
| 35737B | Washer, Planetary Carrier Thrust |
| 35743M | Gear, Planetary Ring |
| 35747 | Ring, Sheave Shaft Oil Seal |
| 35758D | Gear, Reduction Drive |
| 35758E | Bearing, Cylindrical Roller (FOR REDUCTION DRIVE GEAR) |
| 35758F | Bearing, Thrust Needle Roller (FOR REDUCTION DRIVE GEAR) |
| 35788F | Race, Thrust Bearing |
| 82125M | Wire, Transmission |
| 82125Q | Ring, O(FOR TRANSMISSION WIRE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
