Instrument Panel & Glove Compartment

36 part groups · 4 illustrations

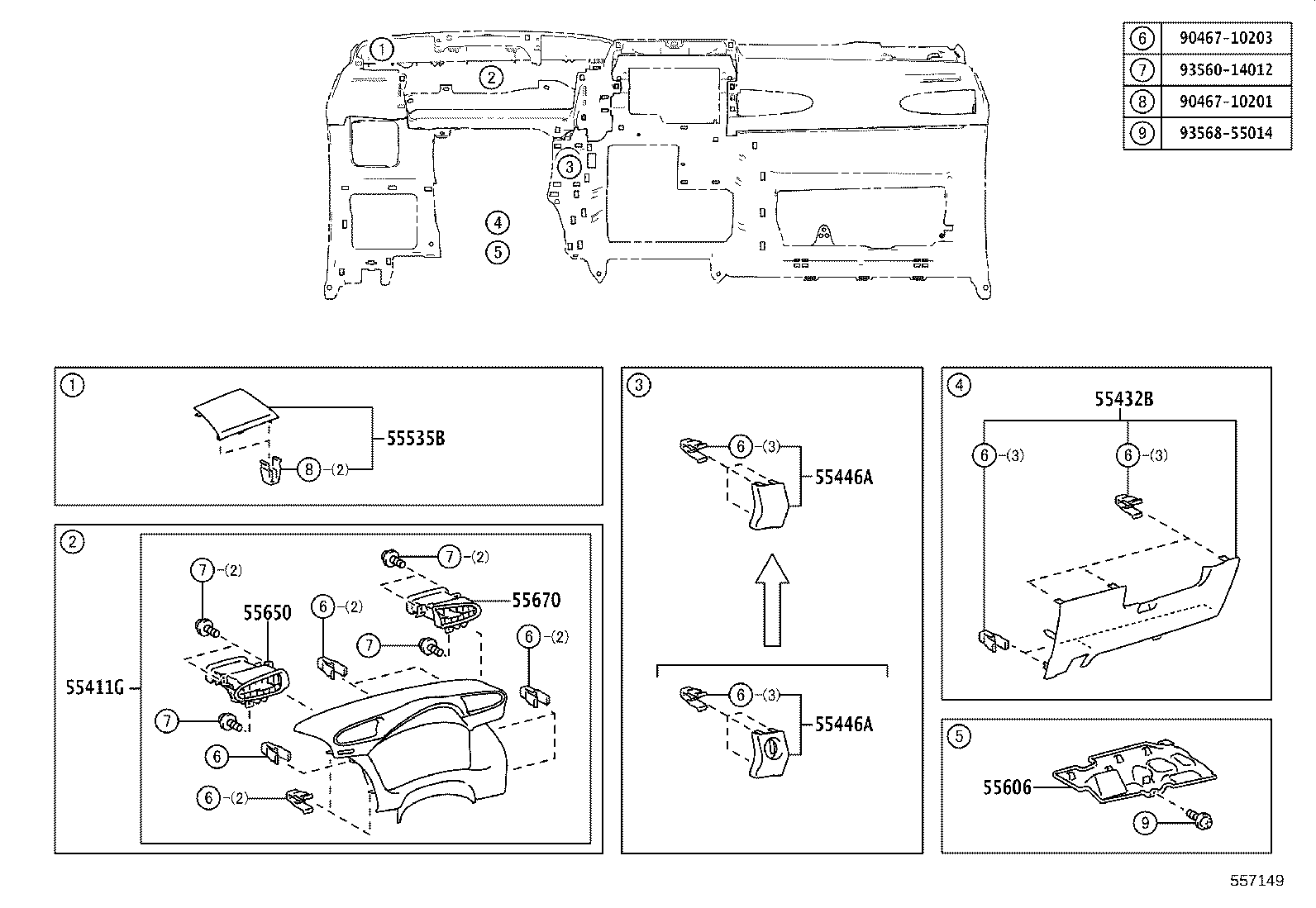

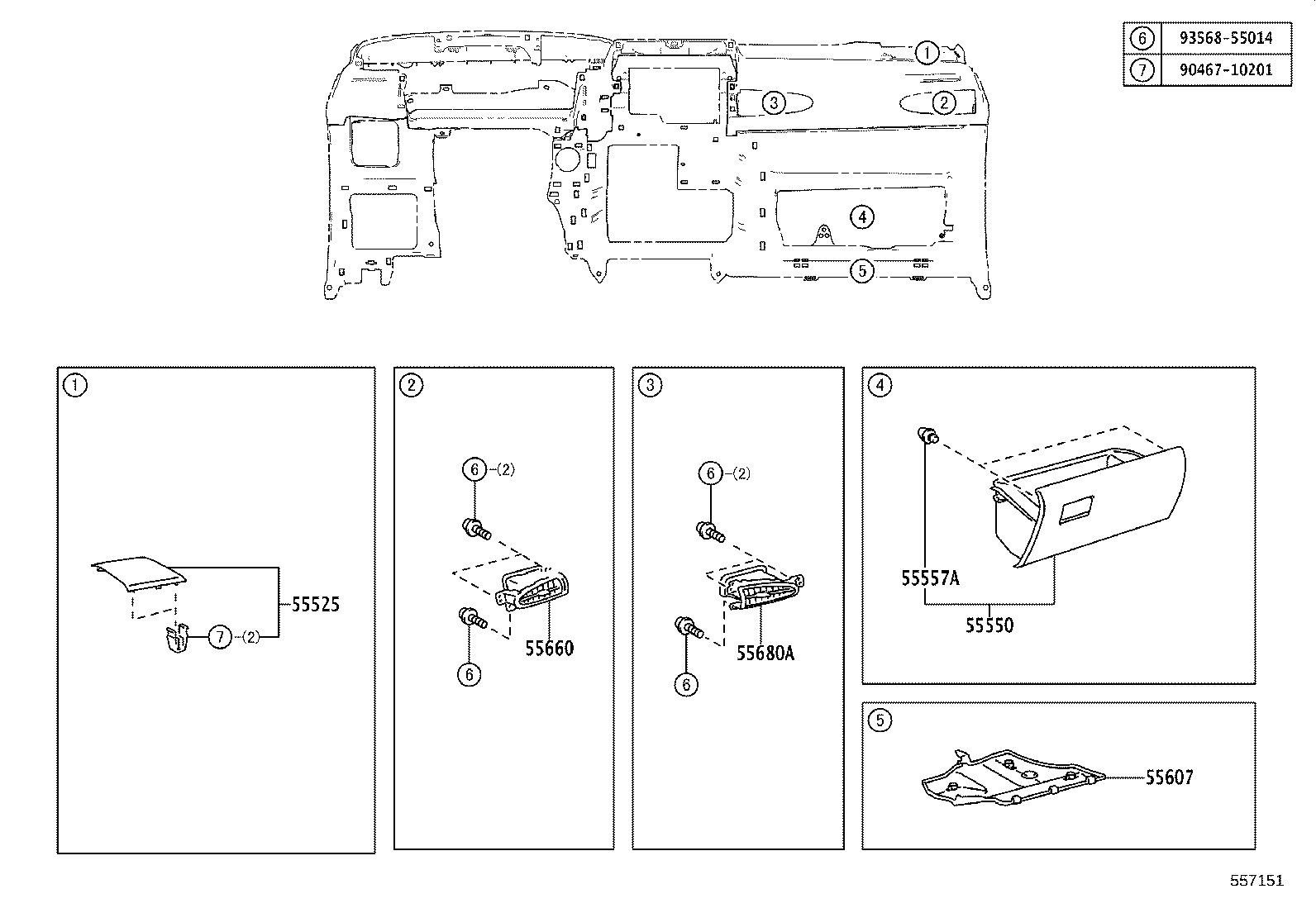

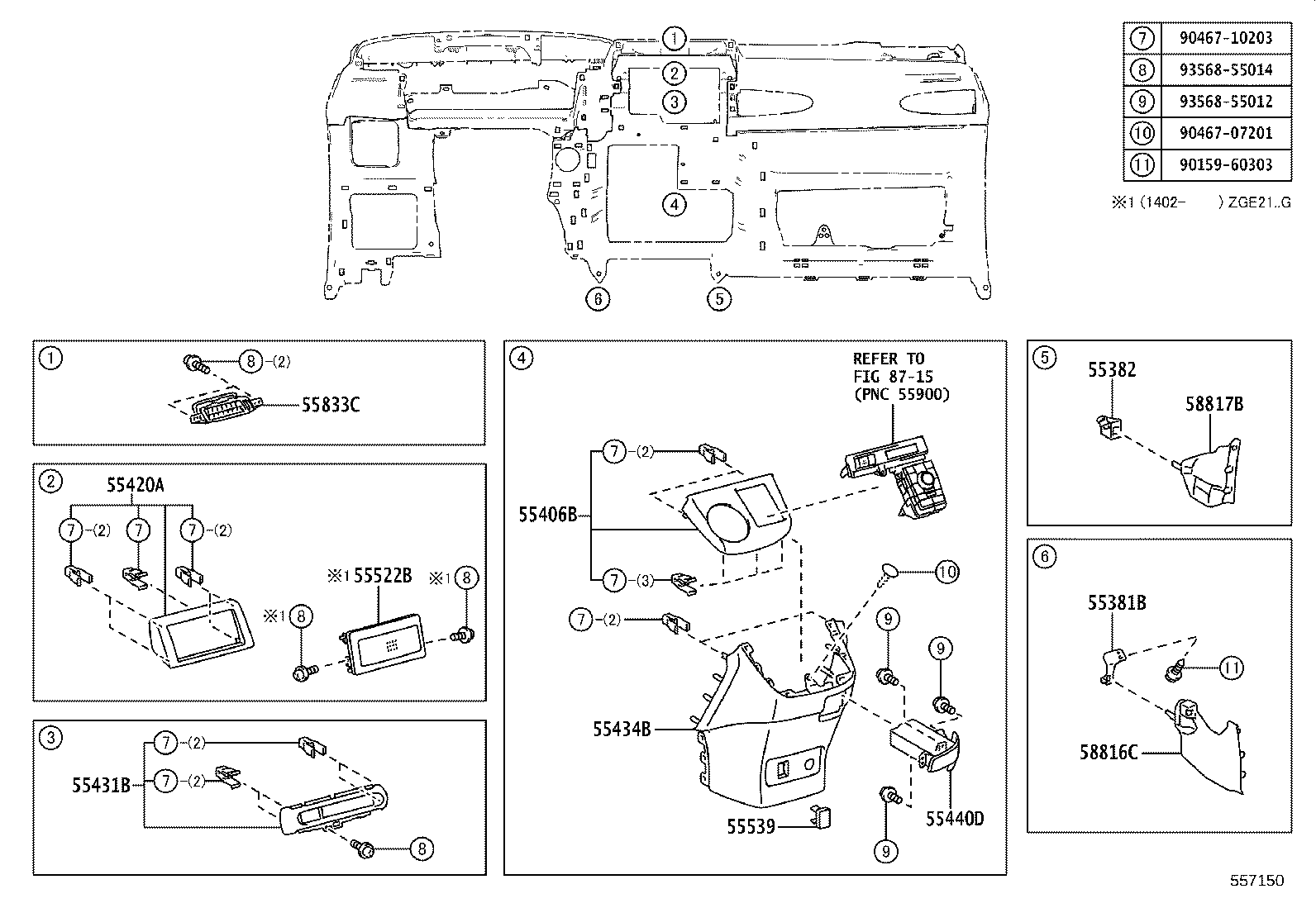

Illustrations

Part groups

PNC	Description
55054	Stopper Sub-assy, Glove Compartment Door
55302A	Panel Sub-assy, Instrument, Upper
55303B	Panel Sub-assy, Instrument, Lower
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55330B	Reinforcement Assy, Instrument Panel
55343B	Brace, Instrument Panel TO Cowl, Center
55355	Cushion, Instrument Panel, NO.1
55356C	Cushion, Instrument Panel, NO.2
55357B	Cushion, Instrument Panel, NO.3
55381B	Bracket, Finish Panel Mounting, NO.1
55382	Bracket, Finish Panel Mounting, NO.2
55406B	Panel Sub-assy, Instrument Cluster Finish, Lower Center
55411G	Panel, Instrument Cluster Finish, NO.1
55420A	Panel Assy, Instrument Cluster Finish, Center
55431B	Panel, Instrument Panel Finish, Upper
55432B	Panel, Instrument Panel Finish, Lower
55434B	Panel, Instrument Panel Finish, Lower Center
55440D	Box Assy, Instrument Panel
55446A	Base, Switch Hole, NO.1
55522B	Cover, Radio Tuner Opening
55525	Cover, Speaker Hole, NO.1
55535B	Cover, Speaker Hole, NO.2
55539	Cover, Spare Switch Hole
55550	Door Assy, Glove Compartment
55557A	Cushion, Glove Compartment Door Check
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55680A	Register Assy, Instrument Panel, NO.4
55833C	Connector, Instrument Panel Register, Center
58816C	Insert, Console Box, Front NO.1
58817B	Insert, Console Box, Front NO.2
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
