Toyota Wish

2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 2 illustrations

Illustrations

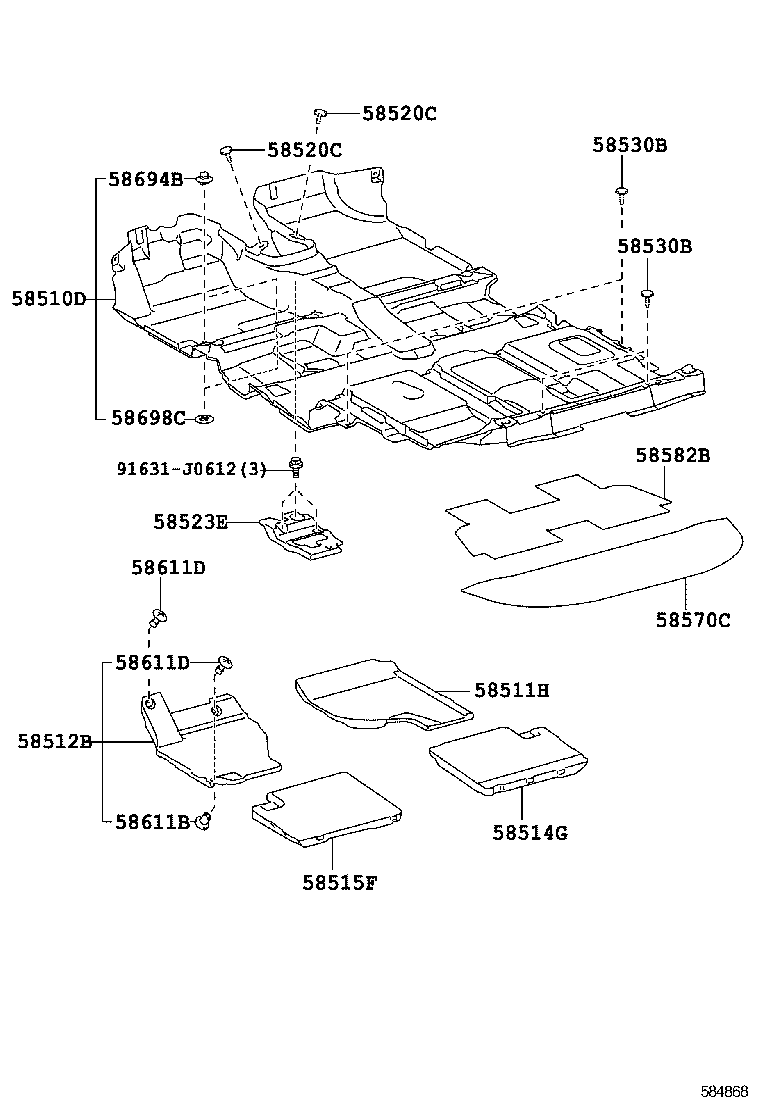

Figure 583787B 583787B 2009-11 → 2012-12 Figure 584868 584868 2012-12 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58514G Mat, Floor, Rear RH
58515F Mat, Floor, Rear LH
58520C Clip(FOR FRONT FLOOR CARPET)
58523E Bracket, Floor Carpet Set
58530B Clip(FOR FRONT FLOOR CARPET)
58570C Carpet Assy, Rear Floor
58582B Carpet, 3RD Seat Floor, NO.1
58611B Plate, Mat Set, NO.1
58611D Plate, Mat Set, NO.1 B
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
