Toyota Wish

2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 3 illustrations

Illustrations

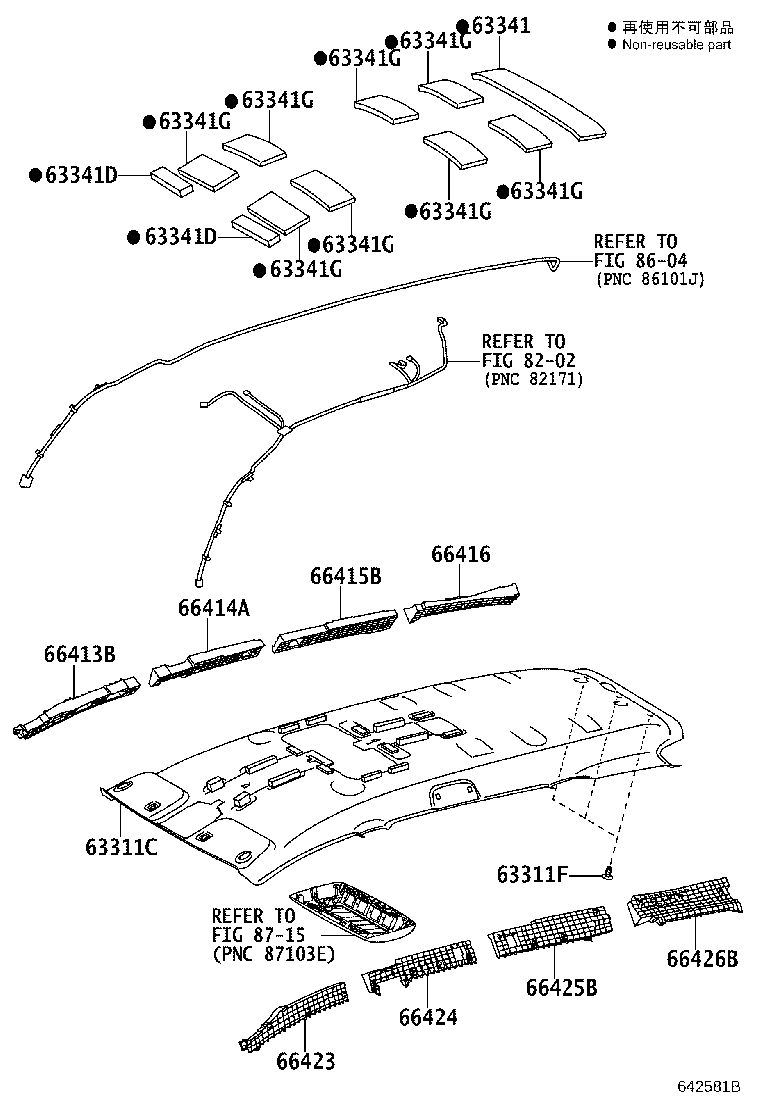

Figure 642580B 642580B 2009-11 → — Figure 642580B 642580B 2011-12 → — Figure 642581B 642581B 2009-11 → 2011-12

Part groups

PNCDescription
63311C Headlining, Roof
63311F Clip, Roof Headlining, NO.1
63341 Pad, Roof Silencer, NO.1
63341D Pad, Roof Silencer, Front
63341G Pad, Roof Silencer
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
