Toyota Wish

2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

25 part groups · 2 illustrations

Illustrations

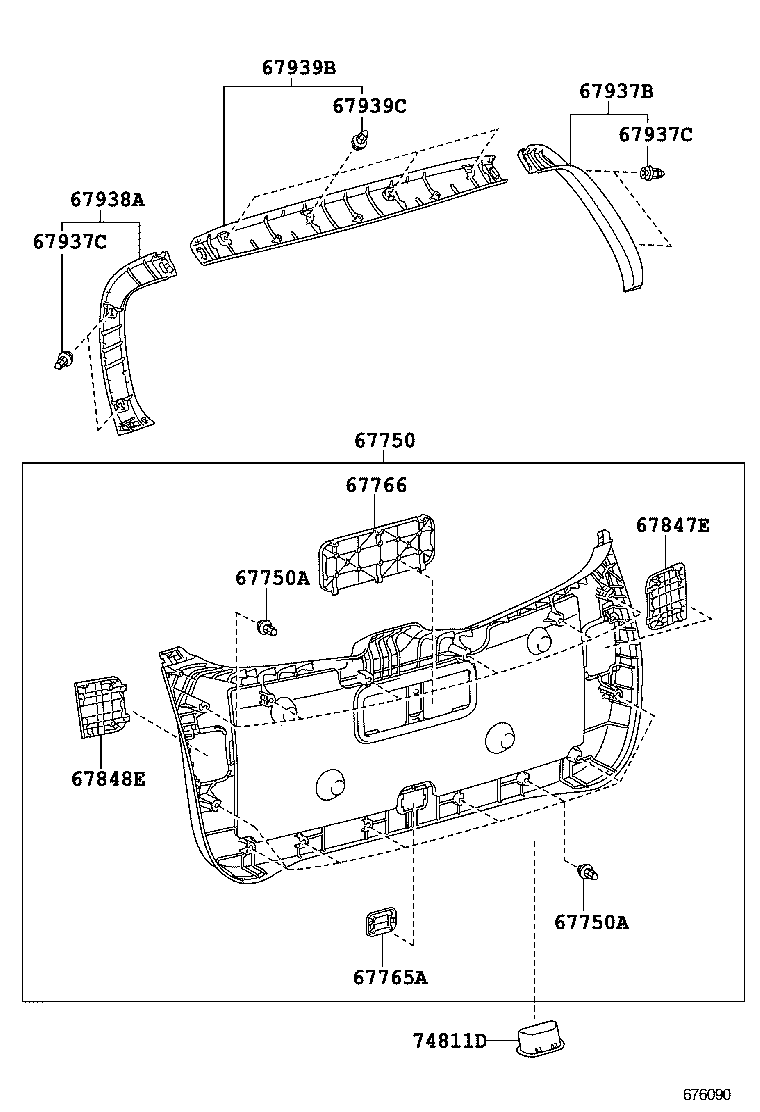

Figure 676387A 676387A 2009-11 → — Figure 676090 676090 2009-11 → —

Part groups

PNCDescription
64818B Spacer, Back Door Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
64885A Channel, Back Window Glass, RH
64886 Channel, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67293 Cushion, Back Door Lower Stopper
67372A Weight, Back Door
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67765A Cover, Back Door Service Hole, NO.1
67766 Cover, Back Door Service Hole, NO.2
67847E Cover, Back Door Service Hole, RH
67848E Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
75571F Mouldimg, Back Door Window
75573C Moulding, Back Window, Outside
75575D Moulding, Back Window, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
