Factory parts data · Europe

Toyota Wish

2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General

Discontinued model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

5 part groups · 2 illustrations

Illustrations

815039 2009-11 → 2012-12

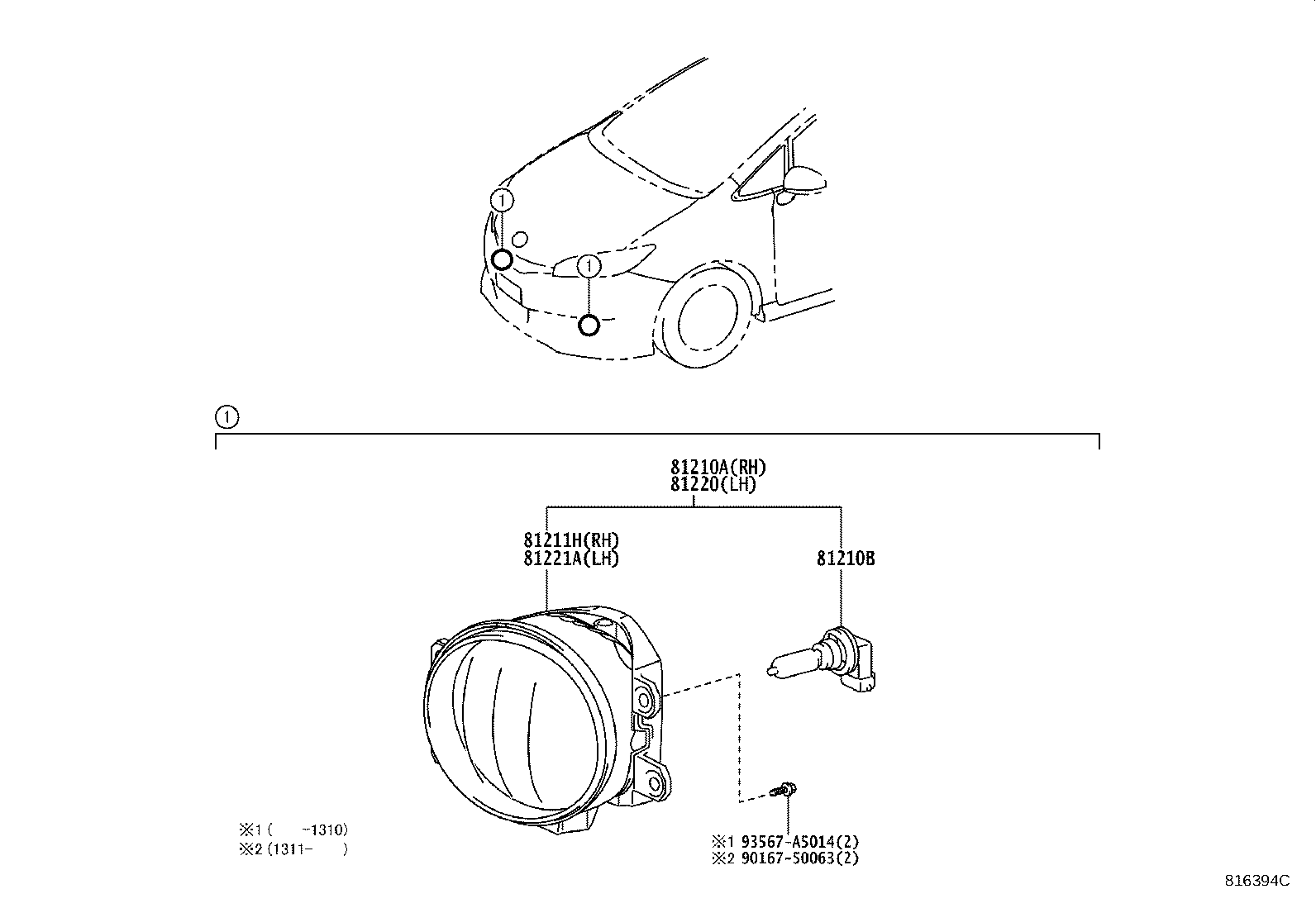

Figure 816394C

816394C 2012-12 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211H	Lens & Body, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221A	Lens & Body, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
